Data sheet: XT4W
Data sheet
XT4W 1-Gang 13A Double Pole Switched Socket
Single Switched Plug Socket
Product features
- Double pole switching isolates live and neutral for added safety
- Dual earth terminals for a secure earth connection
- Large termination points for easy wiring
- Tight tolerances for a secure plug fit
- Bevel-edge faceplate, 8mm deep with chrome screws, fits a 25mm back box
Product
- Product code
- XT4W
- Category
- Sockets
- Range
- Classic
- Finish
- Brushed Steel
- Insert / knob colour
- White Insert
- Barcode
- 5021575032277
Size and fitting

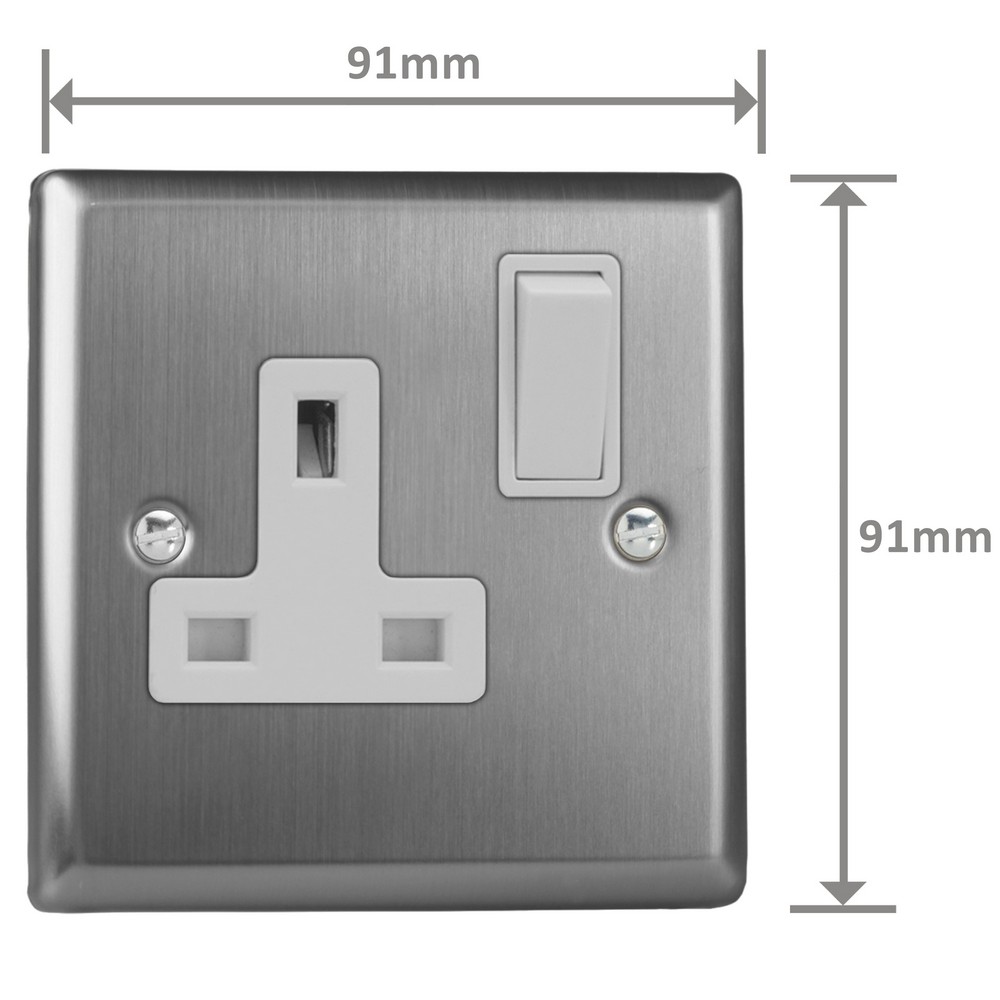

- Dimensions
- 91x91x31mm
- Faceplate depth
- 8mm
- Fixing centres
- 60.3mm
- Depth from mounting face
- 17.8mm
- Recommended back box depth
- 25mm
- Net weight
- 136g
- Gross weight
- 138g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- 13A
- Maximum current rating
- 13A
- Terminal (Live)
- 4.8mm, capacity 4 x 2.5mm²
- Terminal (Neutral)
- 4.8mm, capacity 4 x 2.5mm²
- Terminal (Earth)
- 4.8mm, capacity 4 x 2.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Product Must Be Earthed.
- Applicable safety standard
- BS 1363-2
- Commodity code
- 85366990
Classic collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Brushed Steel finish
With its clean, understated style, Brushed Steel brings effortless sophistication to any room, and is a finish chosen by designers for its versatility. Black or white inserts and rockers are available, or choose matching brushed steel rockers.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 18th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
