Data Sheet

Product Code: XT4DB

Product Description: 1-Gang 13A Double Pole Switched Socket

Range: Classic

Finish: Brushed Steel

Product Category: Sockets

Insert/Knob Colour: Brushed Steel/Black Insert

Barcode: 5021575032253

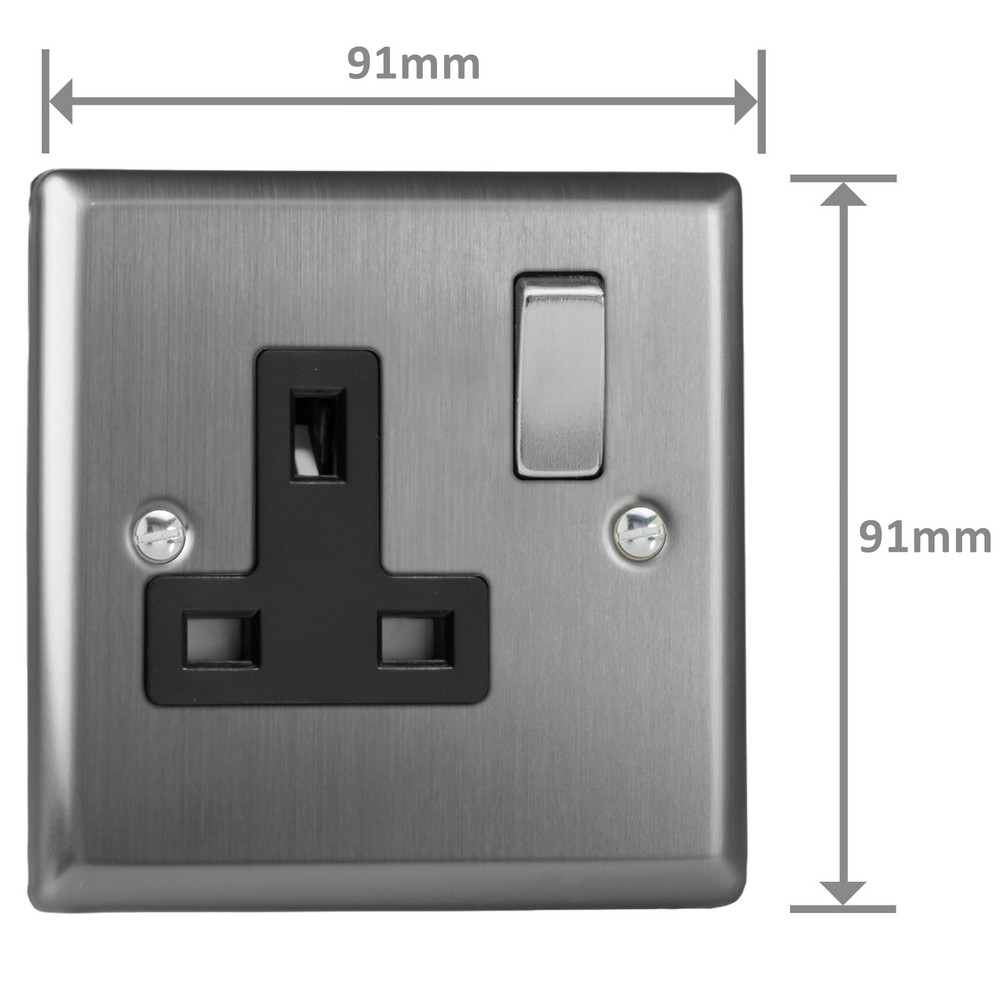

Dimensions: 91x91x31mm

Faceplate Depth: 8mm

Net Weight: 136g

Gross Weight: 138g

Fixing Centres: 60.3mm

Depth from Mounting Face: 17.8mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 13A

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2

Commodity Code: 85366990

Declaration of Conformity

Product Features

  Double pole switching isolates live and neutral for added safety

  Dual earth terminals for a secure earth connection

  Large termination points for easy wiring

  Tight tolerances for a secure plug fit

  Bevel-edge faceplate, 8mm deep with chrome screws, fits a 25mm back box

Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Brushed Steel Finish

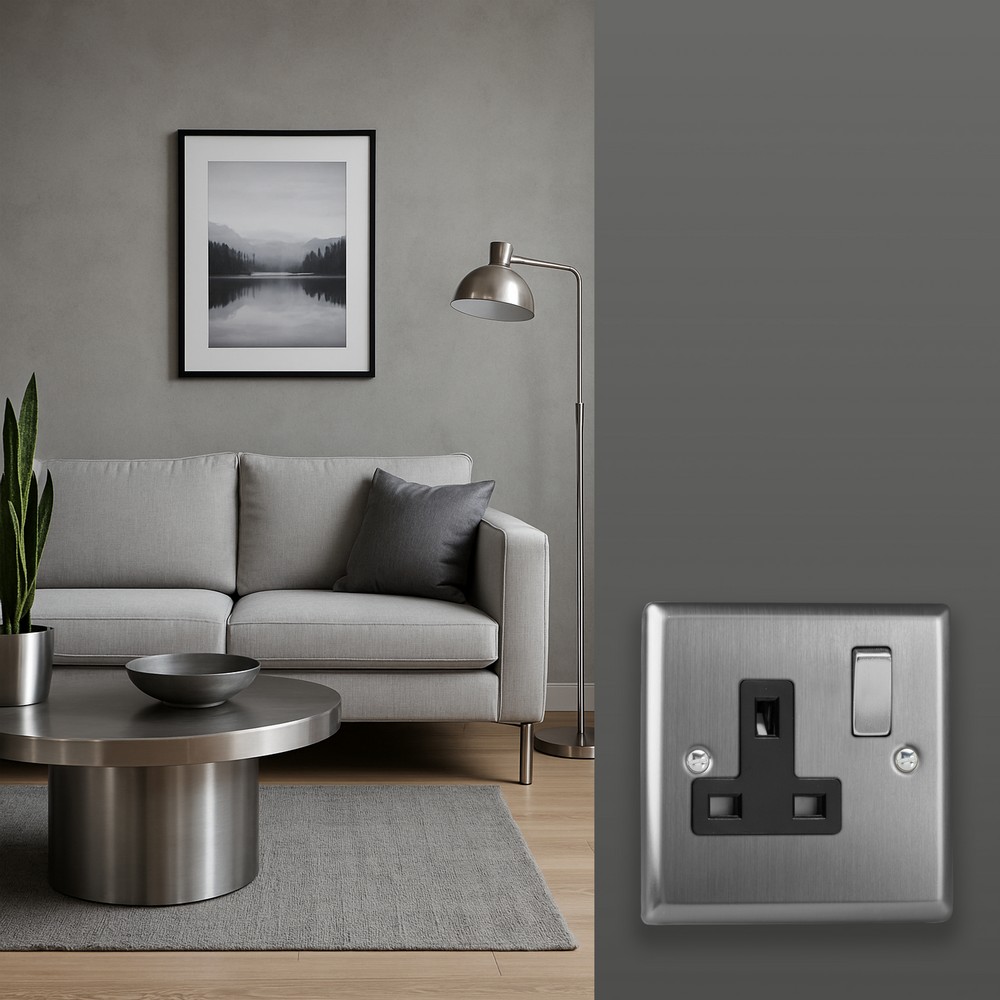

With its clean, understated style, Brushed Steel brings effortless sophistication to any room, and is a finish chosen by designers for its versatility. Black or white inserts and rockers are available, or choose matching brushed steel rockers.
