Data sheet: XB3D

Data sheet

XB3D 3-Gang 10A 1- or 2-Way Rocker Switch

Triple Rocker Light Switch 2-Way

Product features

  • 1- or 2-Way switching
  • Suitable for controlling both mains and low voltage lighting
  • 10A rated
  • Firm, positive switching action
  • Bevel-edge faceplate, 8mm deep with brass screws, fits a 16mm back box

Product

Product code
XB3D
Category
Rocker Switches
Range
Classic
Finish
Brushed Brass
Insert / knob colour
Brass Rockers
Barcode
5021575011623

Size and fitting

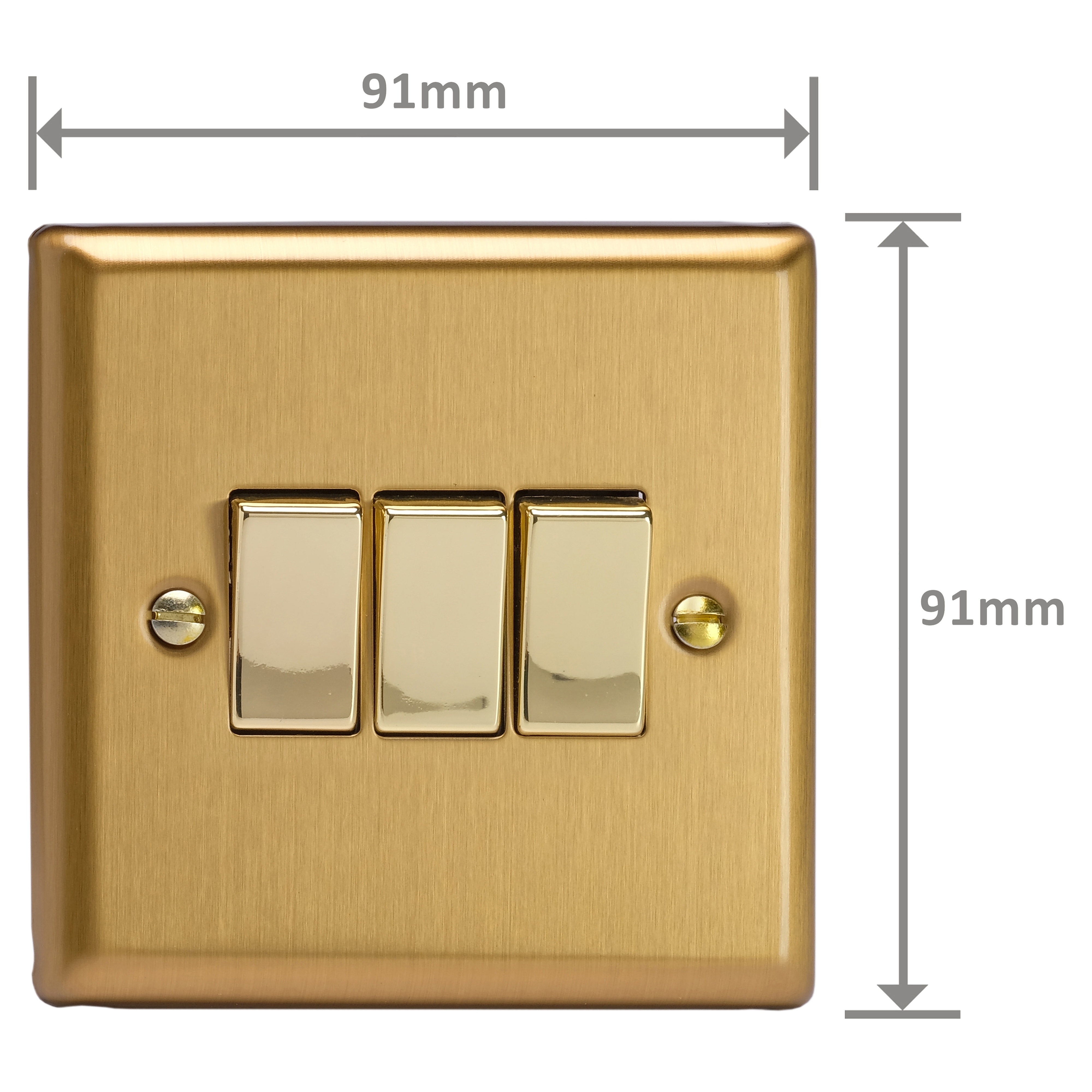

Dimensions
91x91x25mm
Faceplate depth
8mm
Fixing centres
60.3mm
Depth from mounting face
11.9mm
Recommended back box depth
16mm
Net weight
136g
Gross weight
138g

Electrical

Operating voltage
230V 50Hz
Maximum load rating
10A
Maximum current rating
10A
Terminal (Live)
3.3mm, capacity 3 x 1.5mm²
Terminal (Earth)
3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications
Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice
Product Must Be Earthed.
Applicable safety standard
BS EN 60669-1
Commodity code
85365007

Classic collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Brushed Brass finish

The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts and rockers are available, or choose polished brass rockers for an added touch of class.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 22nd November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
