Data sheet: XG3D

Data sheet

XG3D 3-Gang 10A 1- or 2-Way Rocker Switch

Triple Rocker Light Switch 2-Way

Product features

  • 1- or 2-Way switching
  • Suitable for controlling both mains and low voltage lighting
  • 10A rated
  • Firm, positive switching action
  • Bevel-edge faceplate, 7mm deep with brass screws, fits a 16mm back box

Product

Product code
XG3D
Category
Rocker Switches
Range
Classic
Finish
Georgian Brass
Insert / knob colour
Brass Rockers
Barcode
5021575750492

Size and fitting

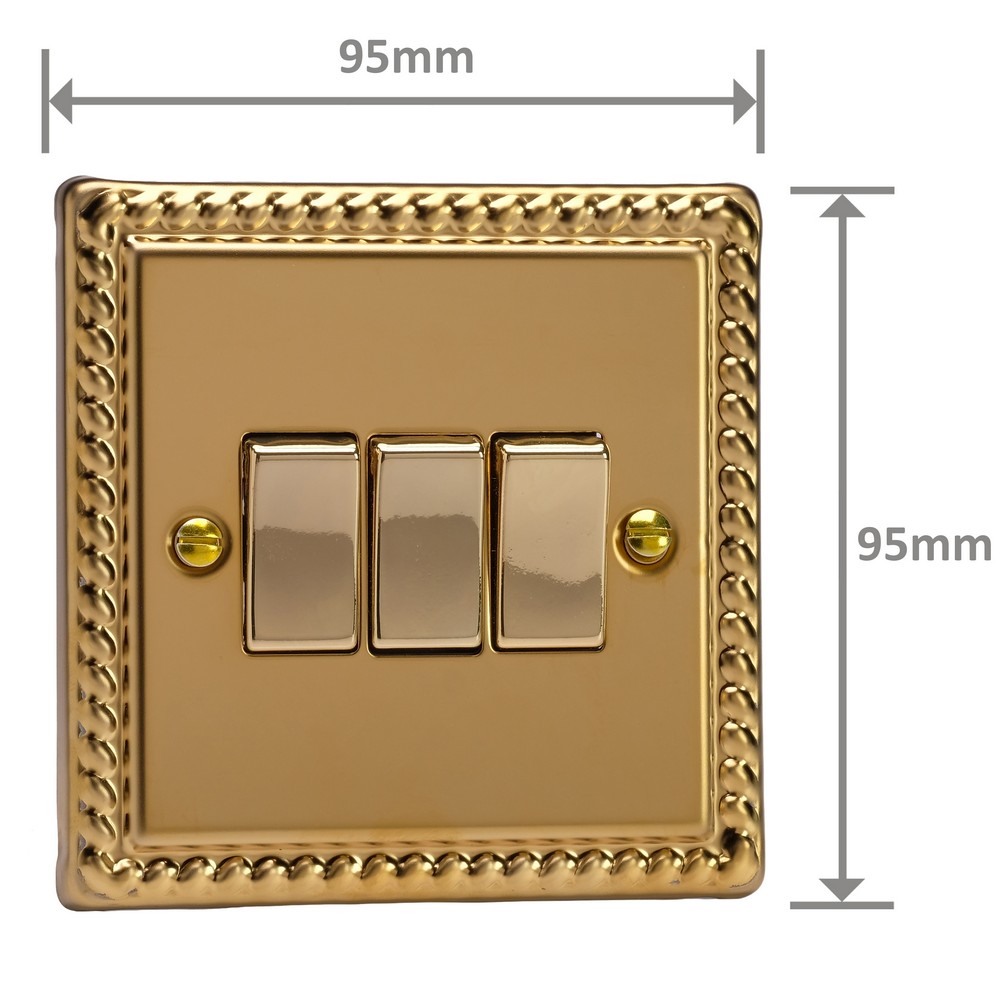

Dimensions
95x95x25mm
Faceplate depth
7mm
Fixing centres
60.3mm
Depth from mounting face
11.2mm
Recommended back box depth
16mm
Net weight
136g
Gross weight
138g

Electrical

Operating voltage
230V 50Hz
Maximum load rating
10A
Maximum current rating
10A
Terminal (Live)
3.3mm, capacity 3 x 1.5mm²
Terminal (Earth)
3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications
Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice
Product Must Be Earthed.
Applicable safety standard
BS EN 60669-1
Commodity code
85365007

Classic collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Georgian Brass finish

Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 17th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
