Click below to print the data sheet for JOP401W
Further information:
Data Sheet
Product Code: JOP401W

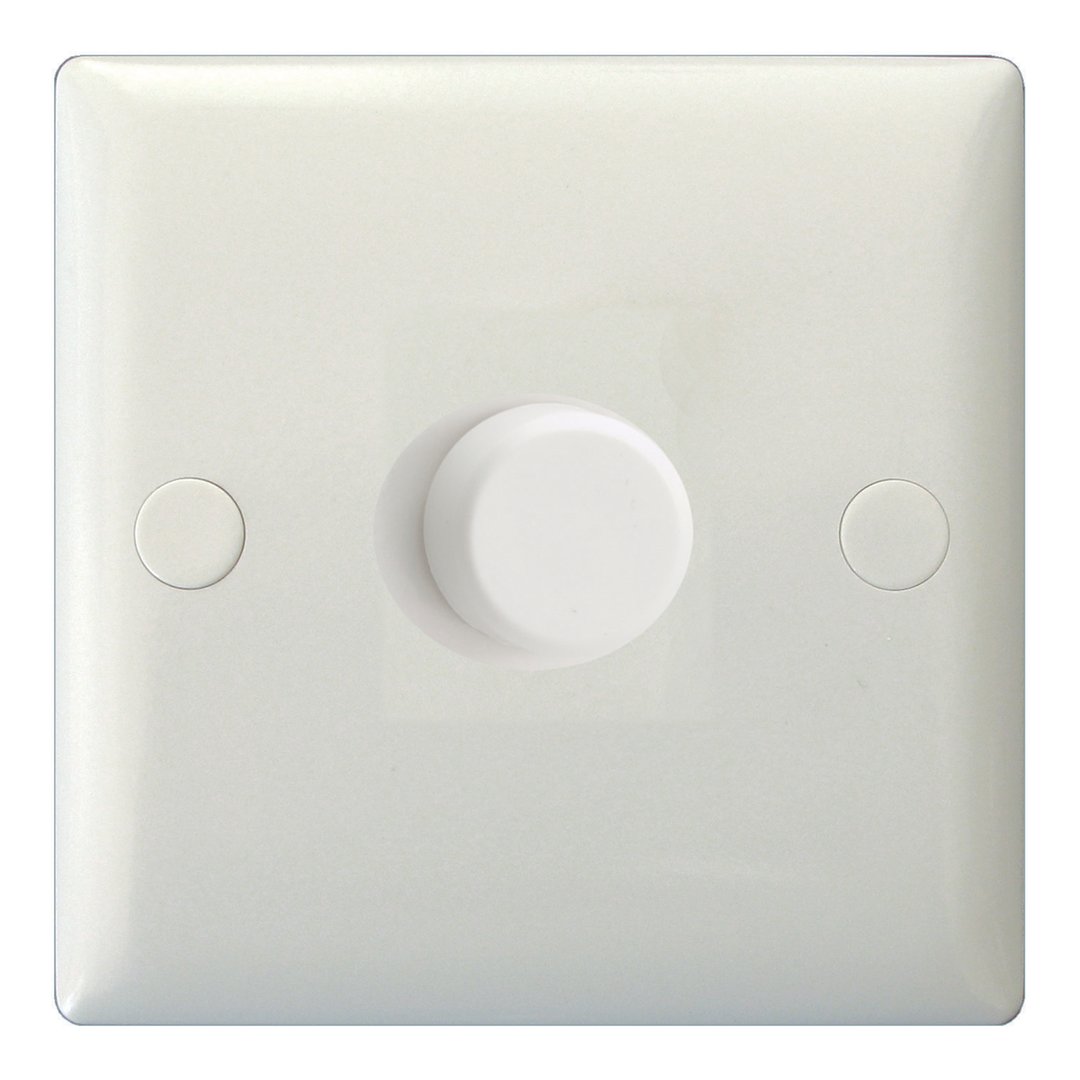

Product Description: 1-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 1 x 0-120W
Range: Value
Finish: Polar White
Product Category: LED Dimmers
Insert/Knob Colour: White Knob
Barcode: 5021575017373
Dimensions: 85x85x47mm
Faceplate Depth: 5mm
Net Weight: 86g
Gross Weight: 88g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED: 120W
Maximum Current Rating: 1.3A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
Product Features
V-Pro intelligent dimming technology
Soft start feature and intelligent overload protection
Adjustable minimum brightness setting and choice of driving modes
Durable white plastic faceplate is anti-bacterial and fully biodegradable
Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.
Polar White Finish
The Polar White plastic range offers exceptional value. Push-fit screw covers give the face plate a uncomplicated aesthetic at an affordable price point.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
17th April 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
