Data Sheet
Product Code: JDBP401S
This product can also be made using our Matrix System, using the products WDB1S + MJP120 x 1
Product Description: 1-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 1 x 0-120W
Range: Screwless
Finish: Brushed Brass
Product Category: LED Dimmers
Insert/Knob Colour: Polished Brass Knob
Barcode: 5021575361063

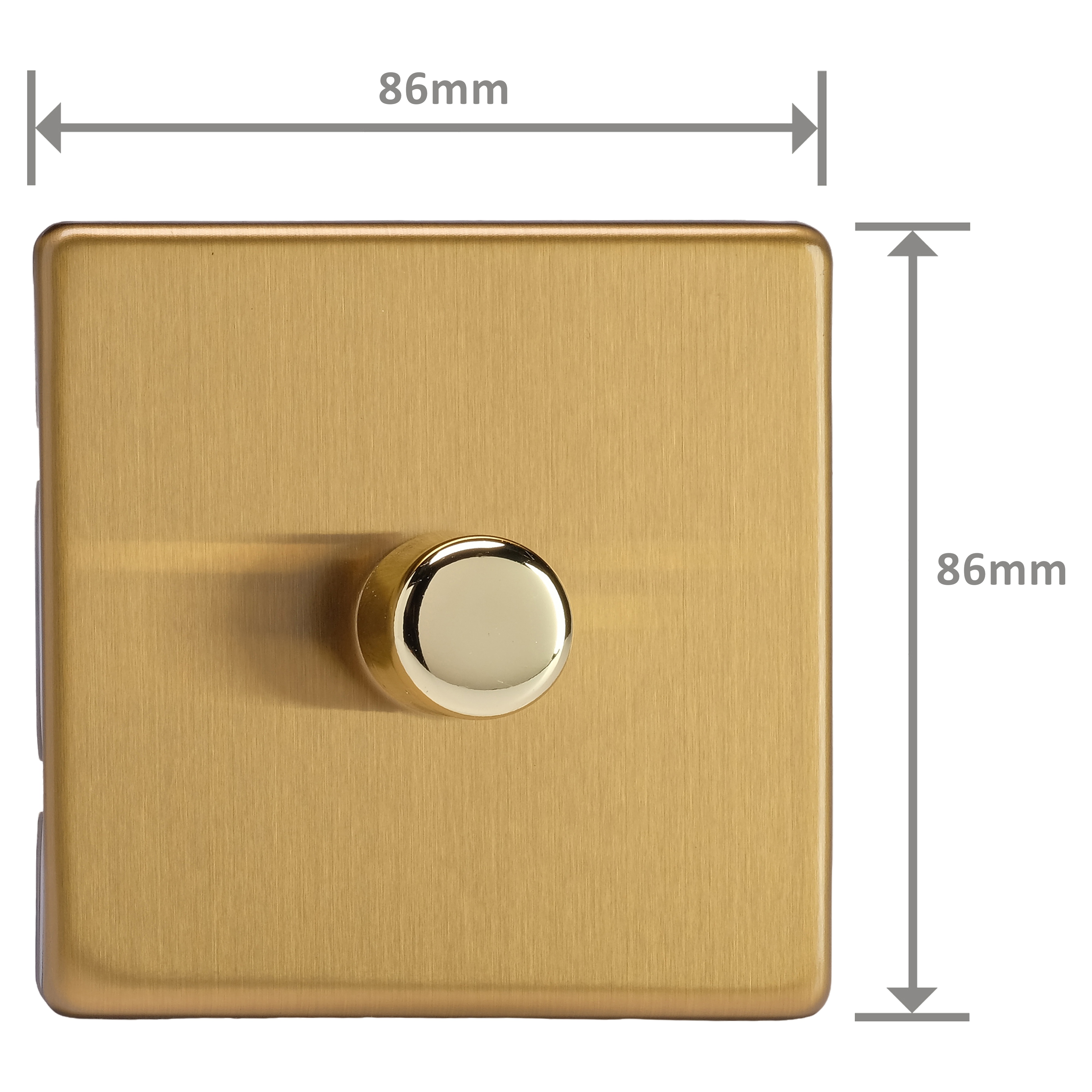

Dimensions: 86x86x48mm
Faceplate Depth: 4mm
Net Weight: 156g
Gross Weight: 158g
Fixing Centres: 60.3mm
Depth from Mounting Face: 23.6mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED; 120W
Maximum Current Rating: 1.3A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
V-Pro intelligent dimming technology
Soft start feature and intelligent overload protection
Adjustable minimum brightness setting and choice of driving modes
Sleek, low-profile screwless faceplate
Screwless Collection
Each finish is presented on low profile screwless faceplate, with hidden fixings contributing to an understated aesthetic. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.Brushed Brass Finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts are available, paired with polished brass rockers for an added touch of class. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 10th December 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
