Data Sheet
Product Code: XTTMB

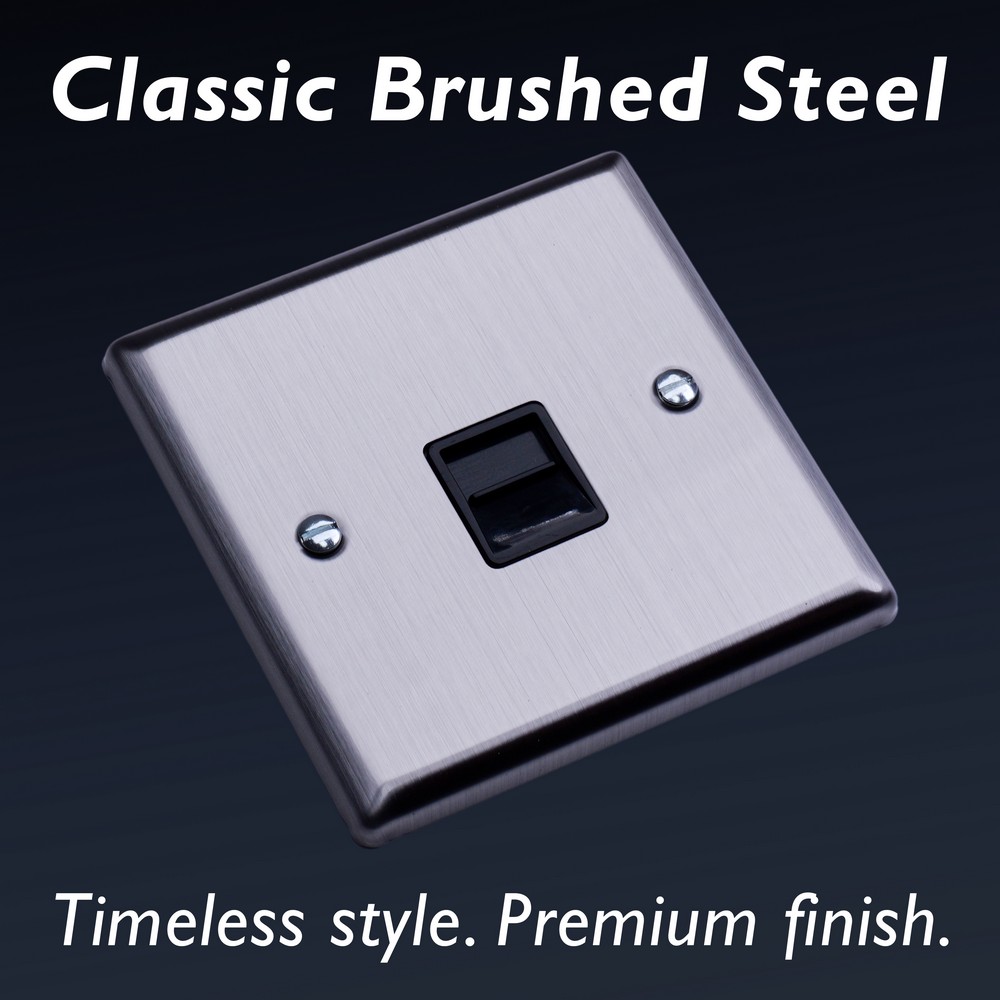

Product Description: 1-Gang Telephone Master Socket
Range: Classic
Finish: Brushed Steel
Product Category: TV and Telephone Sockets
Insert/Knob Colour: Black Insert
Barcode: 5021575033090

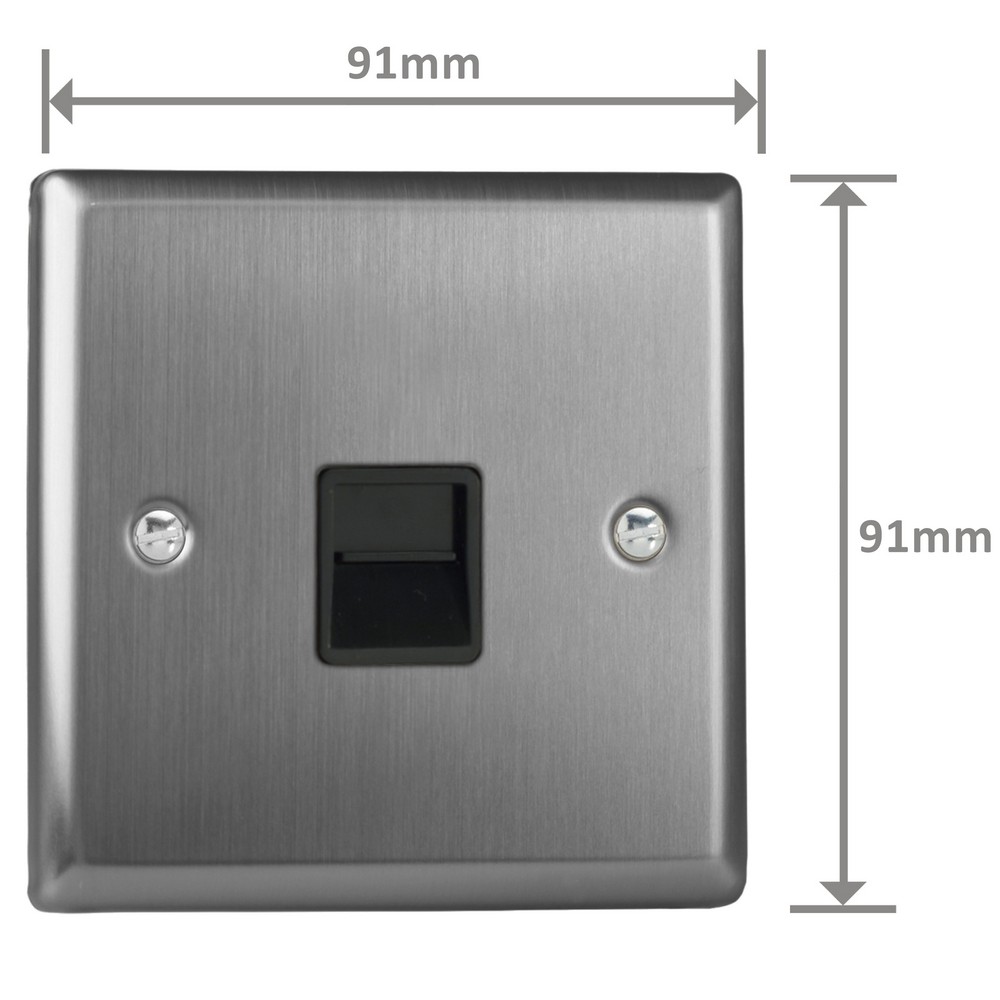

Dimensions: 91x91x21mm
Faceplate Depth: 8mm
Net Weight: 96g
Gross Weight: 98g
Fixing Centres: 60.3mm
Depth from Mounting Face: 12.9mm
Recommended Back Box Depth: 16mm
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Intended Applications: Indoor Use Only. Data circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Applicable Safety Standard: BS 6312-2
Commodity Code: 85367000
Product Features
Primary socket for where the BT line enters the property
Finished to match the rest of the range
Pairs with matching TV and data sockets
Simple screw terminal connection
Bevel-edge faceplate, 8mm deep with chrome screws, fits a 16mm back box
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Brushed Steel Finish
With its clean, understated style, Brushed Steel brings effortless sophistication to any room, and is a finish chosen by designers for its versatility. Black or white inserts and rockers are available, or choose matching brushed steel rockers.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
22nd September 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
