Click below to print the data sheet for XGTMB
Further information:
Data Sheet
Product Code: XGTMB
Product Description: 1-Gang Telephone Master Socket
Range: Classic
Finish: Georgian Brass
Product Category: TV and Telephone Sockets
Insert/Knob Colour: Black Insert
Barcode: 5021575750935

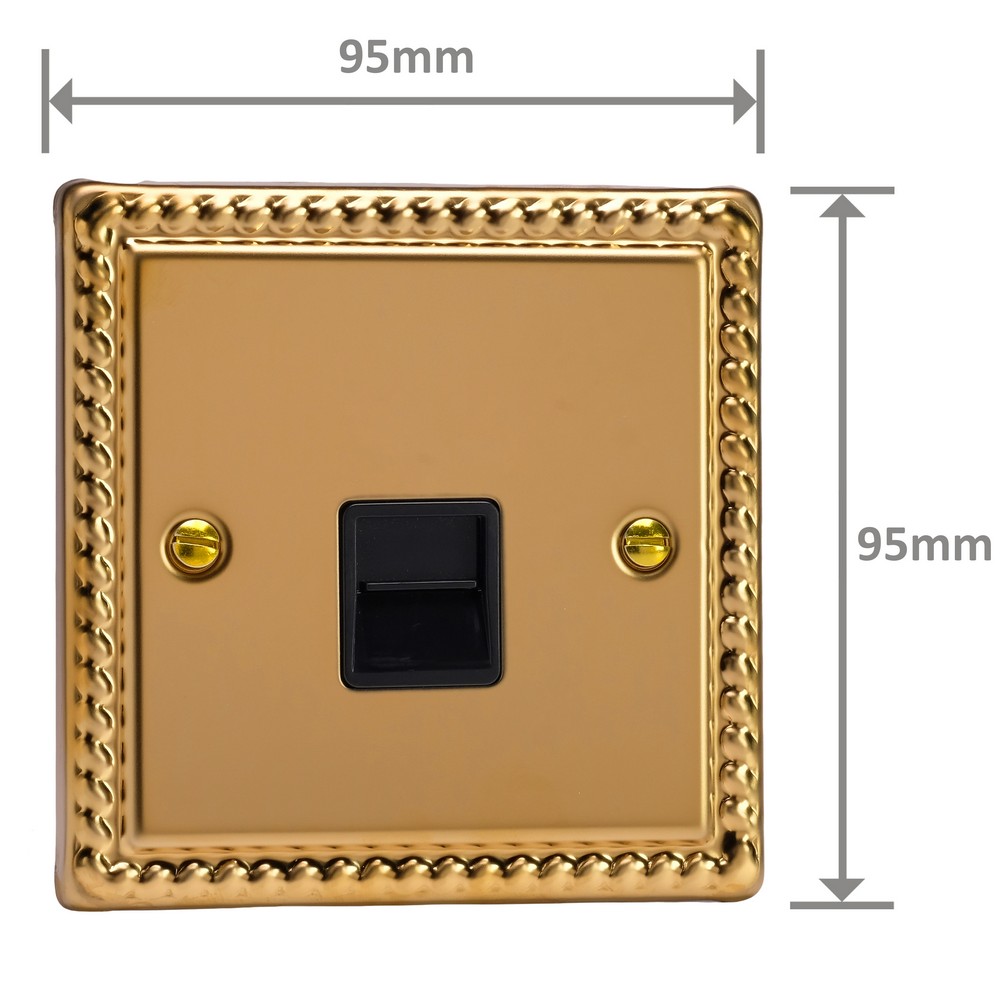

Dimensions: 95x95x21mm
Faceplate Depth: 7mm
Net Weight: 96g
Gross Weight: 98g
Fixing Centres: 60.3mm
Depth from Mounting Face: 12.2mm
Recommended Back Box Depth: 16mm
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Intended Applications: Indoor Use Only. Data circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Applicable Safety Standard: BS 6312-2
Commodity Code: 85367000
Product Features
Primary socket for where the BT line enters the property
Finished to match the rest of the range
Pairs with matching TV and data sockets
Simple screw terminal connection
Bevel-edge faceplate, 7mm deep with brass screws, fits a 16mm back box
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Georgian Brass Finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
04th October 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
