Data sheet: XTP4

Data sheet

XTP4 4-Gang 6A 1- or 2-Way Push On/Off Impulse Switch (Twin Plate)

Quad Impulse Light Switch 2-Way

Product features

  • Press once for on, once for off, in 1- or 2-Way circuits
  • Stylish round push button
  • Suitable for controlling both mains and low voltage lighting
  • 6A rated
  • Bevel-edge faceplate, 8mm deep with chrome screws, fits a 16mm back box

Product

Product code
XTP4
Category
Impulse Switches
Range
Classic
Finish
Brushed Steel
Insert / knob colour
Brushed Steel Buttons
Barcode
5021575032949

Size and fitting

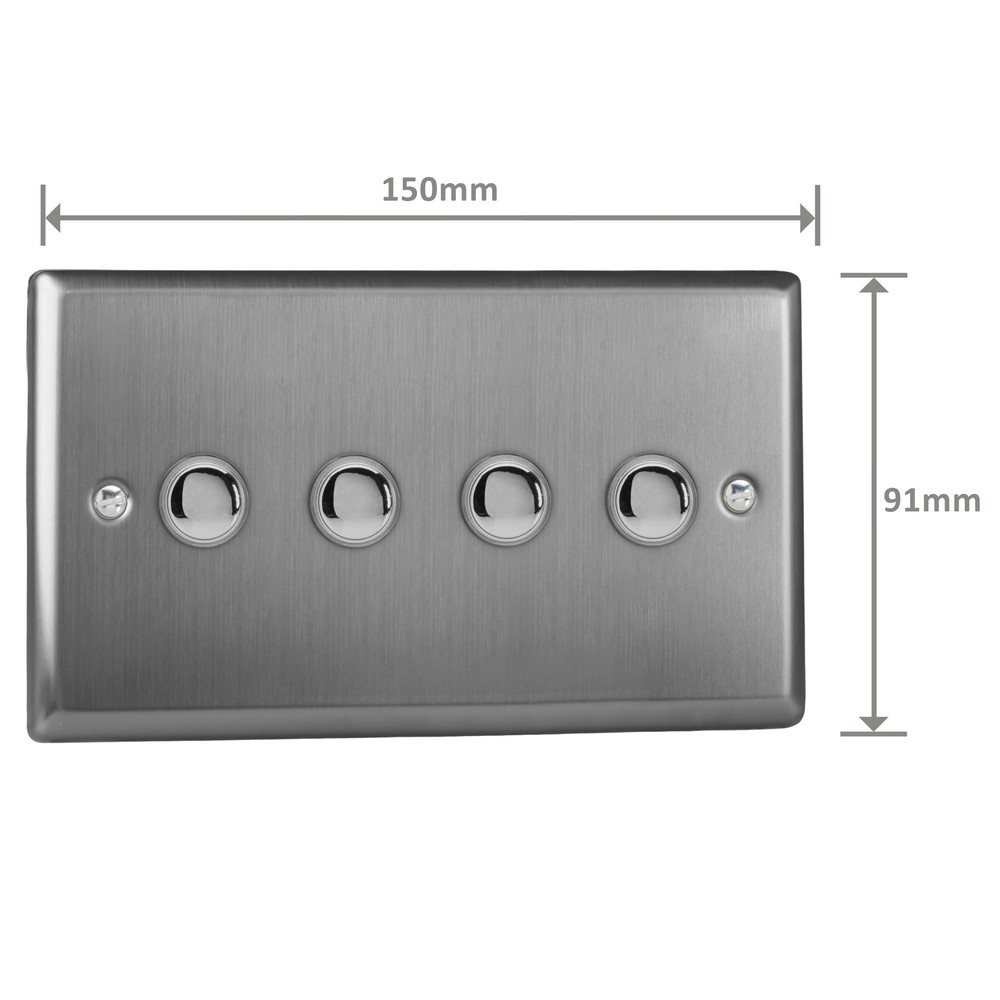

Dimensions
91x150x23mm
Faceplate depth
8mm
Fixing centres
120.6mm
Depth from mounting face
11.5mm
Recommended back box depth
16mm
Net weight
210g
Gross weight
212g

Electrical

Operating voltage
230V 50Hz
Maximum load rating
6A
Maximum current rating
6A
Terminal (Live)
3mm, capacity 3 x 1.5mm²
Terminal (Earth)
3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications
Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice
Product Must Be Earthed.
Applicable safety standard
BS EN 60669-1
Commodity code
85365007

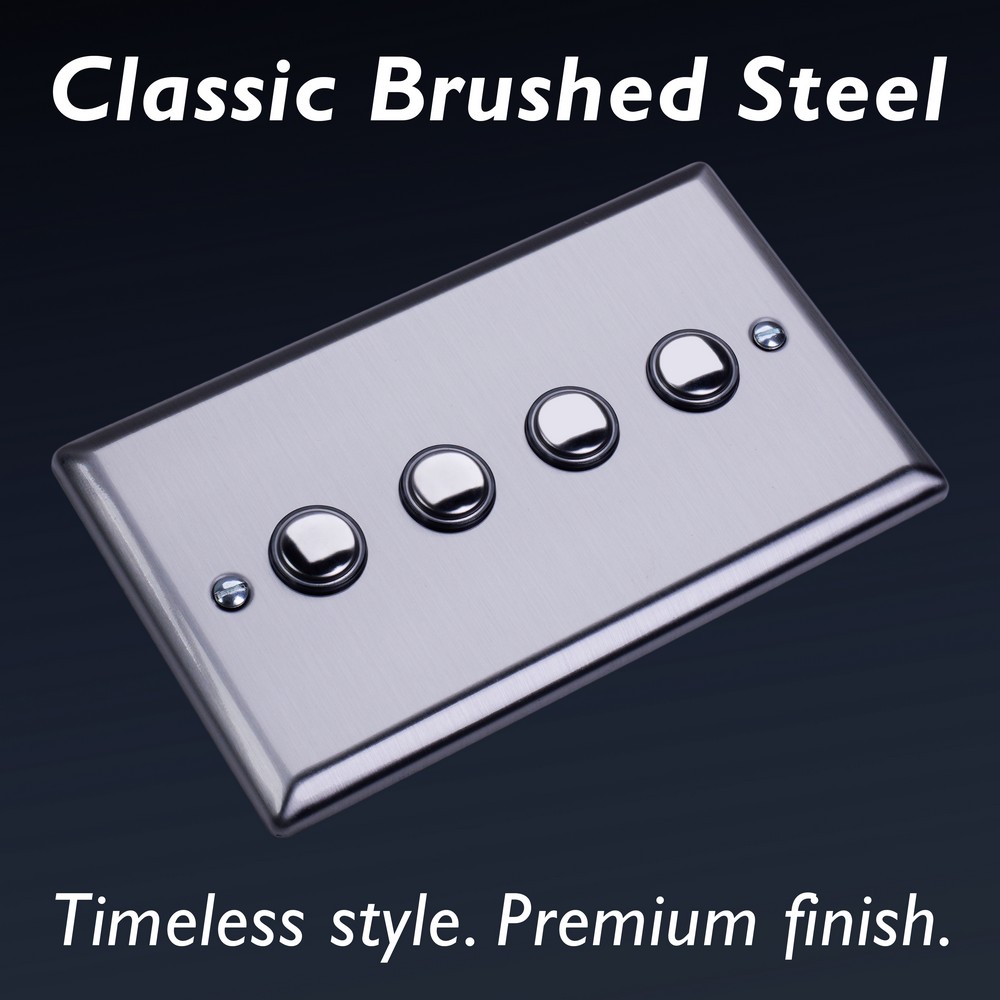

Classic collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

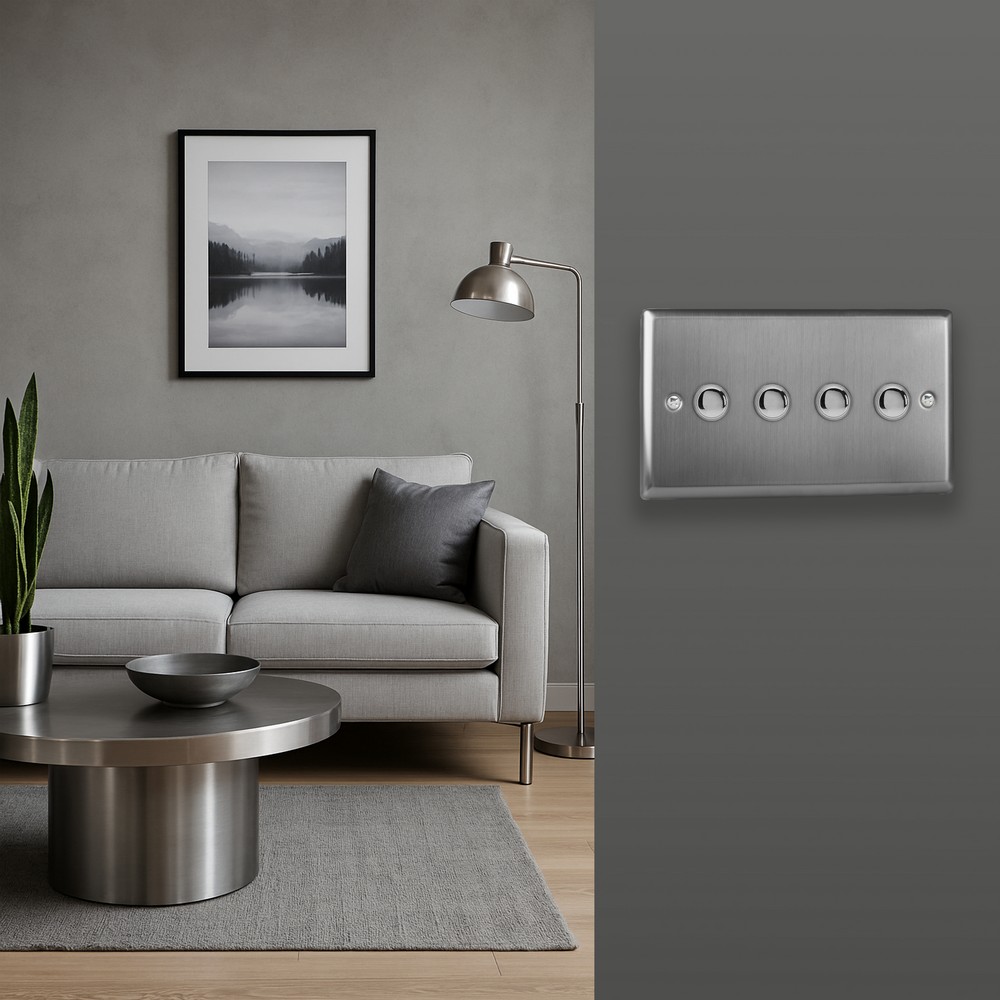

Brushed Steel finish

With its clean, understated style, Brushed Steel brings effortless sophistication to any room, and is a finish chosen by designers for its versatility. Black or white inserts and rockers are available, or choose matching brushed steel rockers.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 17th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
