Data Sheet

Product Code: XSP4

Product Description: 4-Gang 6A 1- or 2-Way Push On/Off Impulse Switch (Twin Plate)

Range: Value

Finish: Matt Chrome

Product Category: Impulse Switches

Insert/Knob Colour: Chrome Buttons

Barcode: 5021575831726

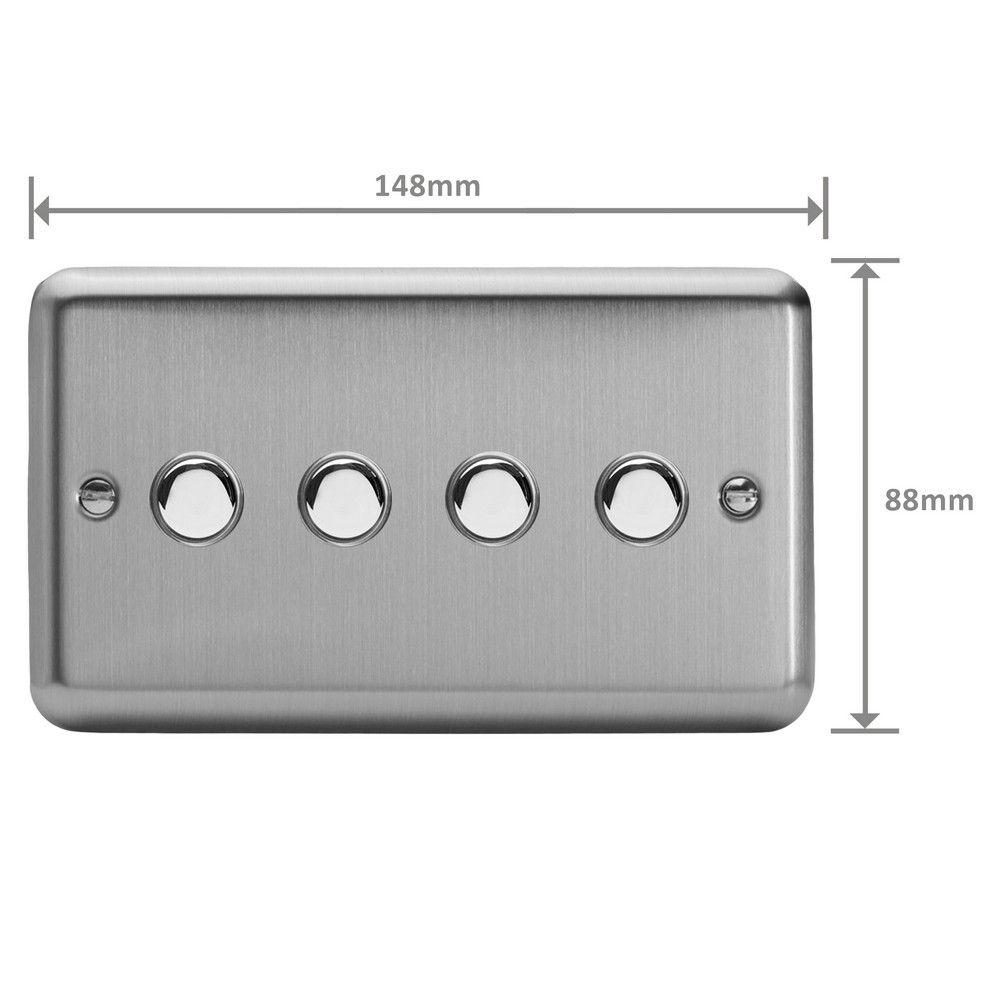

Dimensions: 88x148x23mm

Faceplate Depth: 7mm

Net Weight: 210g

Gross Weight: 212g

Fixing Centres: 120.6mm

Depth from Mounting Face: 11.1mm

Recommended Back Box Depth: 16mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 6A

Maximum Current Rating: 6A

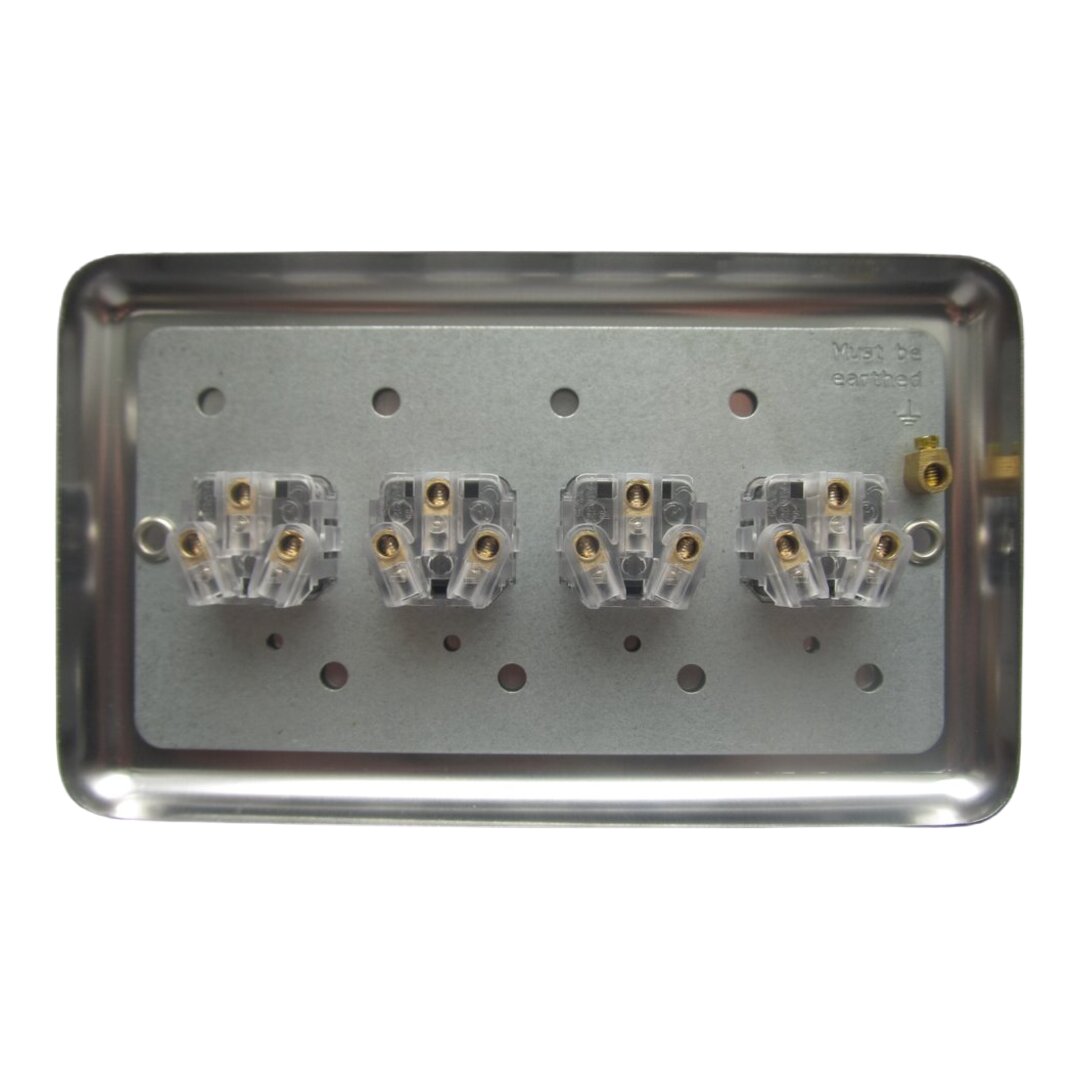

Terminal (Live) Diameter: 3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85365007

Declaration of Conformity

Product Features

  1- or 2-Way push on/off switching

  Stylistically matches V-Pro IR and V-Plus IR dimmers

  Suitable for controlling both mains and low voltage lighting

  Curved edge faceplate

Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.

Matt Chrome Finish
Matt Chrome offers unbeatable value for those seeking a beautiful Decorative finish at a great price point. Choose between black, white or matching metal rockers. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
