Data Sheet
Product Code: XIFRP5ACW

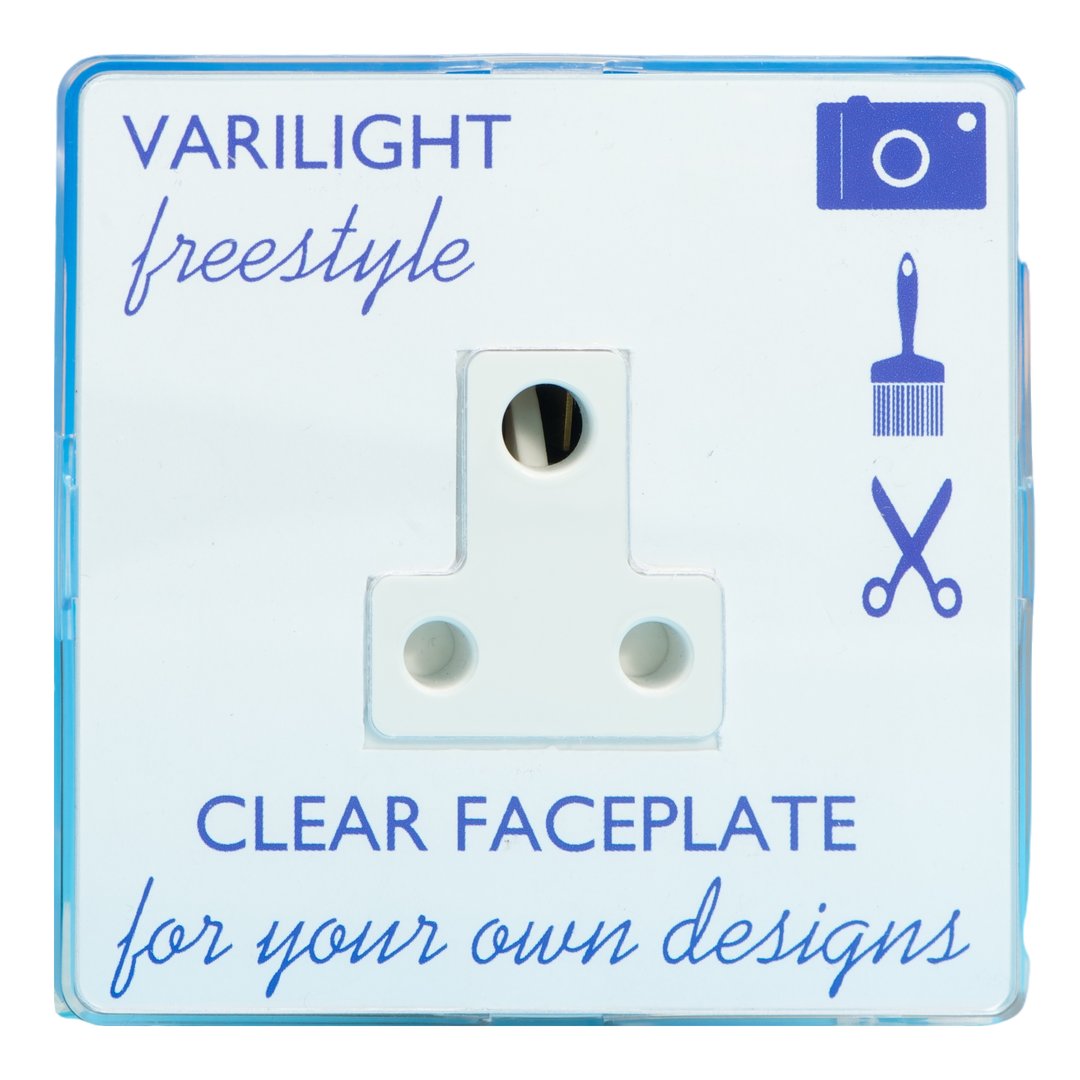

Product Description: 1-Gang 5A Round Pin Socket
Range: Freestyle
Finish: Clear
Product Category: Round Pin Sockets
Insert/Knob Colour: White Insert
Barcode: 5021575968514
Dimensions: 86x86x25mm
Faceplate Depth: 4mm
Net Weight: 66g
Gross Weight: 68g
Fixing Centres: 60.3mm
Depth from Mounting Face: 12.9mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 5A
Maximum Current Rating: 5A
Terminal (Live) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
Terminal (Neutral) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 546
Commodity Code: 85366990
Product Features
5A round pin socket
Puts table and standard lamps on the light switch
Classic round pin fitting in a finish to match the room
Clear faceplate, just 4mm deep with brass screws, fits a 25mm back box
Freestyle Collection
Freestyle faceplates are made from clear polycarbonate, letting you create a completely bespoke look by placing your own design, wallpaper or fabric behind the plate. Choose the accessory you need and design the rest yourself.
Clear Finish
A clear polycarbonate faceplate with chrome rockers and dimmer knobs. Place your own design behind the plate to create something completely unique.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
