Data sheet: XDBRP5AWS
Data sheet

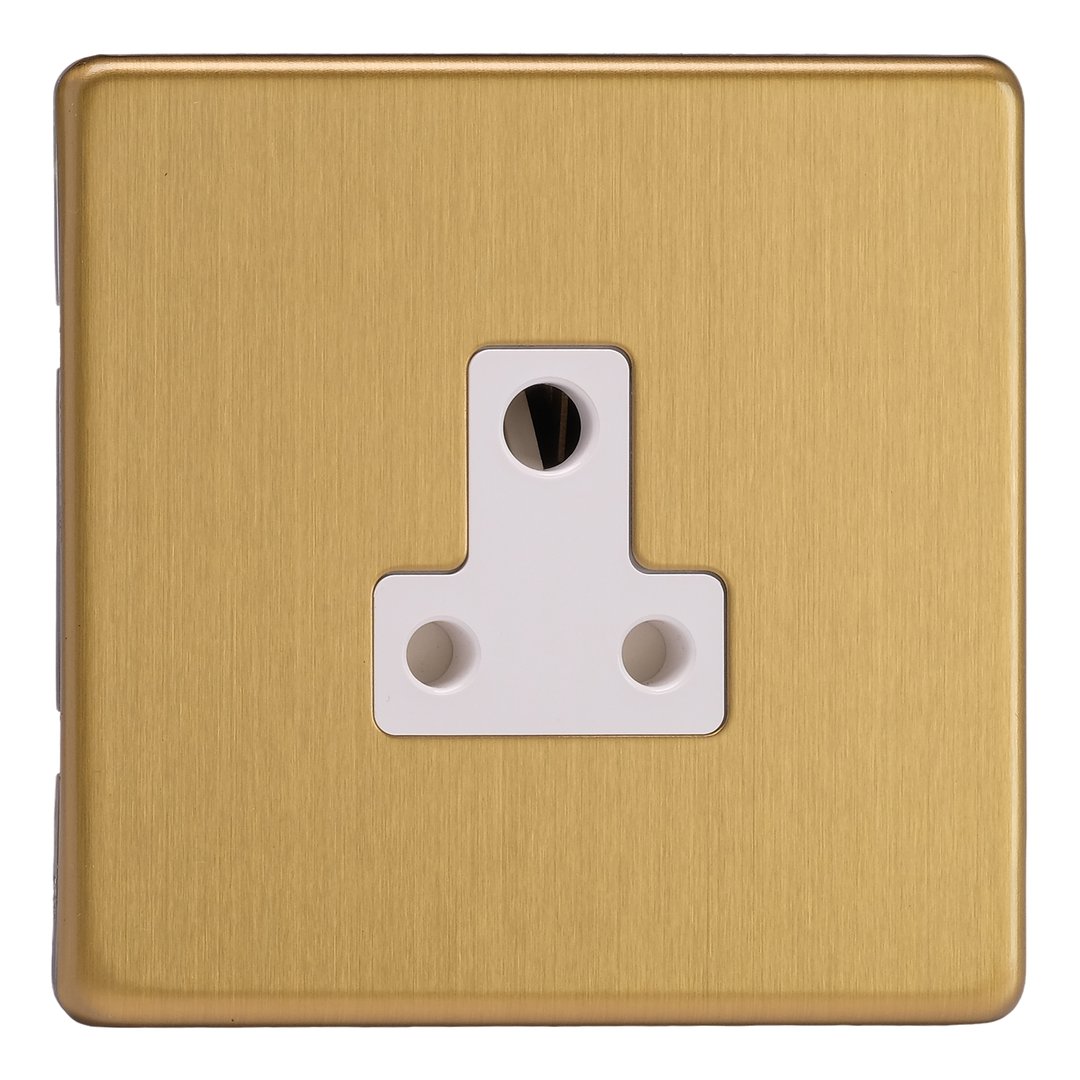

XDBRP5AWS 1-Gang 5A Round Pin Socket
Product features
- 5A round pin socket
- Puts table and standard lamps on the light switch
- Classic round pin fitting in a finish to match the room
- Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 35mm back box
Product
- Product code
- XDBRP5AWS
- Category
- Round Pin Sockets
- Range
- Screwless
- Finish
- Brushed Brass
- Insert / knob colour
- White Insert
- Barcode
- 5021575761863
Size and fitting

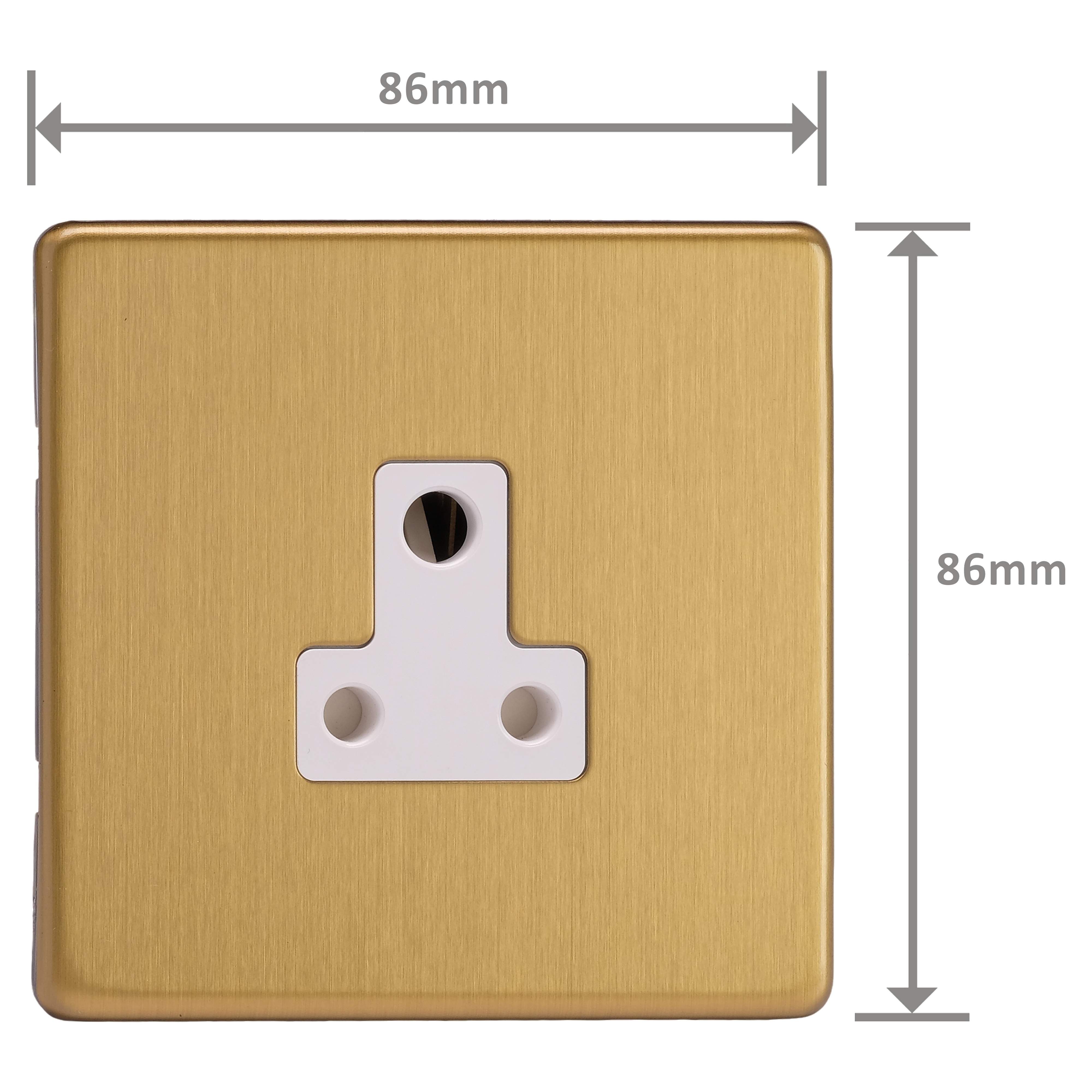

- Dimensions
- 86x86x25mm
- Faceplate depth
- 4mm
- Fixing centres
- 60.3mm
- Depth from mounting face
- 18.4mm
- Recommended back box depth
- 35mm
- Net weight
- 176g
- Gross weight
- 178g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- 5A
- Maximum current rating
- 5A
- Terminal (Live)
- 3.7mm, capacity 3 x 1.5mm²
- Terminal (Neutral)
- 3.7mm, capacity 3 x 1.5mm²
- Terminal (Earth)
- 3.7mm, capacity 3 x 1.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Product Must Be Earthed.
- Applicable safety standard
- BS 546
- Commodity code
- 85366990
Screwless collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.
Brushed Brass finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts are available, paired with polished brass rockers for an added touch of class.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 22nd November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
