Data Sheet
Product Code: XYRP5AB.MB

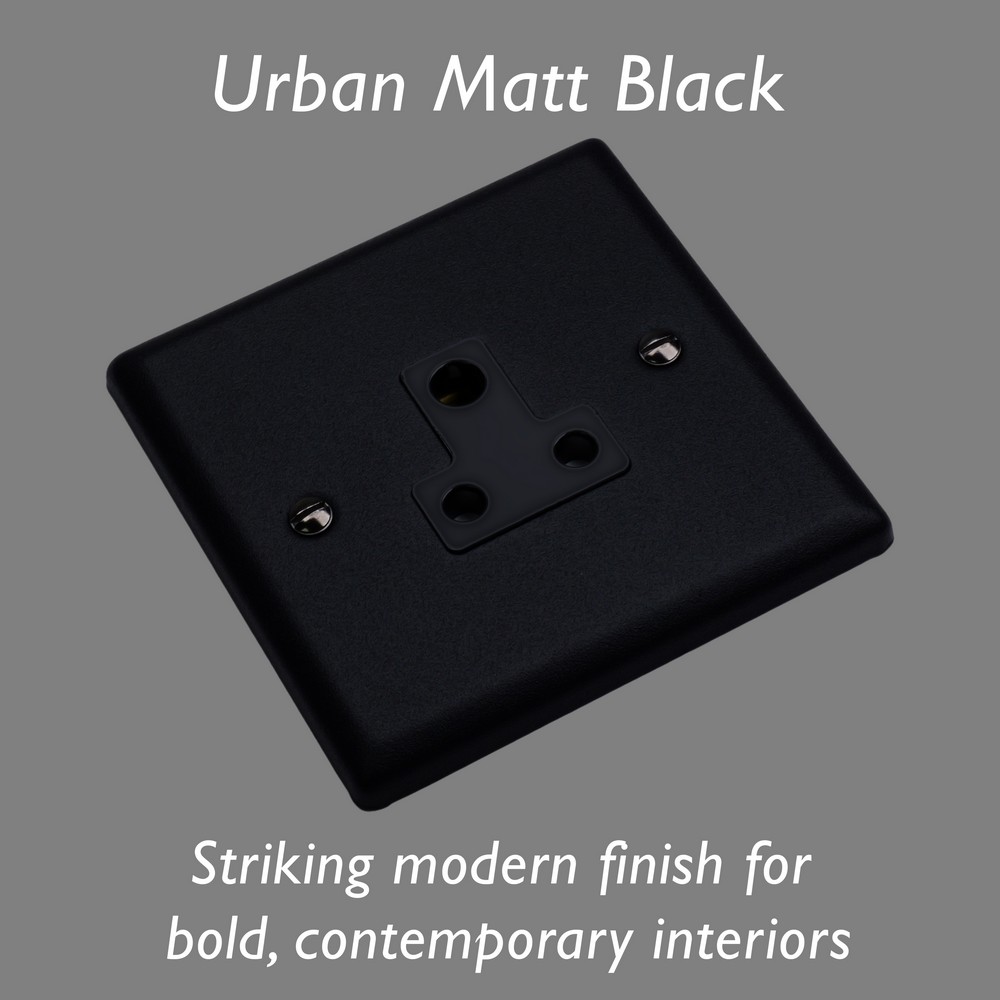

Product Description: 1-Gang 5A Round Pin Socket
Range: Urban/Vogue
Finish: Matt Black
Product Category: Round Pin Sockets
Insert/Knob Colour: Black Insert
Barcode: 5021575031454

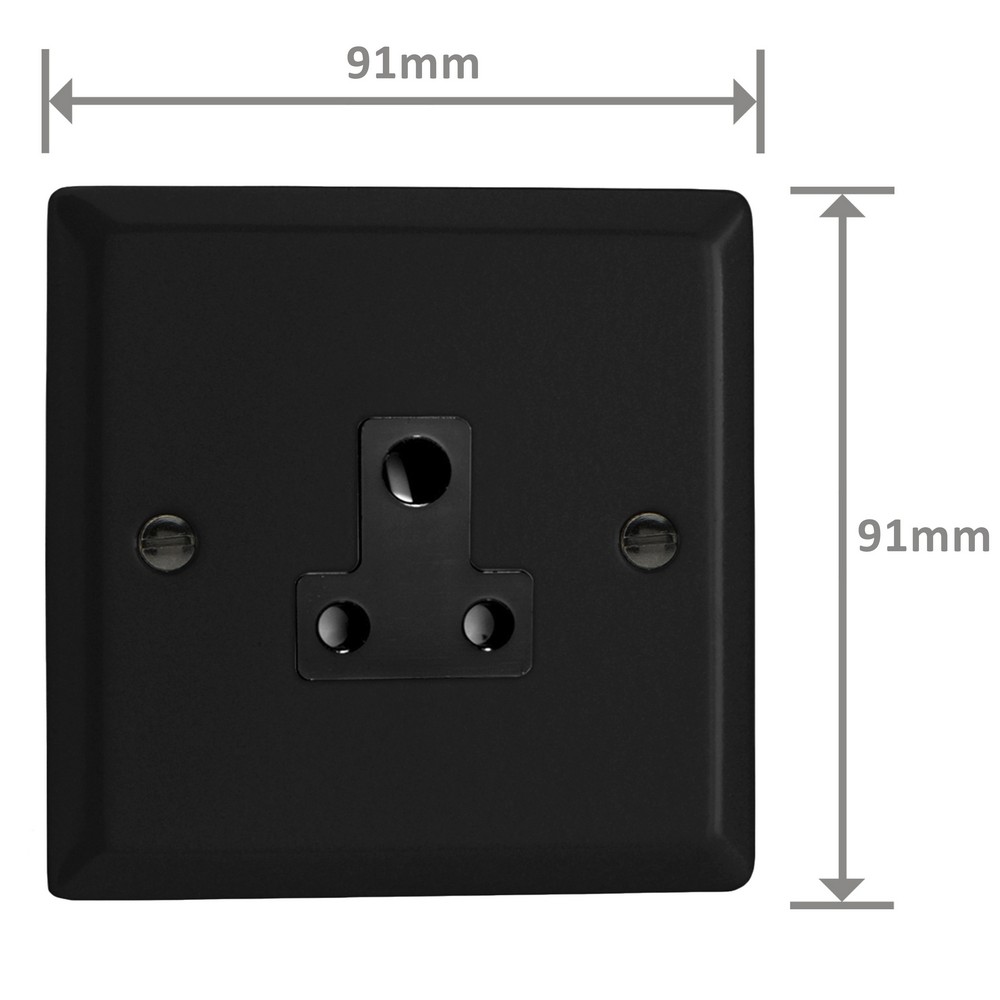

Dimensions: 91x91x25mm
Faceplate Depth: 8mm
Net Weight: 166g
Gross Weight: 168g
Fixing Centres: 60.3mm
Depth from Mounting Face: 12.9mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 5A
Maximum Current Rating: 5A
Terminal (Live) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
Terminal (Neutral) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.7mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 546
Commodity Code: 85366990
Product Features
For use in lighting circuits up to 1150W in conjunction with wall switches
Bevelled edge faceplate
Comes with Iridium and Brass screws to suit Vogue and Urban collections
Urban/Vogue Collection
The Varilight Urban range is a premium collection, inspired by the latest trends in interior design, bringing an Urban edge to stylish spaces. Each finish is presented on a contemporary bevel-edge plate style, which is expertly manufactured in the UK to the highest standard. This product is also suitable to match with the Vogue Collection.
Rear View:
