Data Sheet
Product Code: XG71B
Product Description: 2-Gang (10A Intermediate Switch with 10A 1- or 2-Way Rocker Switch)
Range: Classic
Finish: Georgian Brass
Product Category: Rocker Switches
Insert/Knob Colour: Black Rockers
Barcode: 5021575751147

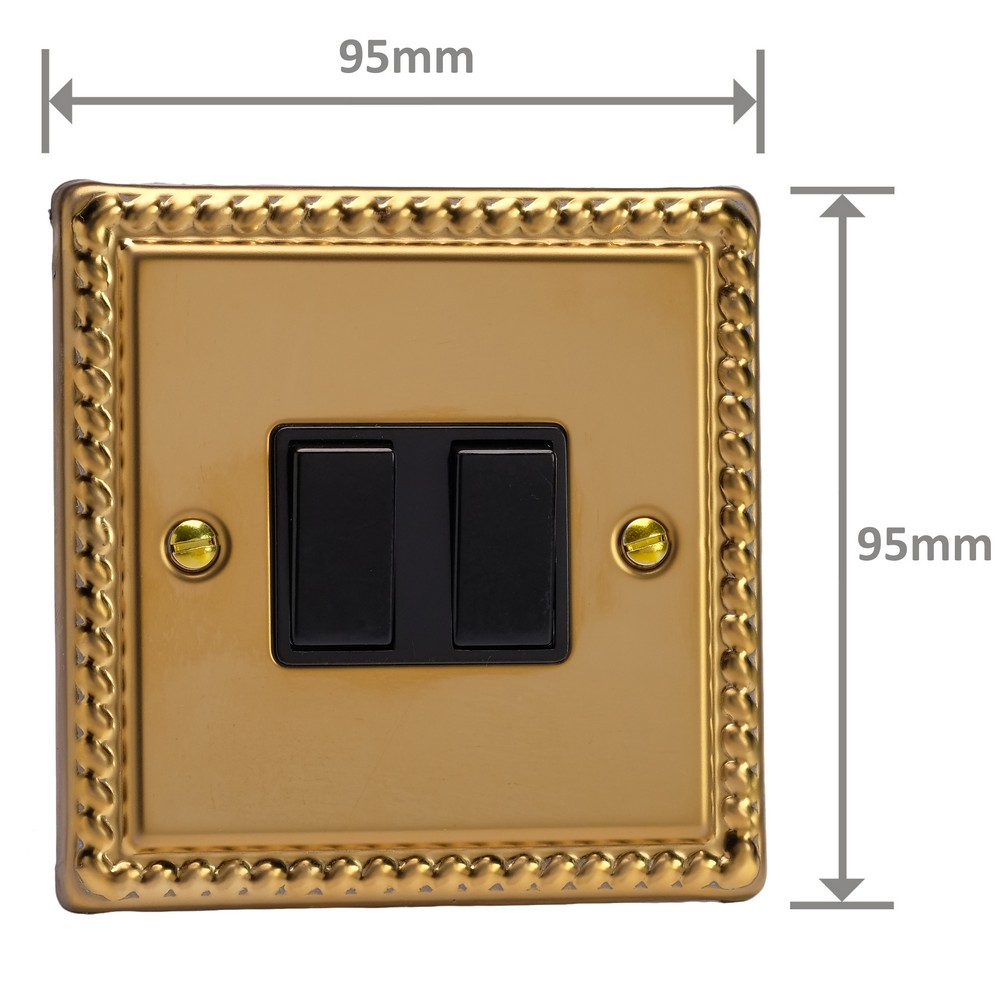

Dimensions: 95x95x25mm
Faceplate Depth: 7mm
Net Weight: 146g
Gross Weight: 148g
Fixing Centres: 60.3mm
Depth from Mounting Face: 10.7mm
Recommended Back Box Depth: 16mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
Product Features
One 1- or 2-Way switch alongside one intermediate switch, the answer for landings and hallways
Suitable for controlling both mains and low voltage lighting
Intermediate switch for controlling one light from three or more places
10A rated
Bevel-edge faceplate, 7mm deep with brass screws, fits a 16mm back box
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Georgian Brass Finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
03rd October 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
