Data Sheet

Product Code: XDYRP5ABS.BZ

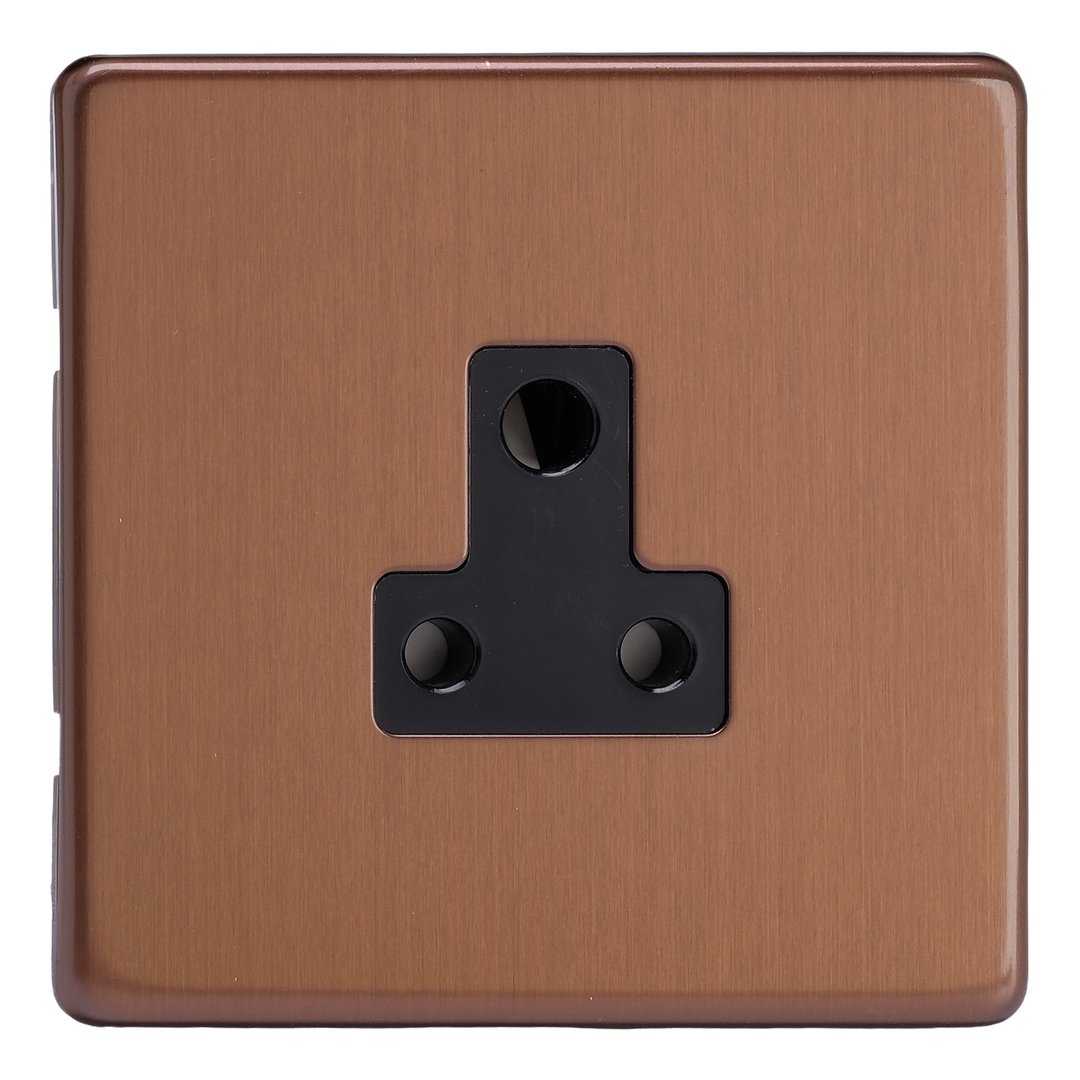

Product Description: 1-Gang 5A Round Pin Socket

Range: Urban Screwless

Finish: Brushed Bronze

Product Category: Round Pin Sockets

Insert/Knob Colour: Black Insert

Barcode: 5021575004694

Dimensions: 86x86x25mm

Faceplate Depth: 4mm

Net Weight: 176g

Gross Weight: 178g

Fixing Centres: 60.3mm

Depth from Mounting Face: 18.4mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 5A

Maximum Current Rating: 5A

Terminal (Live) Diameter: 3.7mm; Capacity: 3 x 1.5mm²

Terminal (Neutral) Diameter: 3.7mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.7mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 546

Commodity Code: 85366990

Declaration of Conformity

Product Features

  For use in lighting circuits up to 1150W in conjunction with wall switches

  Sleek, low-profile screwless faceplate

Urban Screwless Collection
The Urban Screwless range is inspired by the latest trends in interior design, bringing an Urban edge to stylish spaces. Manufactured in the UK to the highest standards, each finish is presented on low profile faceplate, with hidden fixings contributing to an understated aesthetic.

Brushed Bronze Finish
Offering a contemporary take on a classical finish, and paired with black inserts, Brushed Bronze suits both traditional and modern spaces. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
