Data Sheet
Product Code: JYSM101V.MB
Product Description: 1-Gang V-Pro Smart Master Wi-Fi Dimmer 1 x 120W LED (Multi-Way with up to 2 Companion Controllers)
Range: Vogue
Finish: Matt Black
Product Category: Smart Dimmers
Insert/Knob Colour: Polished Brass Knob
Barcode: 5021575037111

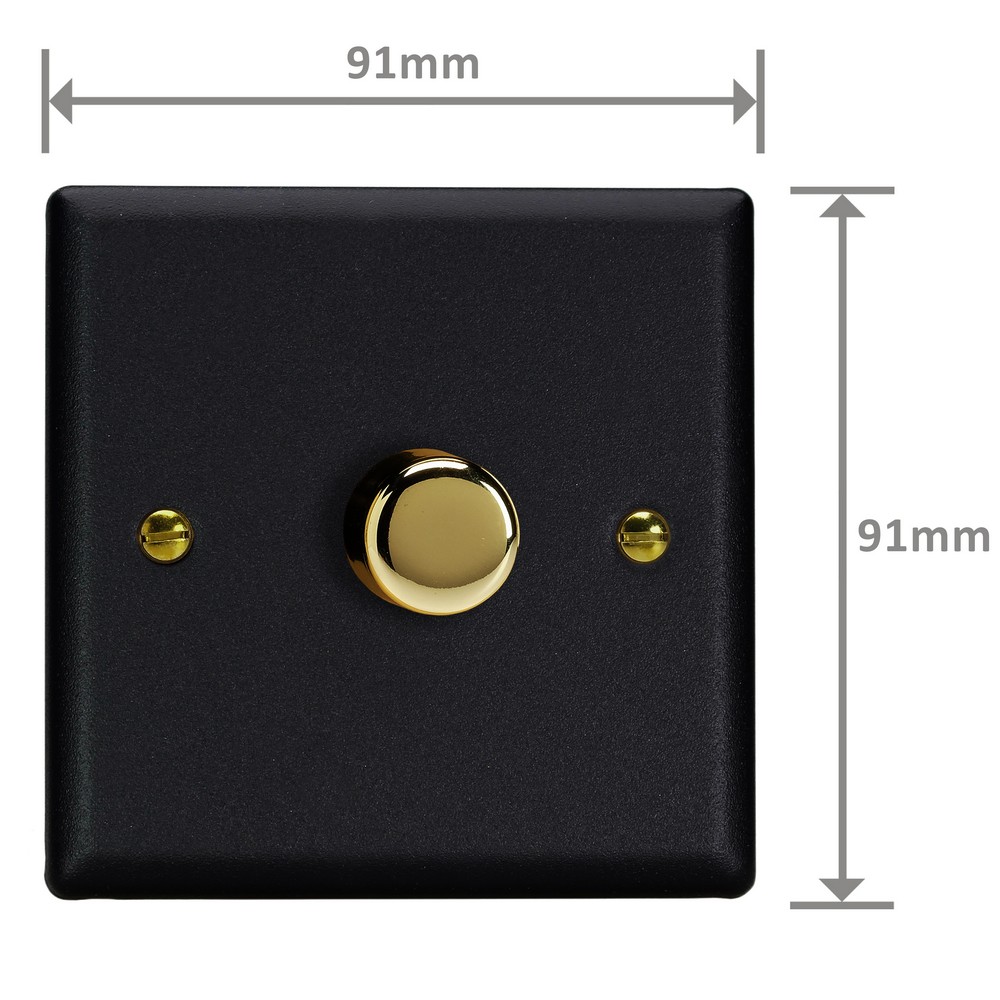

Dimensions: 91x91x46mm
Faceplate Depth: 8mm
Net Weight: 156g
Gross Weight: 148g
Fixing Centres: 60.3mm
Depth from Mounting Face: 17.5mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED; 120W
Maximum Current Rating: 0.4A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
Simply connect to the Supla app on your smart device to control the dimmer from your screen at home or aWay for added security and power saving
Compatible with Google Home or Alexa to dim your lights with your smart assistant
Ideal for home users, with V-Pro Smart control for intuitive dimming and smart assistant integration
Traditional rotary dimming with Multi-Way operation when used with Companion controllers
Direct programming functionality from the Supla app for easy setup. For information on further features, including Group Control, Scheduling, Scene Setting and more, click here.

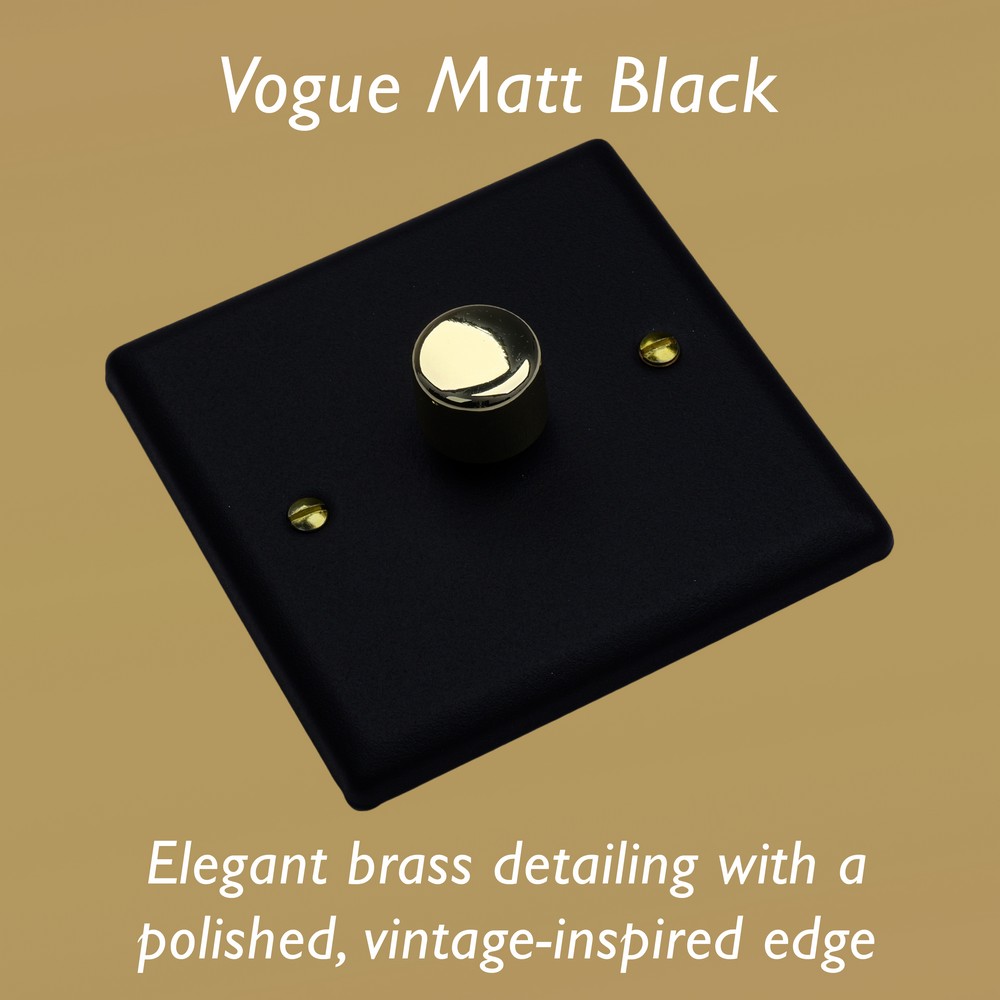

Vogue Collection
Inspired by the glamour of art deco, the Vogue collection will lift the decor of any room. Polished Brass switches, toggles and dimmer knobs are paired with the highest quality metal faceplates, to bring a feeling of luxury to any room.Matt Black Finish
The Matt Black finish is powder-coated to give a tactile, textured finish, which is tough, durable and resistant to fingerprints and is elevated here with the signature brass detailing of the Vogue Collection. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required.. Do not overload. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 13th December 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
