Data sheet: JTDP303

V-Pro

Data sheet

JTDP303 3-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 3 x 0-120W (Twin Plate)

Triple V-Pro Rotary 2-Way LED Dimmer 3 x 0-120W

This product can also be made using our Matrix System.

Product features

  • V-Pro intelligent dimming, the industry standard for LED
  • Dims 0-120W of lighting per circuit with no minimum load and no maximum number of lamps
  • Optimised for dimmable LEDs, no buzzing, no flickering
  • Silent trailing edge dimming that is gentle on the load
  • Soft start brings the lights up gently, with intelligent overload protection
  • Adjustable minimum brightness and a choice of driving modes to get the best from any LED
  • Push on/off, rotate to dim; settings are saved even after a power cut
  • Bevel-edge faceplate, 8mm deep with chrome screws, fits a 25mm back box

Product

Product code
JTDP303
Category
LED Dimmers
Range
Classic
Finish
Brushed Steel
Insert / knob colour
Brushed Steel Knob
Barcode
5021575031829

Size and fitting

Dimensions
91x150x47mm
Faceplate depth
8mm
Fixing centres
120.6mm
Depth from mounting face
18.1mm
Recommended back box depth
25mm
Net weight
310g
Gross weight
312g

Electrical

Operating voltage
230V 50Hz
Maximum load rating
LED: 120W
Maximum current rating
1.1A
Terminal (Live)
3.2mm, capacity 3 x 1.5mm²
Terminal (Earth)
3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications
Indoor Use Only. Domestic lighting circuits including many dimmable LEDs. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice
Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required. Do not overload. Product Must Be Earthed.
Applicable safety standard
BS EN 60669-2-1
Commodity code
85365005

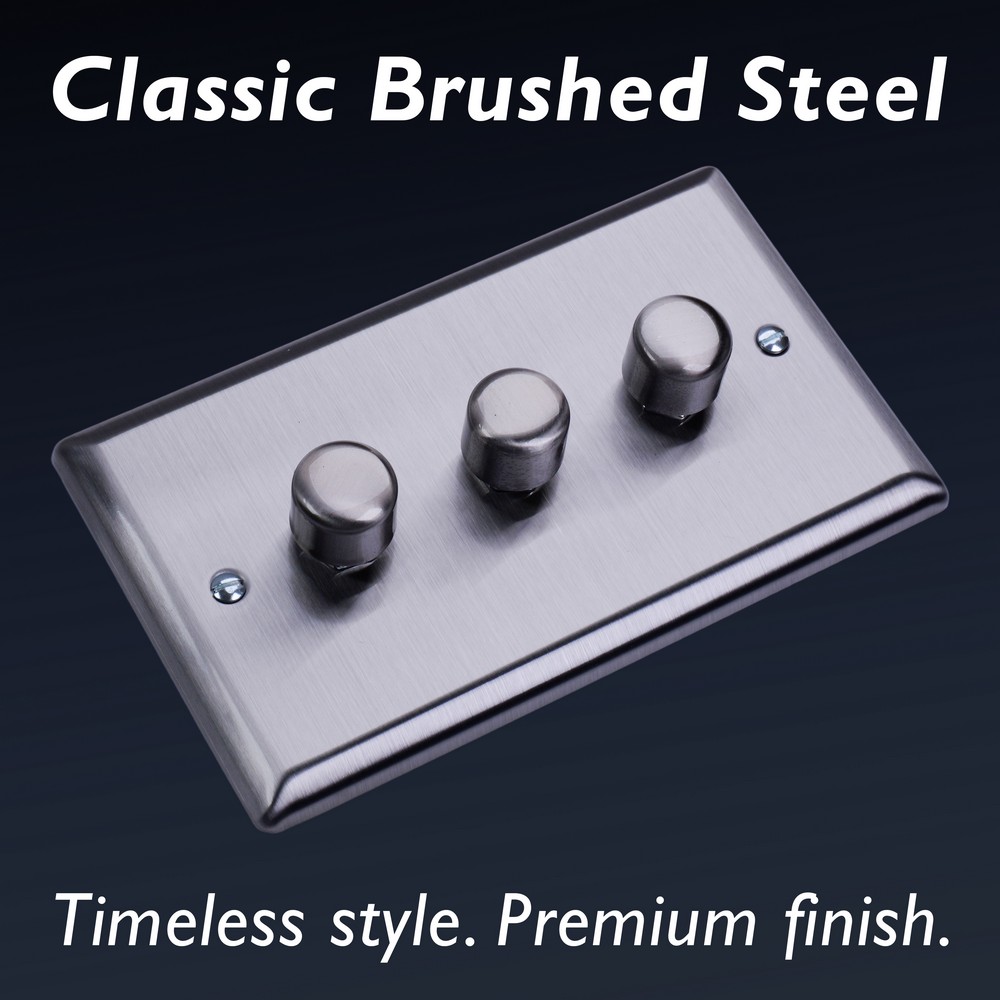

Classic collection

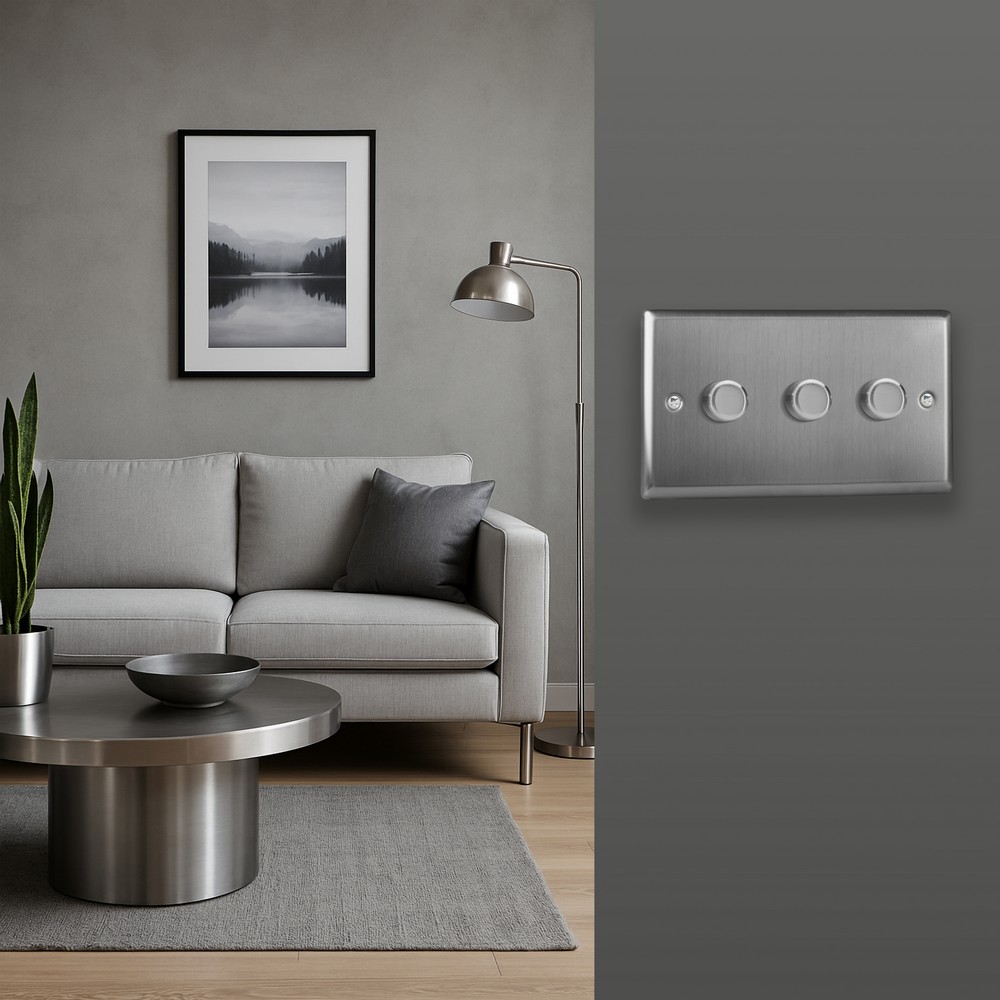

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Brushed Steel finish

With its clean, understated style, Brushed Steel brings effortless sophistication to any room, and is a finish chosen by designers for its versatility. Black or white inserts and rockers are available, or choose matching brushed steel rockers.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 22nd November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
