Data Sheet

Product Code: XTSSW

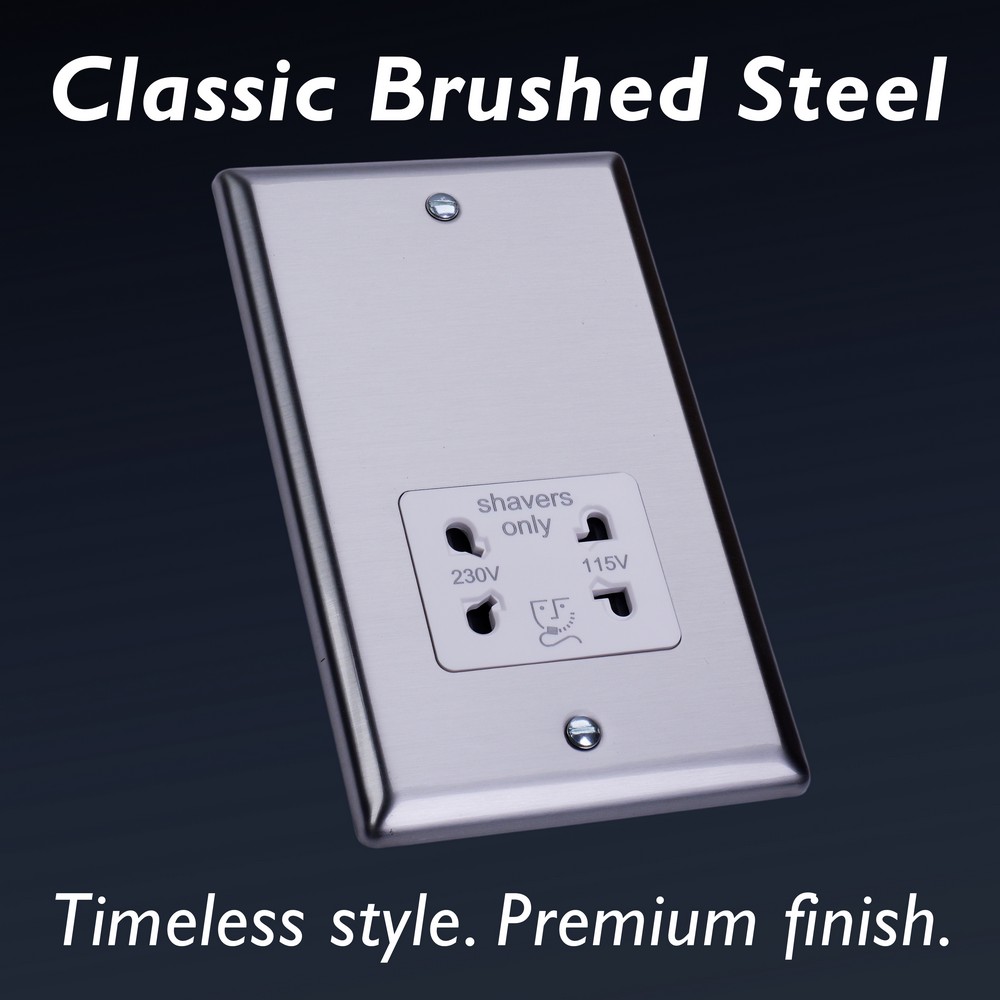

Product Description: Dual Voltage Shaver Socket 230V/115V

Range: Classic

Finish: Brushed Steel

Product Category: Other Items

Insert/Knob Colour: White Insert

Barcode: 5021575033038

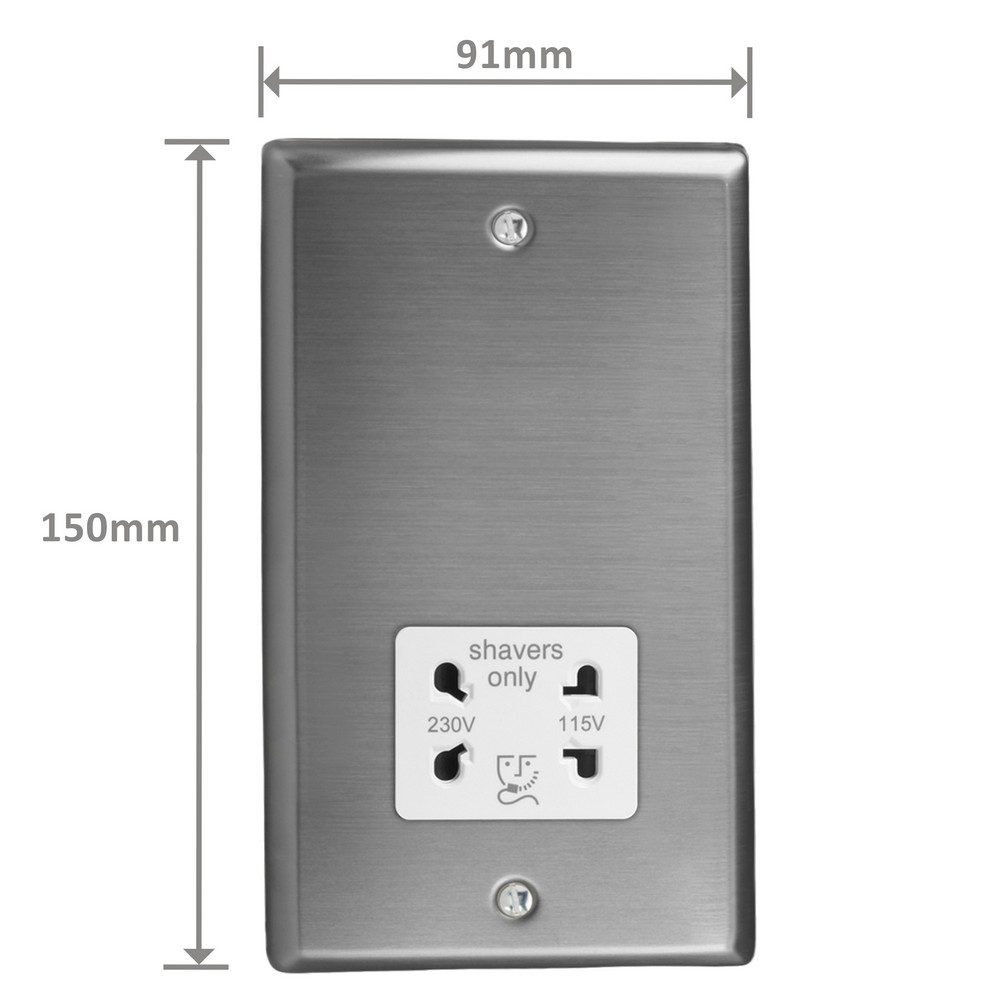

Dimensions: 91x150x44mm

Faceplate Depth: 8mm

Net Weight: 380g

Gross Weight: 382g

Fixing Centres: 120.6mm

Depth from Mounting Face: 38.9mm

Recommended Back Box Depth: 47mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 20VA

Maximum Current Rating: 80mA

Terminal (Live) Diameter: 5.4mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 5.4mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 5mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 61558-2-5

Commodity Code: 85366990

Declaration of Conformity

Product Features

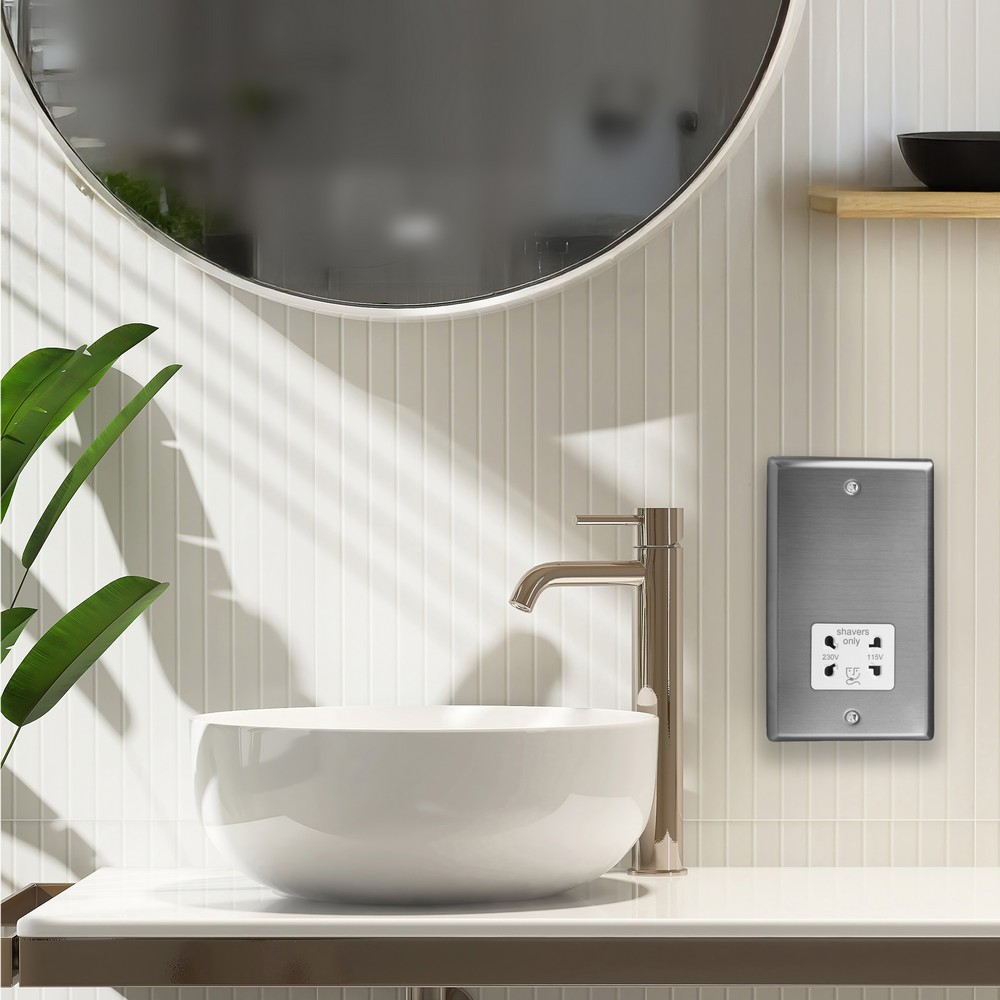

  Suitable for use in bathrooms, toilets and shower rooms (IP41)

  230V accepts British and Continental round pin

  115V accepts Continental two-pin and America NEMA

  Bevelled edge faceplate

Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.

Brushed Steel Finish
With its clean, understated style, Brushed Steel brings effortless sophistication to any room ? a finish chosen by designers for its versatility.Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
