Data Sheet

Product Code: XTSSB

Product Description: Dual Voltage Shaver Socket 230V/115V

Range: Classic

Finish: Brushed Steel

Product Category: Other Items

Insert/Knob Colour: Black Insert

Barcode: 5021575033021

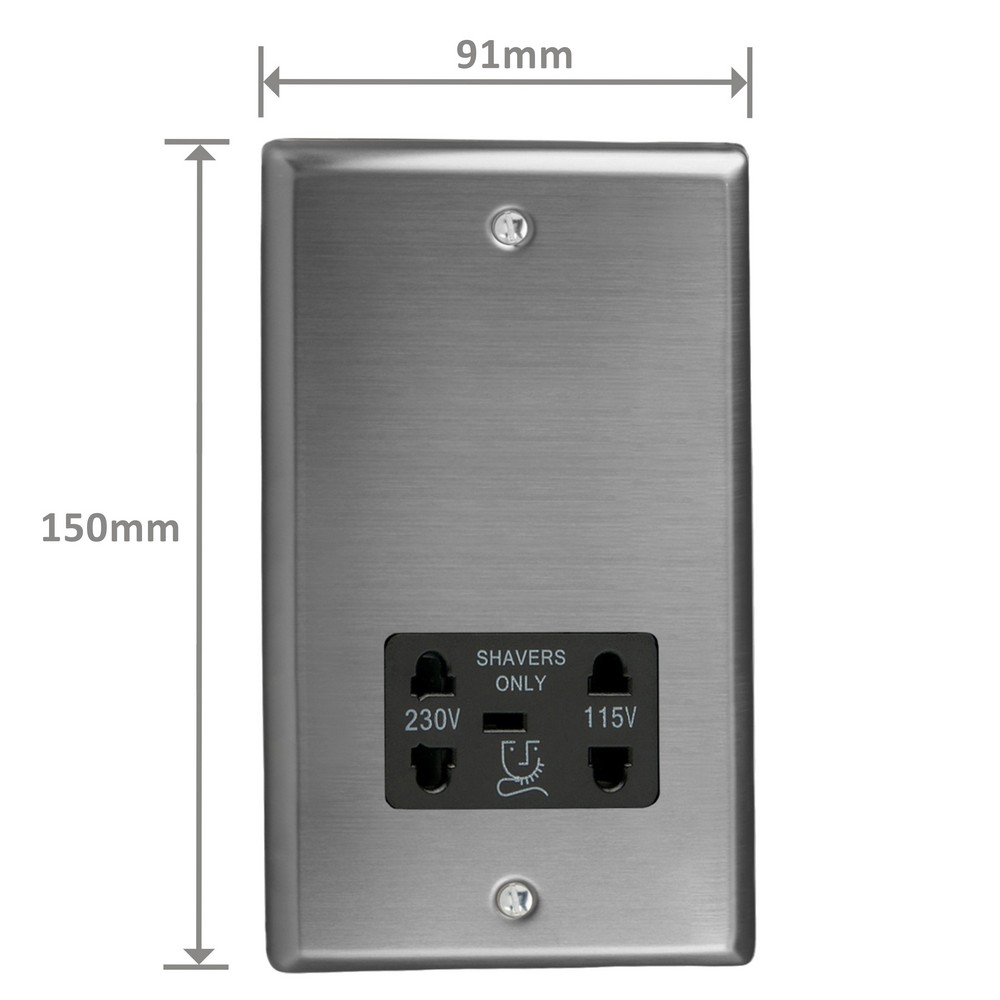

Dimensions: 91x150x44mm

Faceplate Depth: 8mm

Net Weight: 380g

Gross Weight: 382g

Fixing Centres: 120.6mm

Depth from Mounting Face: 38.9mm

Recommended Back Box Depth: 47mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 20VA

Maximum Current Rating: 80mA

Terminal (Live) Diameter: 5.4mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 5.4mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 5mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 61558-2-5

Commodity Code: 85366990

Declaration of Conformity

Product Features

  Safe for bathrooms, toilets and shower rooms (IP41)

  230V outlet takes British and Continental round pin plugs

  115V outlet takes Continental two-pin and American NEMA plugs

  Built-in isolating transformer for bathroom safety

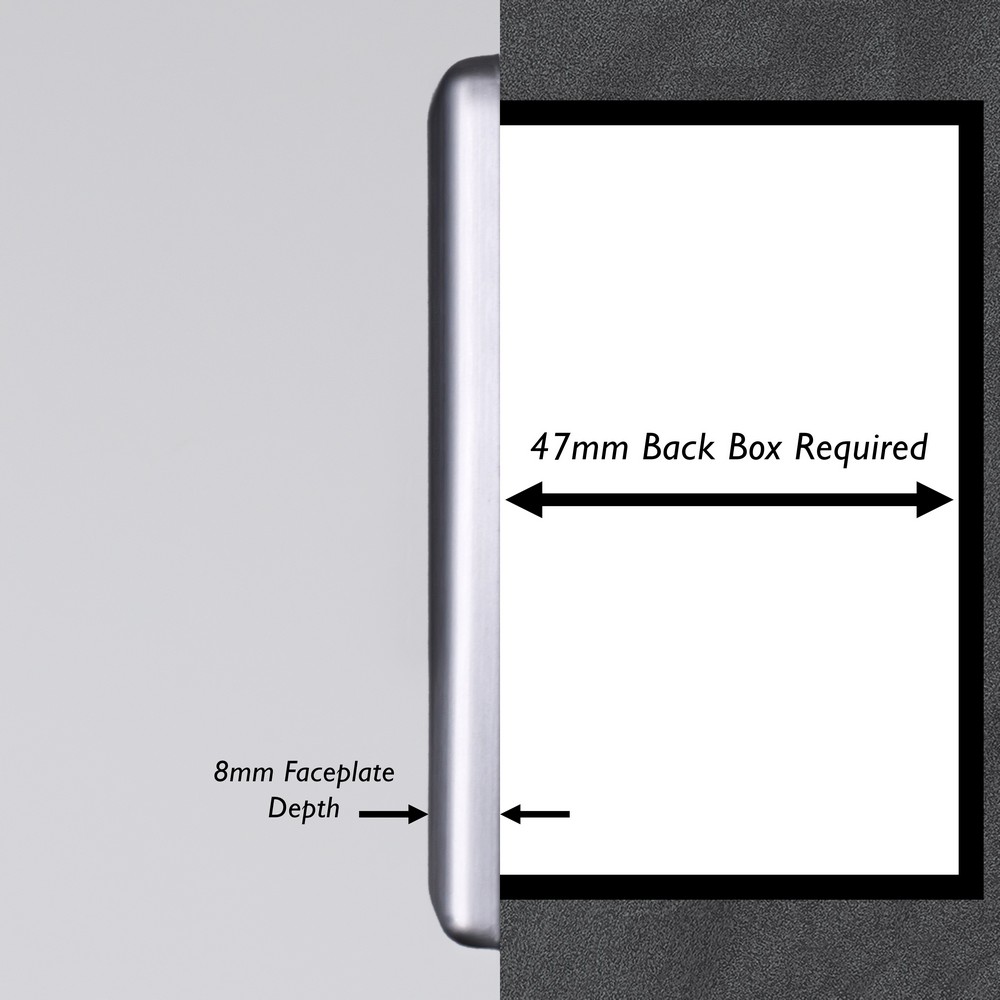

  Bevel-edge faceplate, 8mm deep with chrome screws, fits a 47mm back box

Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Brushed Steel Finish
With its clean, understated style, Brushed Steel brings effortless sophistication to any room, and is a finish chosen by designers for its versatility. Black or white inserts and rockers are available, or choose matching brushed steel rockers.
