Data Sheet

Product Code: XTM2

Product Description: 2-Gang 6A 1-Way Push-to-Make Momentary Switch

Range: Classic

Finish: Brushed Steel

Product Category: Retractive Switches

Insert/Knob Colour: Brushed Steel Buttons

Barcode: 5021575032888

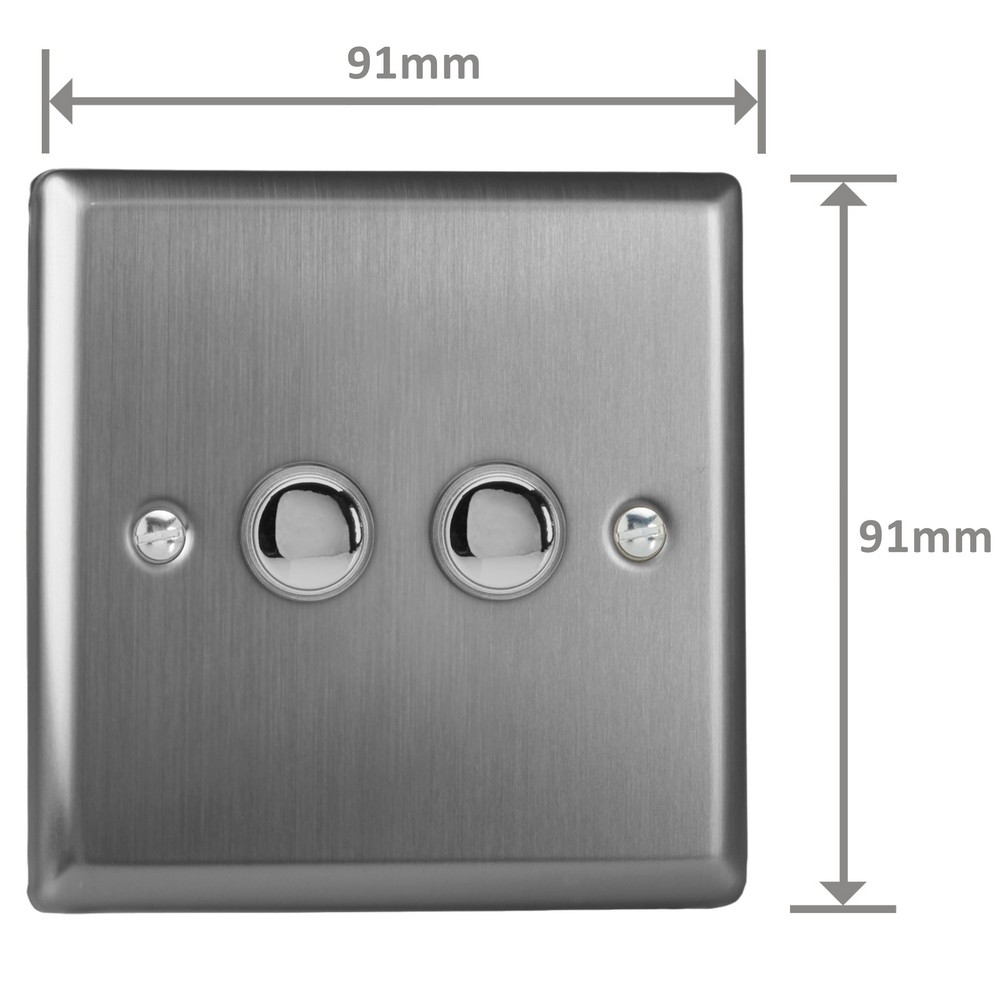

Dimensions: 91x91x23mm

Faceplate Depth: 8mm

Net Weight: 126g

Gross Weight: 128g

Fixing Centres: 60.3mm

Depth from Mounting Face: 11.5mm

Recommended Back Box Depth: 16mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 6A

Maximum Current Rating: 6A

Terminal (Live) Diameter: 3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 61058-1

Commodity Code: 85365011

Declaration of Conformity

Product Features

  Momentary push to make switch that springs back when released

  For blinds, doorbells and anything that needs a momentary signal rather than a permanent on

  6A rated

  Springs back when released

  Bevel-edge faceplate, 8mm deep with chrome screws, fits a 16mm back box

Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

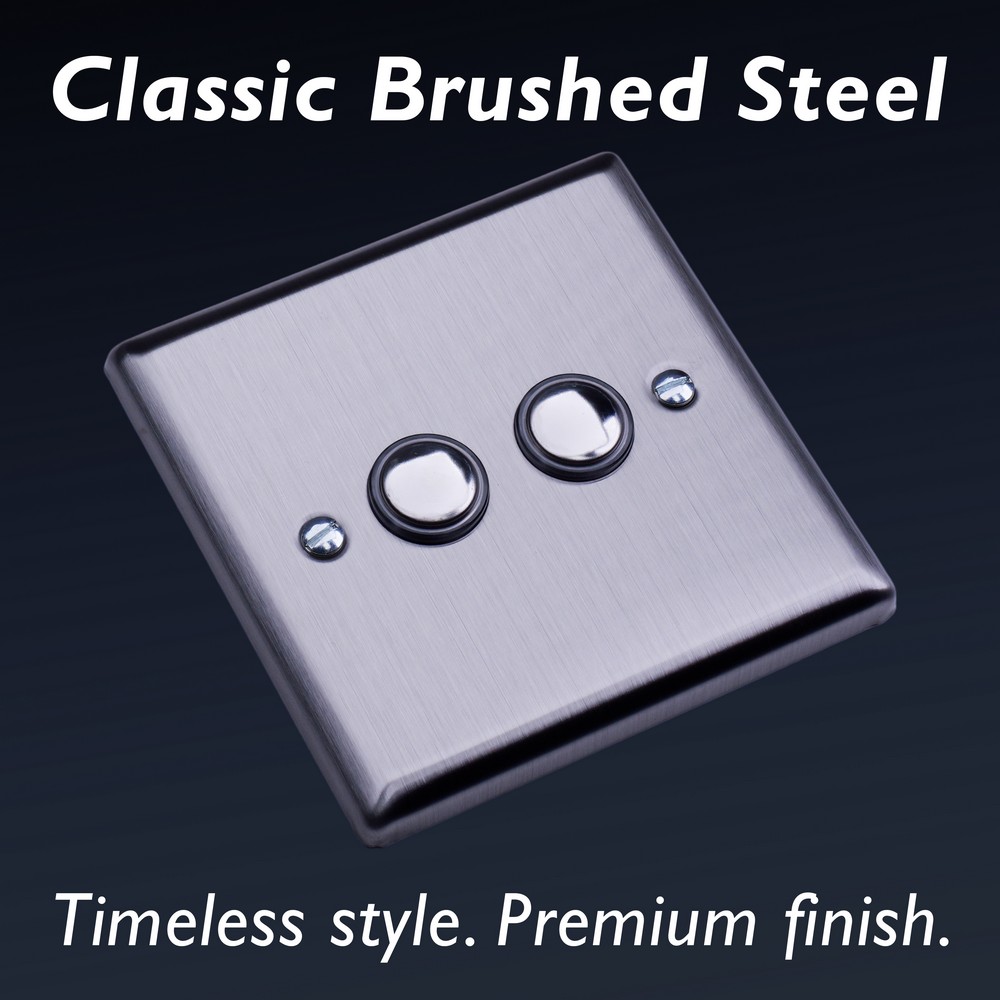

Brushed Steel Finish
With its clean, understated style, Brushed Steel brings effortless sophistication to any room, and is a finish chosen by designers for its versatility. Black or white inserts and rockers are available, or choose matching brushed steel rockers.
