Data Sheet
Product Code: XTDB

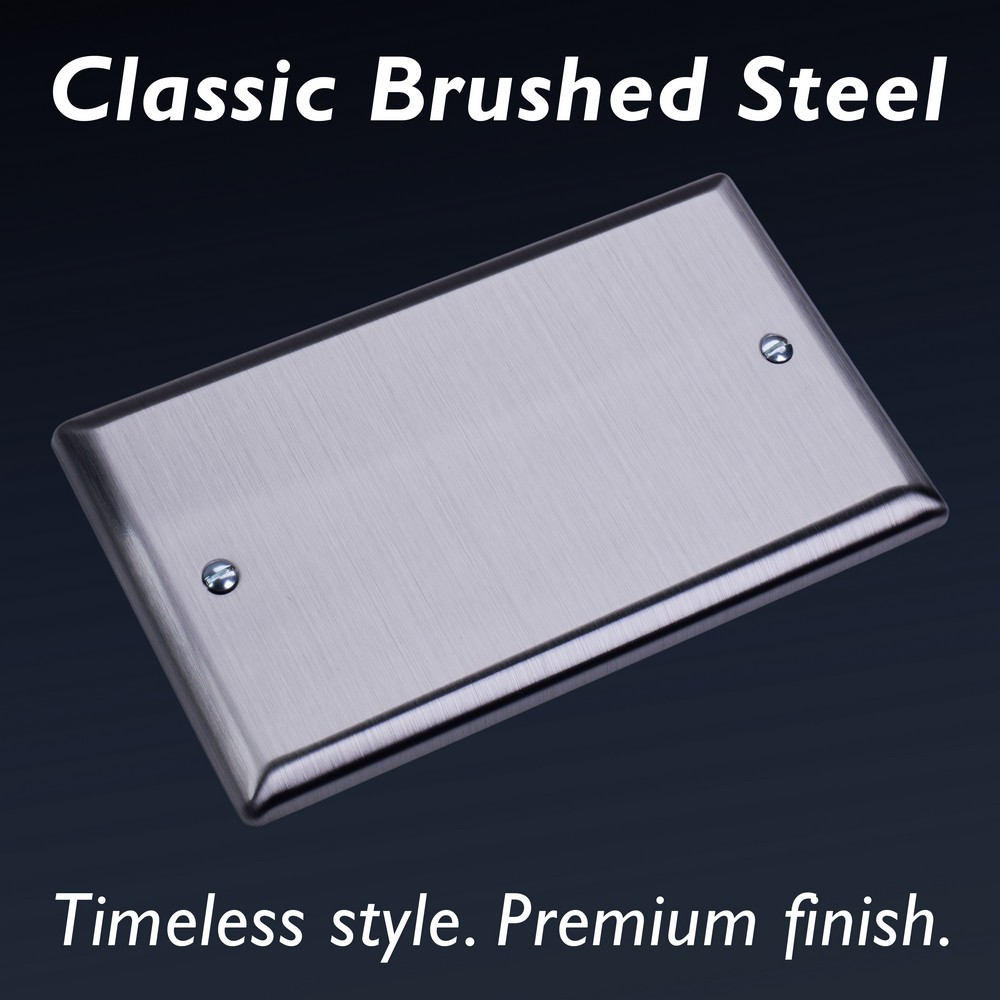

Product Description: Double Blank Plate
Range: Classic
Finish: Brushed Steel
Product Category: Other Items
Barcode: 5021575032789

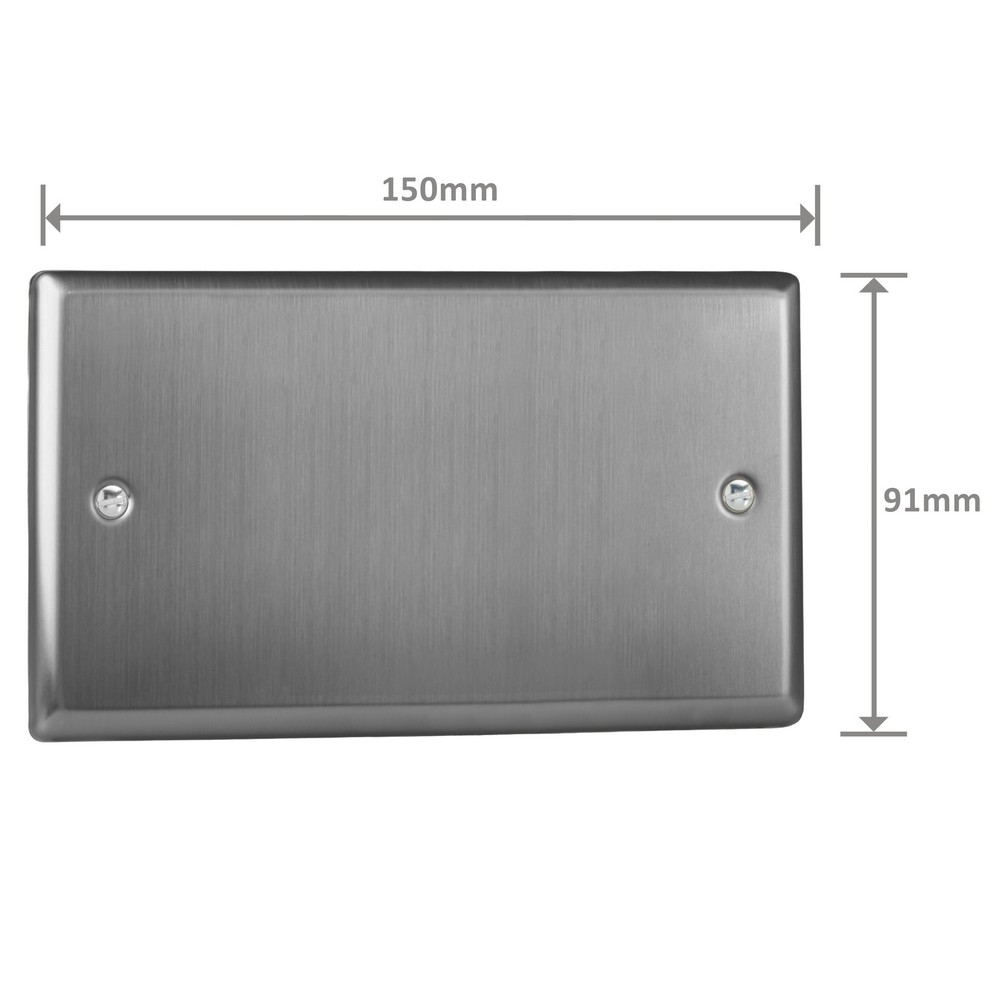

Dimensions: 91x150x11mm
Faceplate Depth: 8mm
Net Weight: 200g
Gross Weight: 202g
Fixing Centres: 120.6mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: 16mm
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Do not use masking tape on any Decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669
Commodity Code: 85381000
Product Features
Used to cover unused wall boxes
Bevelled edge faceplate
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.
Brushed Steel Finish
With its clean, understated style, Brushed Steel brings effortless sophistication to any room ? a finish chosen by designers for its versatility.Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
