Click below to print the data sheet for XGDB
Further information:
Data Sheet
Product Code: XGDB
Product Description: Double Blank Plate
Range: Classic
Finish: Georgian Brass
Product Category: Other Items
Barcode: 5021575750850

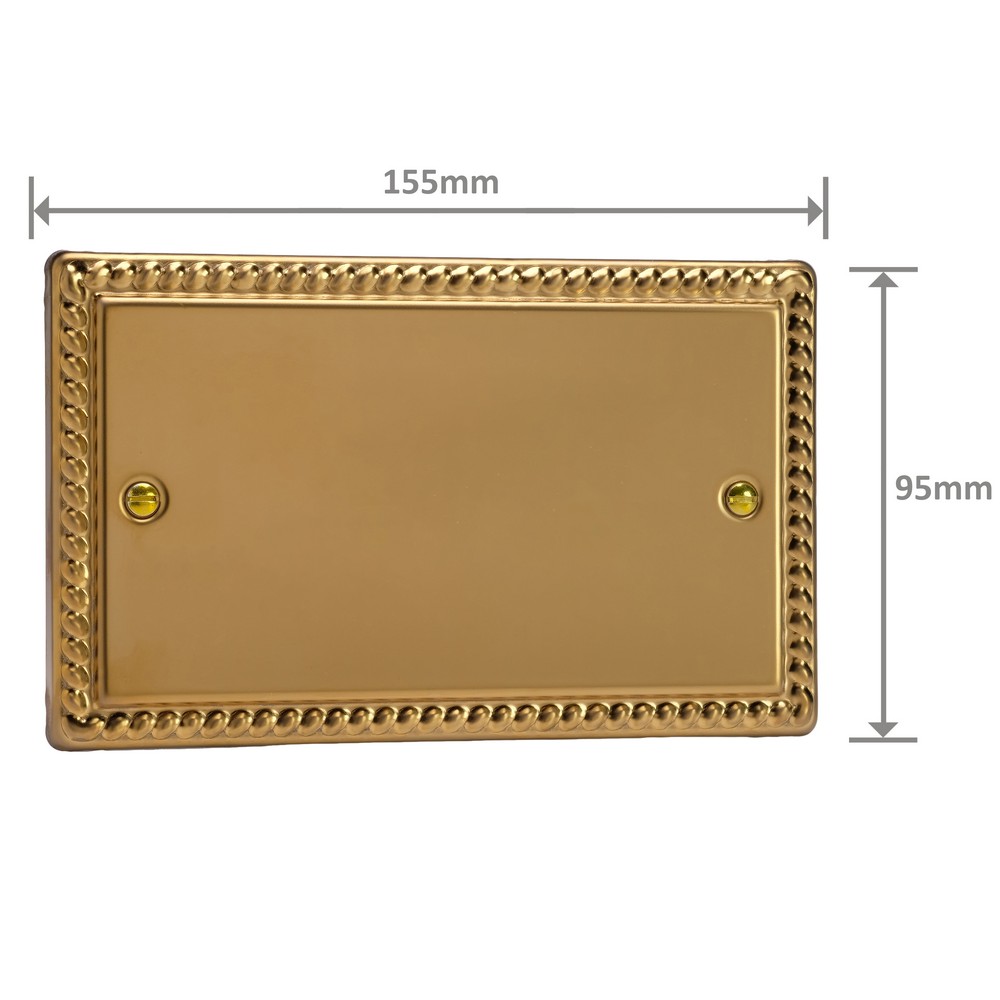

Dimensions: 95x155x11mm
Faceplate Depth: 7mm
Net Weight: 200g
Gross Weight: 202g
Fixing Centres: 120.6mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: 16mm
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669
Commodity Code: 85381000
Product Features
Blanks off an unused wall box neatly
Double size, covers a standard double wall box
Blank off redundant switches and sockets neatly
Finished to match the rest of the range
Bevel-edge faceplate, 7mm deep with brass screws, fits a 16mm back box
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Georgian Brass Finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
