Click below to print the data sheet for XOTMW
Further information:
Data Sheet
Product Code: XOTMW
Product Description: 1-Gang Telephone Master Socket
Range: Value
Finish: Polar White
Product Category: TV and Telephone Sockets
Insert/Knob Colour: White Insert
Barcode: 5021575050943
Dimensions: 85x85x21mm
Faceplate Depth: 5mm
Net Weight: 96g
Gross Weight: 98g
Fixing Centres: 60.3mm
Depth from Mounting Face:
Recommended Back Box Depth: 16mm
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Intended Applications: Indoor Use Only. Data circuits.
Applicable Safety Standard: BS 6312-2
Commodity Code: 85367000
Product Features
Primary socket for where the BT line enters the property
Finished to match the rest of the range
Pairs with matching TV and data sockets
Simple screw terminal connection
Raised profile faceplate, 5mm deep with push-fit screw covers, fits a 16mm back box
Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.
Polar White Finish
The Polar White plastic range offers exceptional value. Push-fit screw covers give the face plate an uncomplicated aesthetic at an affordable price point.

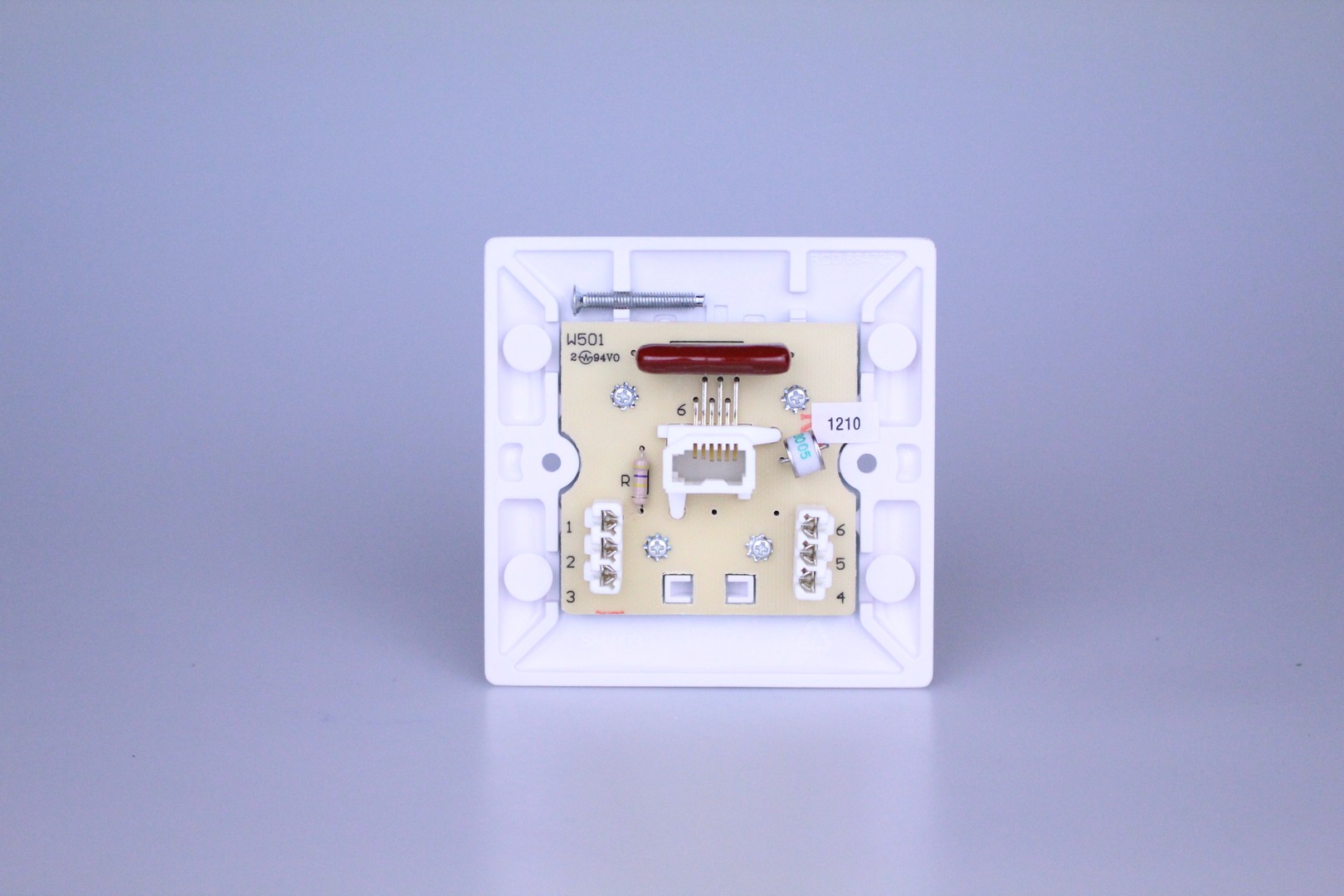

Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
20th September 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
