Click below to print the data sheet for XFBTMW
Further information:
Data Sheet

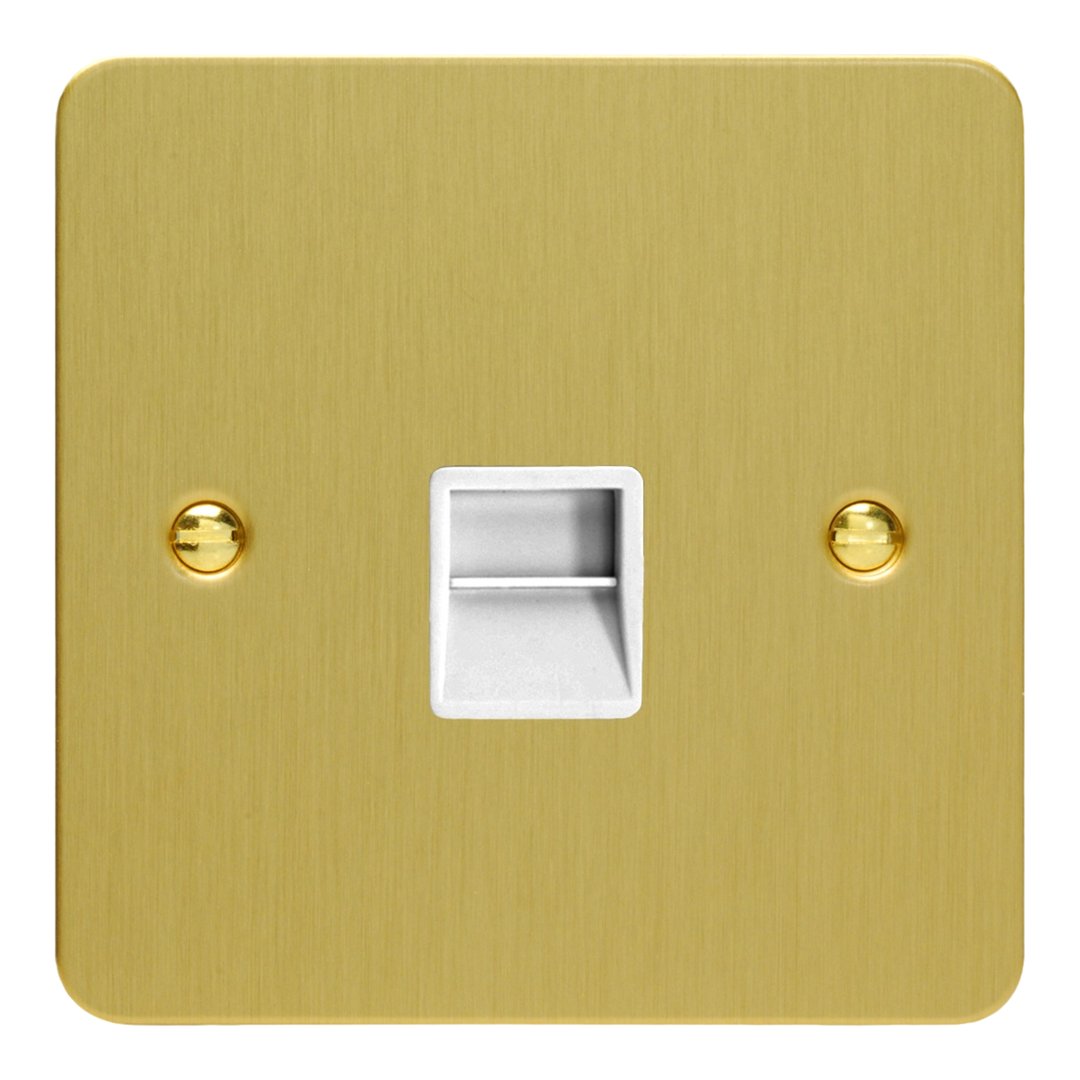

Product Code: XFBTMW
Product Description: 1-Gang Telephone Master Socket
Range: Ultraflat
Finish: Brushed Brass
Product Category: TV and Telephone Sockets
Insert/Knob Colour: White Insert
Barcode: 5021575900941
Dimensions: 89x89x21mm
Faceplate Depth: 1mm
Net Weight: 96g
Gross Weight: 98g
Fixing Centres: 60.3mm
Depth from Mounting Face: 20mm
Recommended Back Box Depth: 25mm
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Intended Applications: Indoor Use Only. Data circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Applicable Safety Standard: BS 6312-2
Commodity Code: 85367000
Product Features
Primary socket for where the BT line enters the property
Finished to match the rest of the range
Pairs with matching TV and data sockets
Simple screw terminal connection
Ultra-slim stainless steel faceplate, just 1mm deep with brass screws, fits a 25mm back box
Ultraflat Collection
The Ultraflat range features a slim profile faceplate and provides an understated modern look. Cut from high quality stainless steel, this minimalist range will enhance any interior design scheme.
Brushed Brass Finish
The elegant Brushed Brass finish is paired with polished brass metal rockers and matching brass screws, with the option of black or white socket inserts.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
