Product Code: XO45PW
Product Description: 45A Cooker Panel with 13A Double Pole Switched Socket Outlet (Red Rocker)
Range: Value
Finish: Polar White
Product Category: Cooker Switches
Insert/Knob Colour: White/Red Insert
Barcode: 5021575050387
Dimensions: 85x146x35mm
Faceplate Depth: 5mm
Net Weight: 330g
Gross Weight: 332g
Fixing Centres: 120.6mm
Depth from Mounting Face:
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 45A
Maximum Current Rating: 45A
Terminal (Live) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Neutral) Diameter: 6.4mm; Capacity: 2 x 10mm²
Intended Applications: Indoor Use Only. Domestic power supply.
Applicable Safety Standard: BS 4177
Commodity Code: 85389091
Product Features
Double pole switching for safer operation
Double sized plate with 13A socket
Durable white plastic faceplate is anti-bacterial and fully biodegradable
Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.
Polar White Finish
The Polar White plastic range offers exceptional value. Push-fit screw covers give the face plate a uncomplicated aesthetic at an affordable price point.

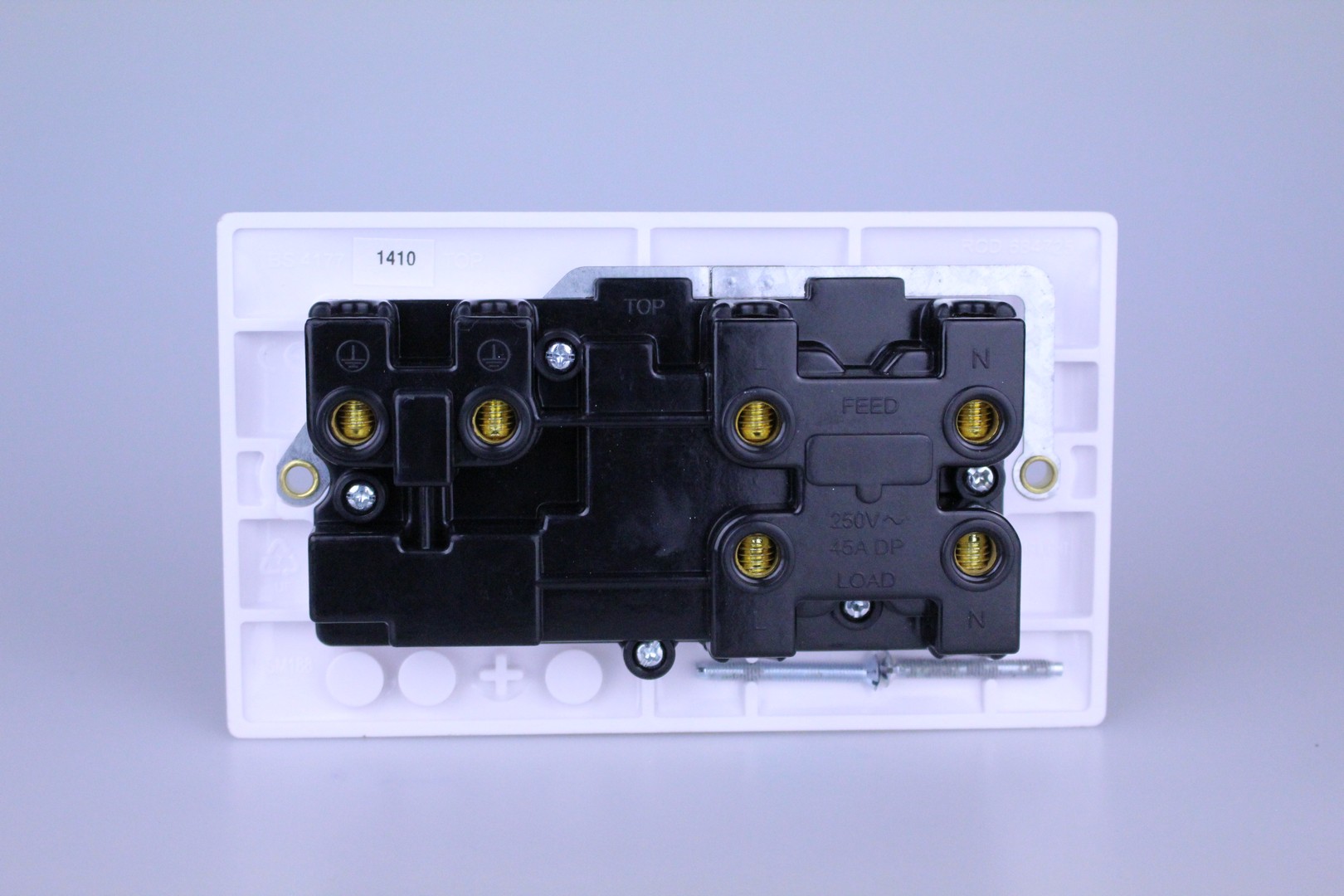

Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
