Data sheet: XK45NBEW

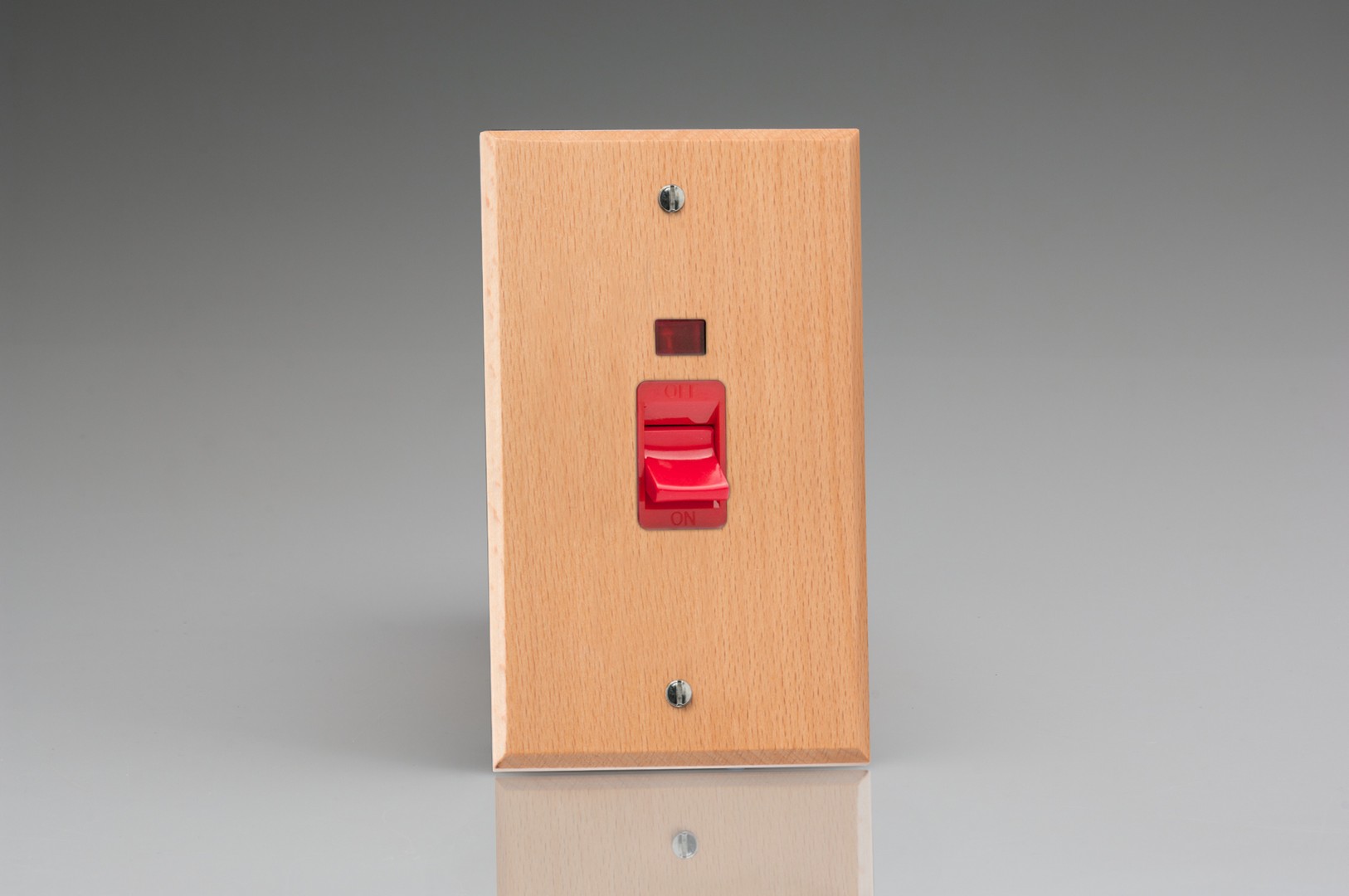

45A Cooker Switch with Neon (Vertical Twin Plate/ Red Rocker), Kilnwood Scandic Beech (XK45NBEW)

Data sheet

XK45NBEW 45A Cooker Switch with Neon (Vertical Twin Plate/ Red Rocker)

Range Kilnwood Finish Scandic Beech

Product features

Double pole switching isolates live and neutral for added safety
Neon indicator shows at a glance when it's on
Double size vertical plate
45A rated
Solid timber faceplate, 15mm deep, fits a 25mm back box

Product

Product code: XK45NBEW
Category: Cooker Switches
Range: Kilnwood
Finish: Scandic Beech
Insert / knob colour: Red Insert
Barcode: 5021575970692

Size and fitting

Dimensions: 96x156x35mm
Faceplate depth: 15mm
Fixing centres: 120.6mm
Recommended back box depth: 25mm
Net weight: 200g
Gross weight: 202g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: Cooker Switch: 45A
Maximum current rating: 45A
Terminal (Live): 6.4mm, capacity 2 x 10mm²
Terminal (Neutral): 6.4mm, capacity 2 x 10mm²
Terminal (Earth): 5.4mm, capacity 2 x 10mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS EN 60669-1
Commodity code: 85389091

Declaration of Conformity

Kilnwood collection

The beautifully hand finished Kilnwood switches will give a unique distinctive style to any interior. All of the timber used in the Kilnwood range is sourced from the most eco-friendly and well managed forests, ensuring quality coupled with sustainability.

Scandic Beech finish

With its subtle, yet natural grain, the Beech finish provides a uniform look. Its warm, natural tones and soft character enhance the ambiance of any space.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
