Data Sheet

Product Code: XDY45NS.BZ

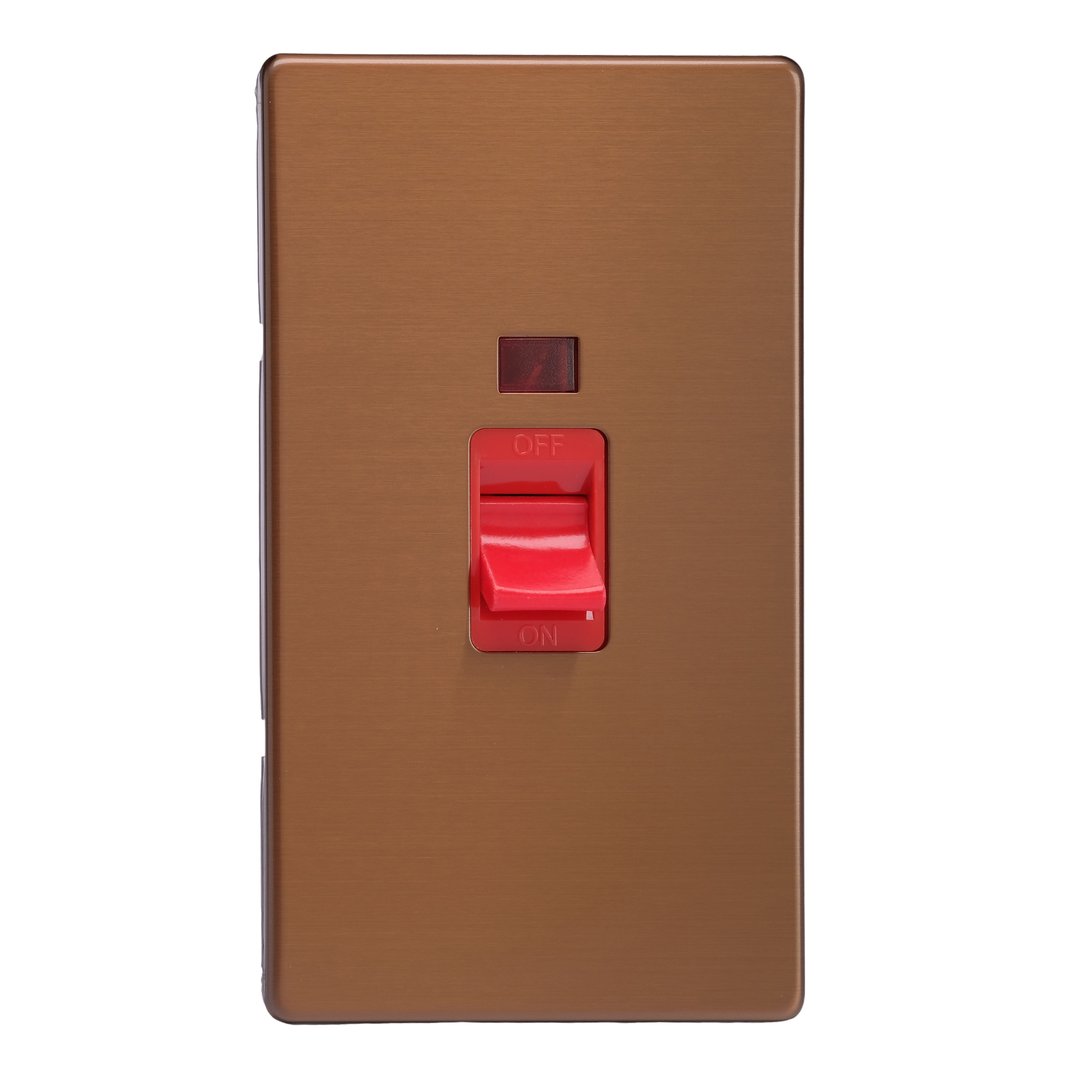

Product Description: 45A Cooker Switch with Neon (Vertical Twin Plate/ Red Rocker)

Range: Urban Screwless

Finish: Brushed Bronze

Product Category: Cooker Switches

Insert/Knob Colour: Red Insert

Barcode: 5021575193862

Dimensions: 86x147x35mm

Faceplate Depth: 4mm

Net Weight: 270g

Gross Weight: 272g

Fixing Centres: 120.6mm

Depth from Mounting Face: 24.8mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Cooker Switch: 45A

Maximum Current Rating: 45A

Terminal (Live) Diameter: 6.4mm; Capacity: 2 x 10mm²

Terminal (Neutral) Diameter: 6.4mm; Capacity: 2 x 10mm²

Terminal (Earth) Diameter: 5.4mm; Capacity: 2 x 10mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85389091

Declaration of Conformity

Product Features

  Double pole switching isolates live and neutral for added safety

  Neon indicator shows at a glance when it's on

  Double size vertical plate

  45A rated

  Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 35mm back box

Urban Screwless Collection
The Urban Screwless range is inspired by the latest trends in interior design, bringing an edge to stylish spaces. Each finish is presented on a low profile faceplate, with hidden fixings contributing to an understated aesthetic.

Brushed Bronze Finish
Offering a contemporary take on a classical finish, and paired with black inserts, Brushed Bronze suits both traditional and modern spaces.
