Data Sheet
Product Code: XIF45C

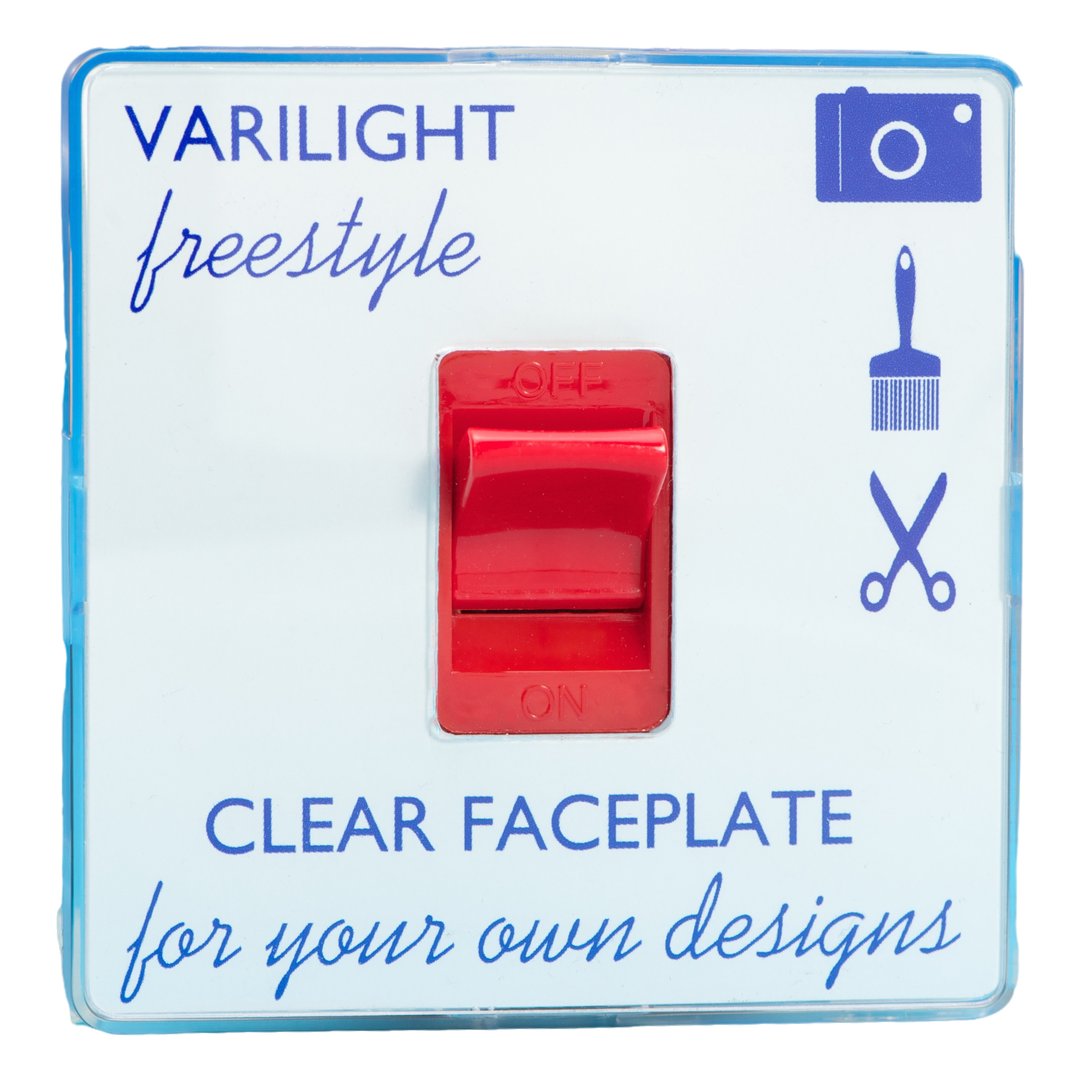

Product Description: 45A Cooker Switch (Single Plate/ Red Rocker)
Range: Freestyle
Finish: Clear
Product Category: Cooker Switches
Insert/Knob Colour: Red Insert
Barcode: 5021575968484
Dimensions: 86x86x35mm
Faceplate Depth: 4mm
Net Weight: 126g
Gross Weight: 128g
Fixing Centres: 60.3mm
Depth from Mounting Face: 19.4mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Cooker Switch: 45A | Socket: 13A
Maximum Current Rating: 45A
Terminal (Live) Diameter: 6.4mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 6.4mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 5.4mm; Capacity: 4 x 2.5mm²
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85389091
Product Features
Double pole switching isolates live and neutral for added safety
Single size plate
45A rated
Isolates both live and neutral for added safety
Clear faceplate, just 4mm deep with brass screws, fits a 35mm back box
Freestyle Collection
Freestyle faceplates are made from clear polycarbonate, letting you create a completely bespoke look by placing your own design, wallpaper or fabric behind the plate. Choose the accessory you need and design the rest yourself.
Clear Finish
A clear polycarbonate faceplate with chrome rockers and dimmer knobs. Place your own design behind the plate to create something completely unique.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
13th October 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
