Data Sheet
Product Code: XB45S
Product Description: 45A Cooker Switch (Single Plate/ Red Rocker)
Range: Classic
Finish: Brushed Brass
Product Category: Cooker Switches
Insert/Knob Colour: Red Insert
Barcode: 5021575011678

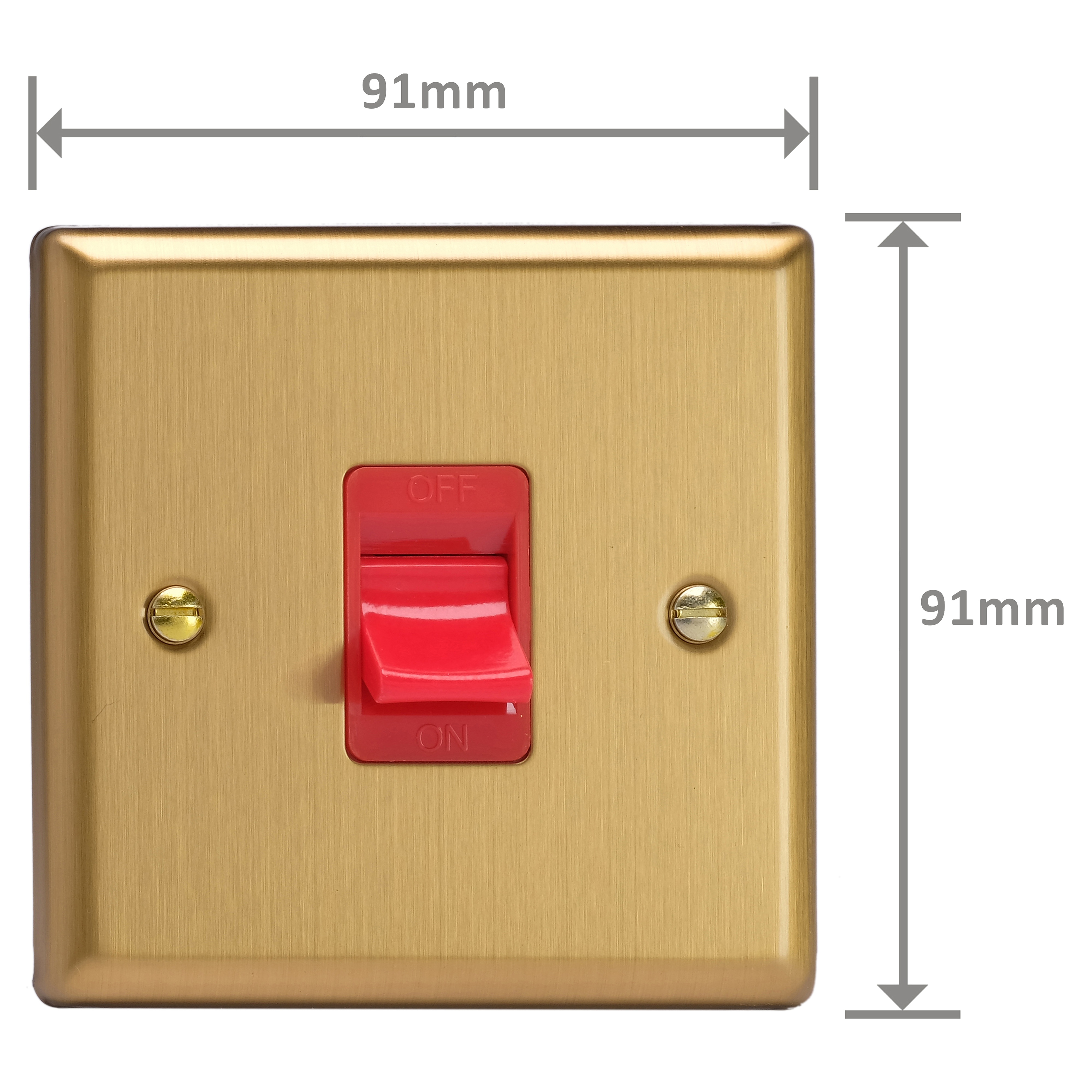

Dimensions: 91x91x35mm
Faceplate Depth: 8mm
Net Weight: 176g
Gross Weight: 178g
Fixing Centres: 60.3mm
Depth from Mounting Face: 19.4mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Cooker Switch: 45A
Maximum Current Rating: 45A
Terminal (Live) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Neutral) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Earth) Diameter: 5.4mm; Capacity: 2 x 10mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85389091
Product Features
Double pole switching isolates live and neutral for added safety
Single size plate
45A rated
Isolates both live and neutral for added safety
Bevel-edge faceplate, 8mm deep with brass screws, fits a 35mm back box
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Brushed Brass Finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts and rockers are available, or choose polished brass rockers for an added touch of class.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
20th September 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
