Data sheet: XGRP15AB

Data sheet

XGRP15AB 1-Gang 15A Round Pin Socket

Product features

  • 15A round pin socket
  • Puts table and standard lamps on the light switch
  • Classic round pin fitting in a finish to match the room
  • Bevel-edge faceplate, 7mm deep with brass screws, fits a 25mm back box

Product

Product code
XGRP15AB
Category
Round Pin Sockets
Range
Classic
Finish
Georgian Brass
Insert / knob colour
Black Insert
Barcode
5021575750881

Size and fitting

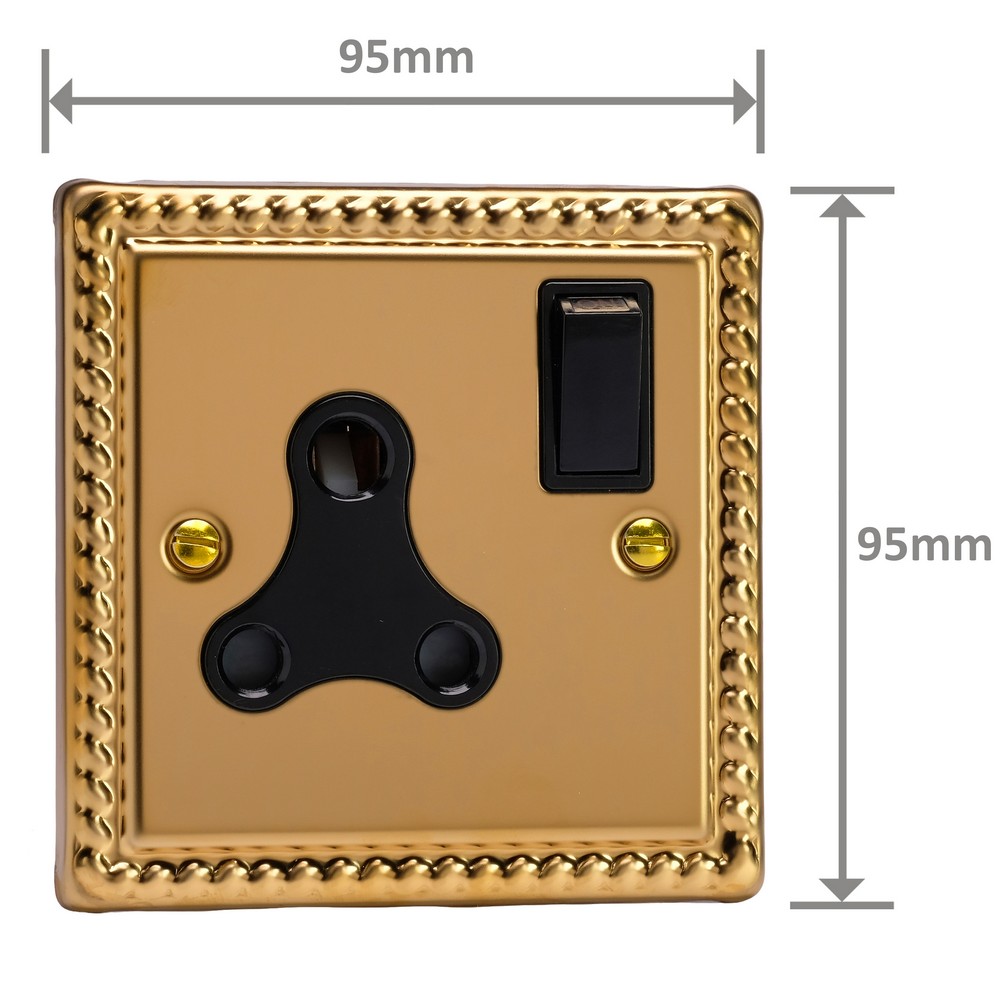

Dimensions
95x95x35mm
Faceplate depth
7mm
Fixing centres
60.3mm
Depth from mounting face
22.2mm
Recommended back box depth
25mm
Net weight
166g
Gross weight
168g

Electrical

Operating voltage
230V 50Hz
Maximum load rating
15A
Maximum current rating
15A
Terminal (Live)
5.5mm, capacity 4 x 2.5mm²
Terminal (Neutral)
5.5mm, capacity 4 x 2.5mm²
Terminal (Earth)
5.5mm, capacity 4 x 2.5mm²

Safety and compliance

Intended applications
Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice
Product Must Be Earthed.
Applicable safety standard
BS 546
Commodity code
85366990

Classic collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

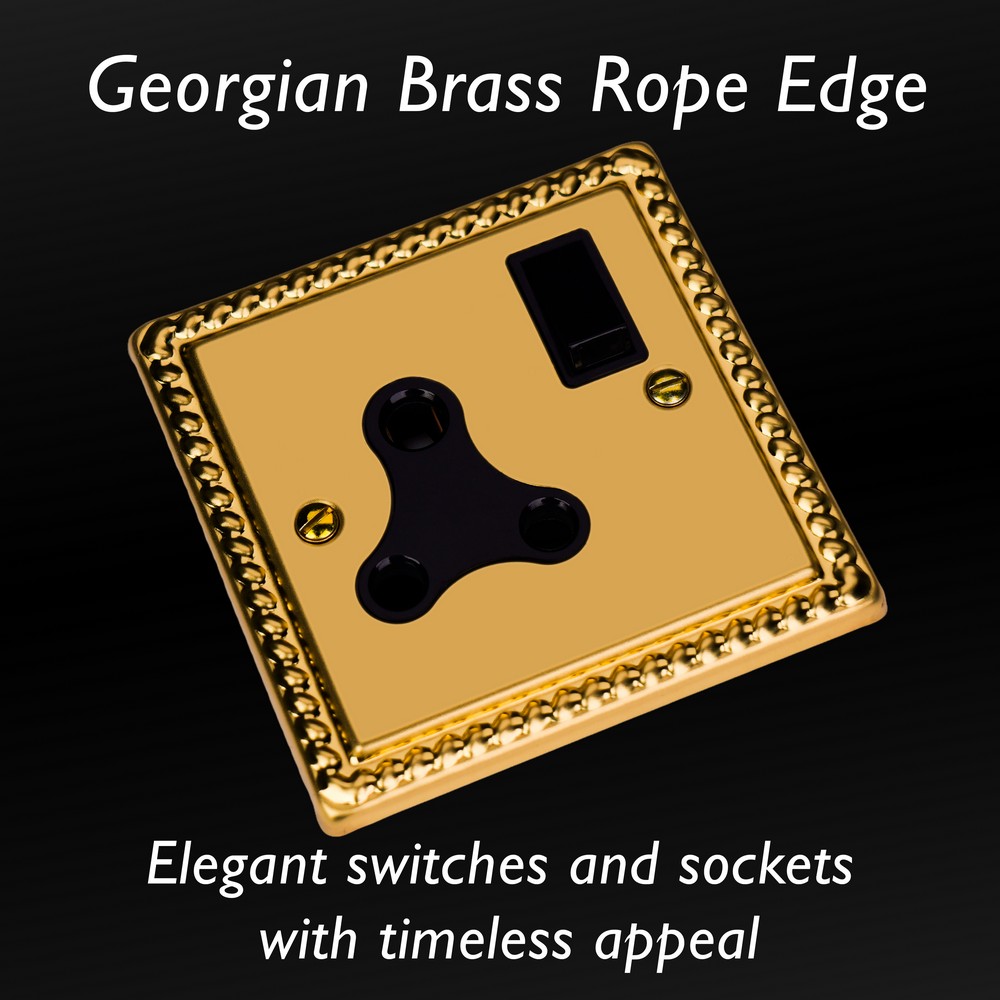

Georgian Brass finish

Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 18th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
