Data sheet: XG5U2SB

Data sheet

XG5U2SB Double Socket with 2 x 12W Shared USB A Charging Ports

Double Switched Plug Socket With USB Charging

Product features

  • 2 x 12W shared USB-A charging ports
  • Charges phones, tablets, cameras and more, no plug adaptor needed
  • Both sockets stay free for other appliances
  • Able to switch off for added safety and power saving
  • Dual earth terminals for a secure earth connection
  • Bevel-edge faceplate, 7mm deep with brass screws, fits a 25mm back box

Product

Product code
XG5U2SB
Category
Sockets with USB A Charging
Range
Classic
Finish
Georgian Brass
Insert / knob colour
Black Insert
Barcode
5021575752564

Size and fitting

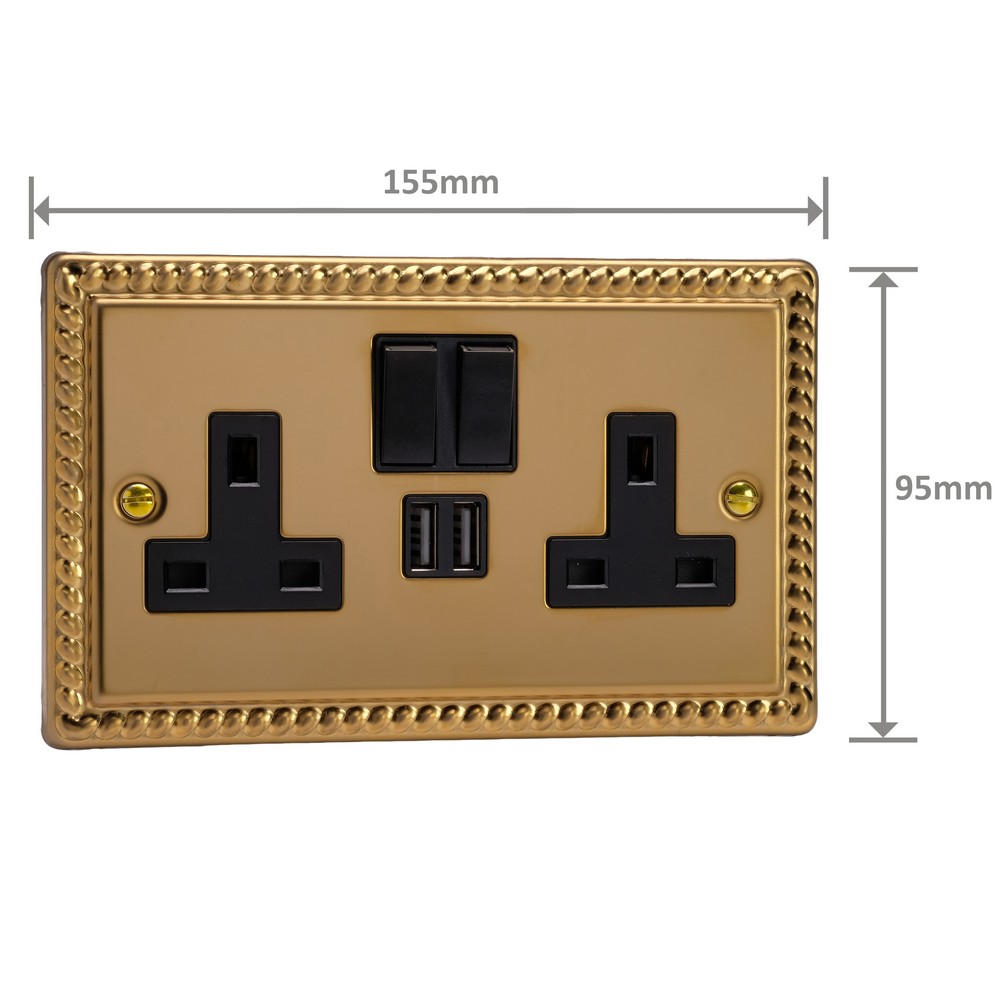

Dimensions
95x155x31mm
Faceplate depth
7mm
Fixing centres
120.6mm
Depth from mounting face
17.8mm
Recommended back box depth
25mm
Net weight
220g
Gross weight
222g

Electrical

Operating voltage
230V 50Hz
Maximum load rating
USB: 12W
Maximum current rating
13A
Terminal (Live)
4.8mm, capacity 4 x 2.5mm²
Terminal (Neutral)
4.8mm, capacity 4 x 2.5mm²
Terminal (Earth)
4.8mm, capacity 4 x 2.5mm²

Safety and compliance

Intended applications
Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice
Please note recommended back box depth relies on efficient cable routing. Product Must Be Earthed.
Applicable safety standard
BS 1363-2
Commodity code
85366990

Classic collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Georgian Brass finish

Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 18th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
