Data sheet: XG45PW
Data sheet
XG45PW 45A Cooker Panel with 13A Double Pole Switched Socket Outlet (Red Rocker)
Cooker Switch With Switched Socket Outlet
Product features
- Double pole switching isolates live and neutral for added safety
- Double size plate with a 13A socket alongside
- 45A rated
- Isolates both live and neutral for added safety

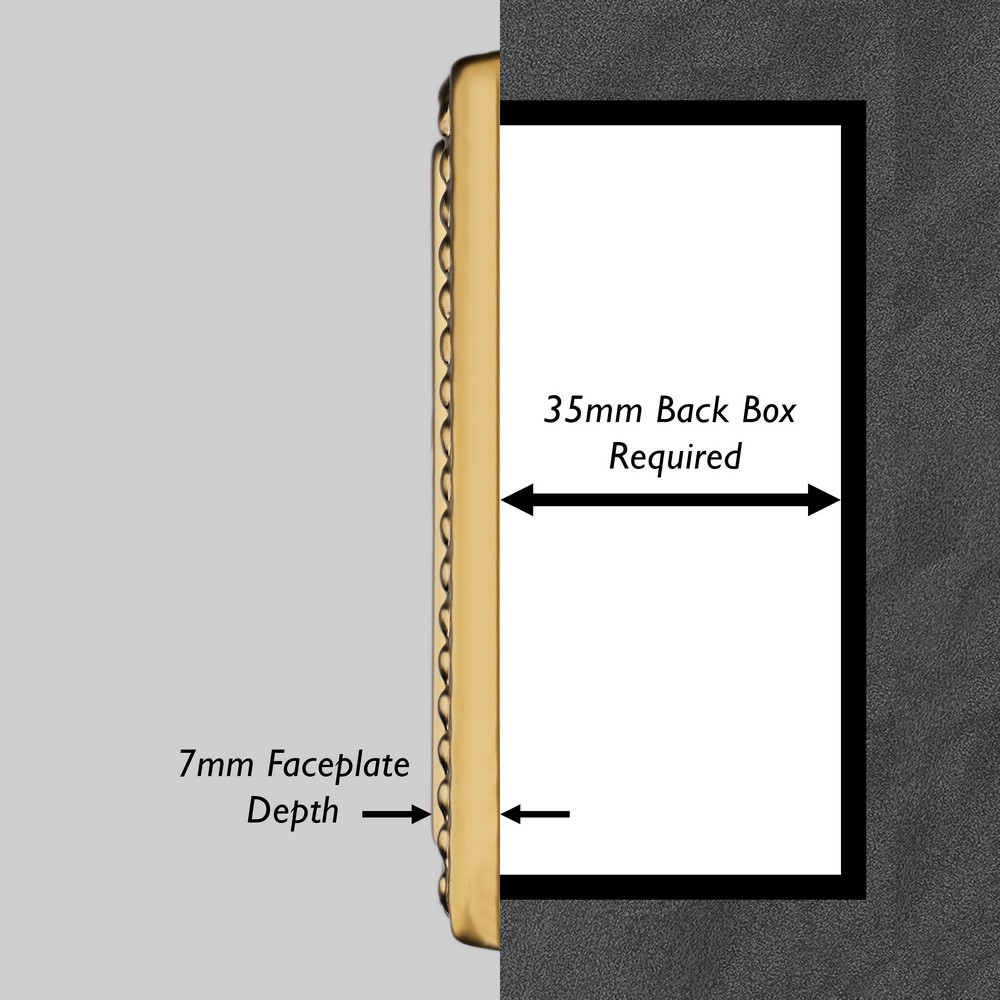

- Bevel-edge faceplate, 7mm deep with brass screws, fits a 35mm back box
Product
- Product code
- XG45PW
- Category
- Cooker Switches
- Range
- Classic
- Finish
- Georgian Brass
- Insert / knob colour
- White/Red Insert
- Barcode
- 5021575750386
Size and fitting
- Dimensions

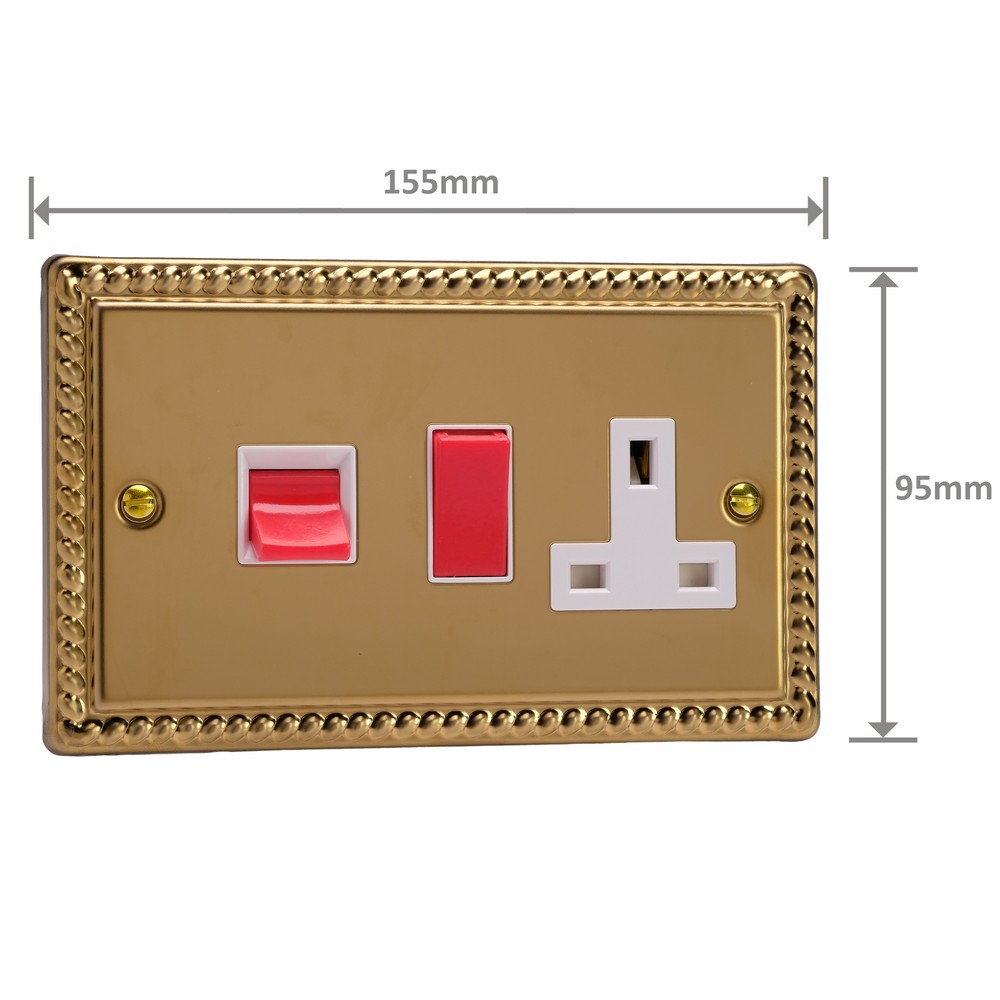

- 95x155x35mm
- Faceplate depth
- 7mm
- Fixing centres
- 120.6mm
- Depth from mounting face
- 18.7mm
- Recommended back box depth
- 35mm
- Net weight
- 330g
- Gross weight
- 332g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- Cooker Switch: 45A | Socket: 13A
- Maximum current rating
- 45A
- Terminal (Live)
- 6.4mm, capacity 2 x 10mm²
- Terminal (Neutral)
- 6.4mm, capacity 2 x 10mm²
- Terminal (Earth)
- 6.4mm, capacity 2 x 10mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Product Must Be Earthed.
- Applicable safety standard
- BS 4177
- Commodity code
- 85389091
Classic collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

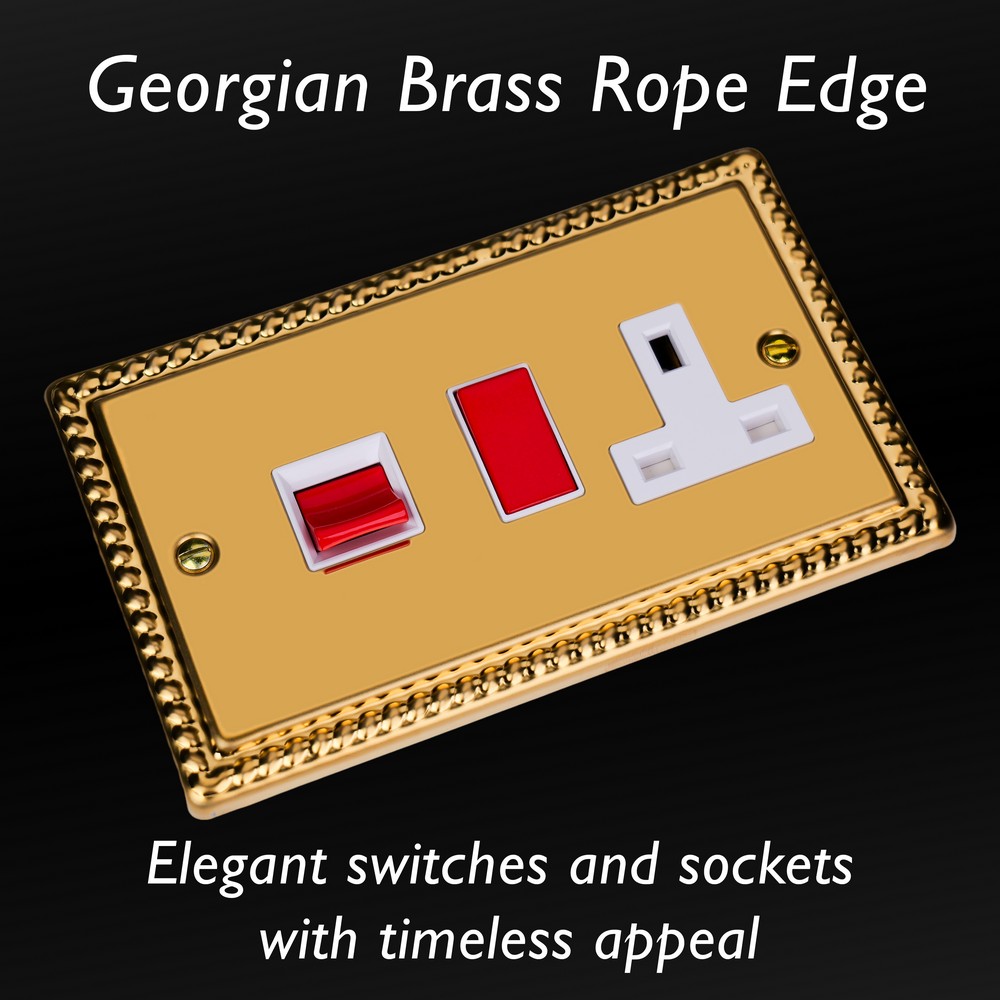

Georgian Brass finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 20th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
