Data Sheet
Product Code: XG45N
Product Description: 45A Cooker Switch with Neon (Vertical Twin Plate/ Red Rocker)
Range: Classic
Finish: Georgian Brass
Product Category: Cooker Switches
Insert/Knob Colour: Red Insert
Barcode: 5021575750355

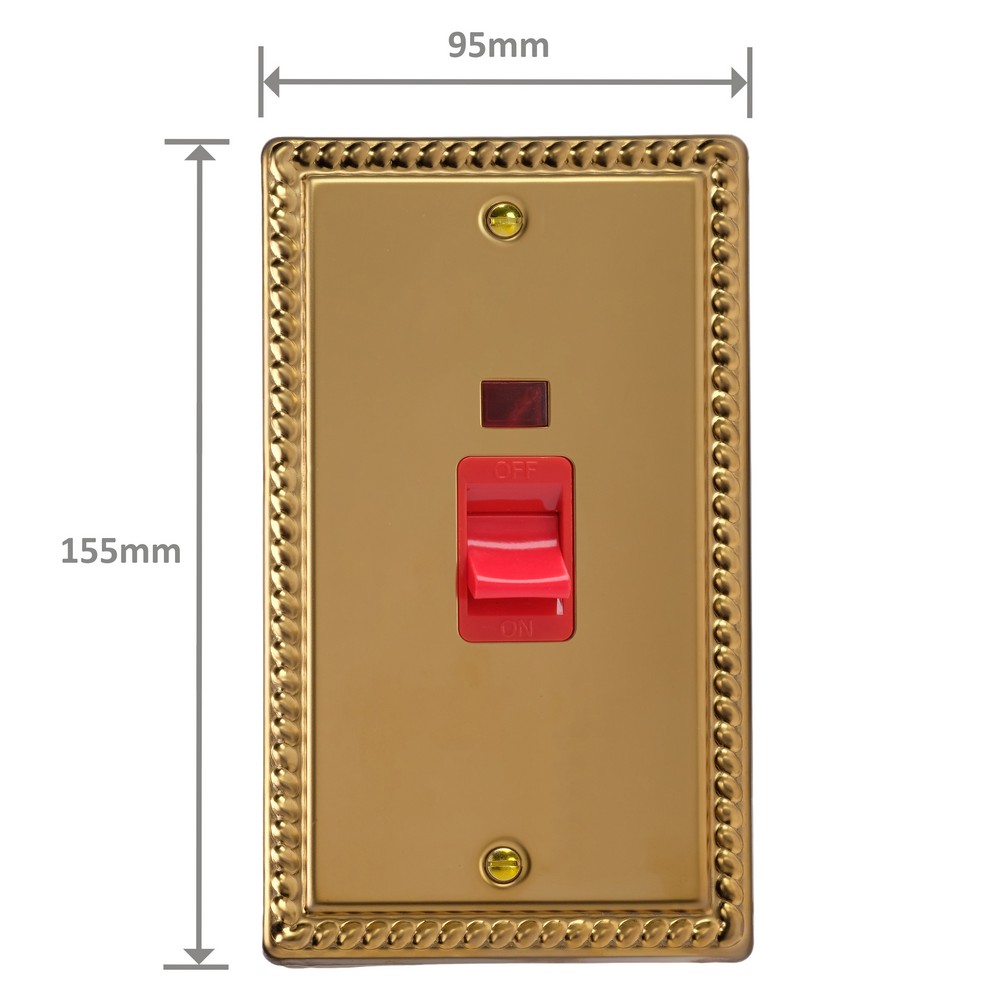

Dimensions: 155x95x35mm
Faceplate Depth: 7mm
Net Weight: 266g
Gross Weight: 268g
Fixing Centres: 120.6mm
Depth from Mounting Face: 18.6mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Cooker Switch: 45A
Maximum Current Rating: 45A
Terminal (Live) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Neutral) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Earth) Diameter: 5.4mm; Capacity: 2 x 10mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85389091
Product Features
Double pole switching isolates live and neutral for added safety
Neon indicator shows at a glance when it's on
Double size vertical plate
45A rated
Bevel-edge faceplate, 7mm deep with brass screws, fits a 35mm back box
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Georgian Brass Finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
03rd October 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
