Data Sheet

Product Code: XFI45N

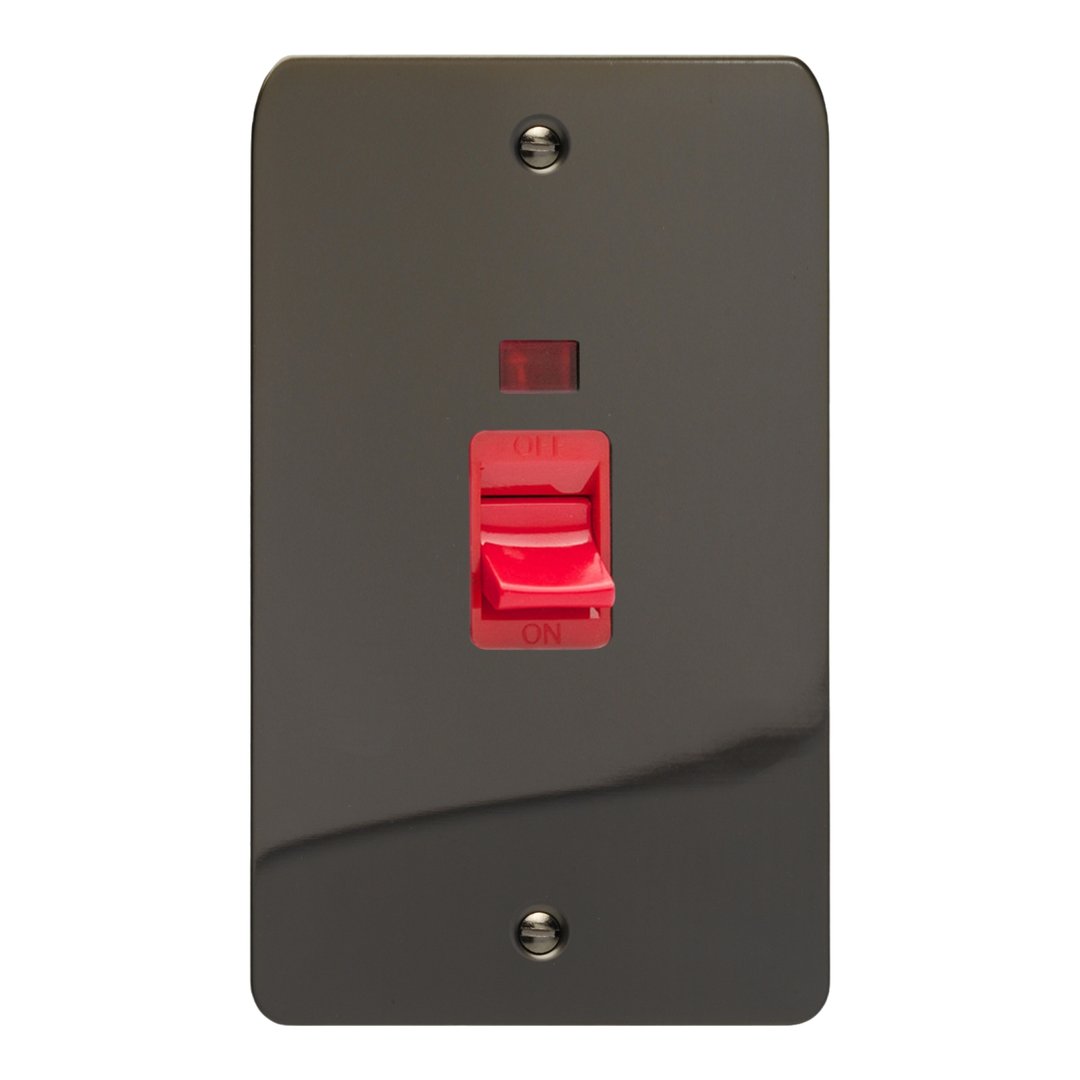

Product Description: 45A Cooker Switch with Neon (Vertical Twin Plate/ Red Rocker)

Range: Ultraflat

Finish: Iridium

Product Category: Cooker Switches

Insert/Knob Colour: Red Insert

Barcode: 5021575280357

Dimensions: 149x89x35mm

Faceplate Depth: 1mm

Net Weight: 266g

Gross Weight: 268g

Fixing Centres: 120.6mm

Depth from Mounting Face: 26.4mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Cooker Switch: 45A

Maximum Current Rating: 45A

Terminal (Live) Diameter: 6.4mm; Capacity: 2 x 10mm²

Terminal (Neutral) Diameter: 6.4mm; Capacity: 2 x 10mm²

Terminal (Earth) Diameter: 5.4mm; Capacity: 2 x 10mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85389091

Declaration of Conformity

Product Features

  Double pole switching isolates live and neutral for added safety

  Neon indicator shows at a glance when it's on

  Double size vertical plate

  45A rated

  Ultra-slim stainless steel faceplate, just 1mm deep with iridium screws, fits a 35mm back box

Ultraflat Collection
The Ultraflat range features a slim profile faceplate and provides an understated modern look. Cut from high quality stainless steel, this minimalist range will enhance any interior design scheme.

Iridium Finish
The Iridium Black finish lends an air of sophistication and modernity with its deep, lustrous tone adding a touch of drama to stylish interiors. Supplied with black inserts and matching iridium rockers.
