Data sheet: XDYP4S.PD
Data sheet

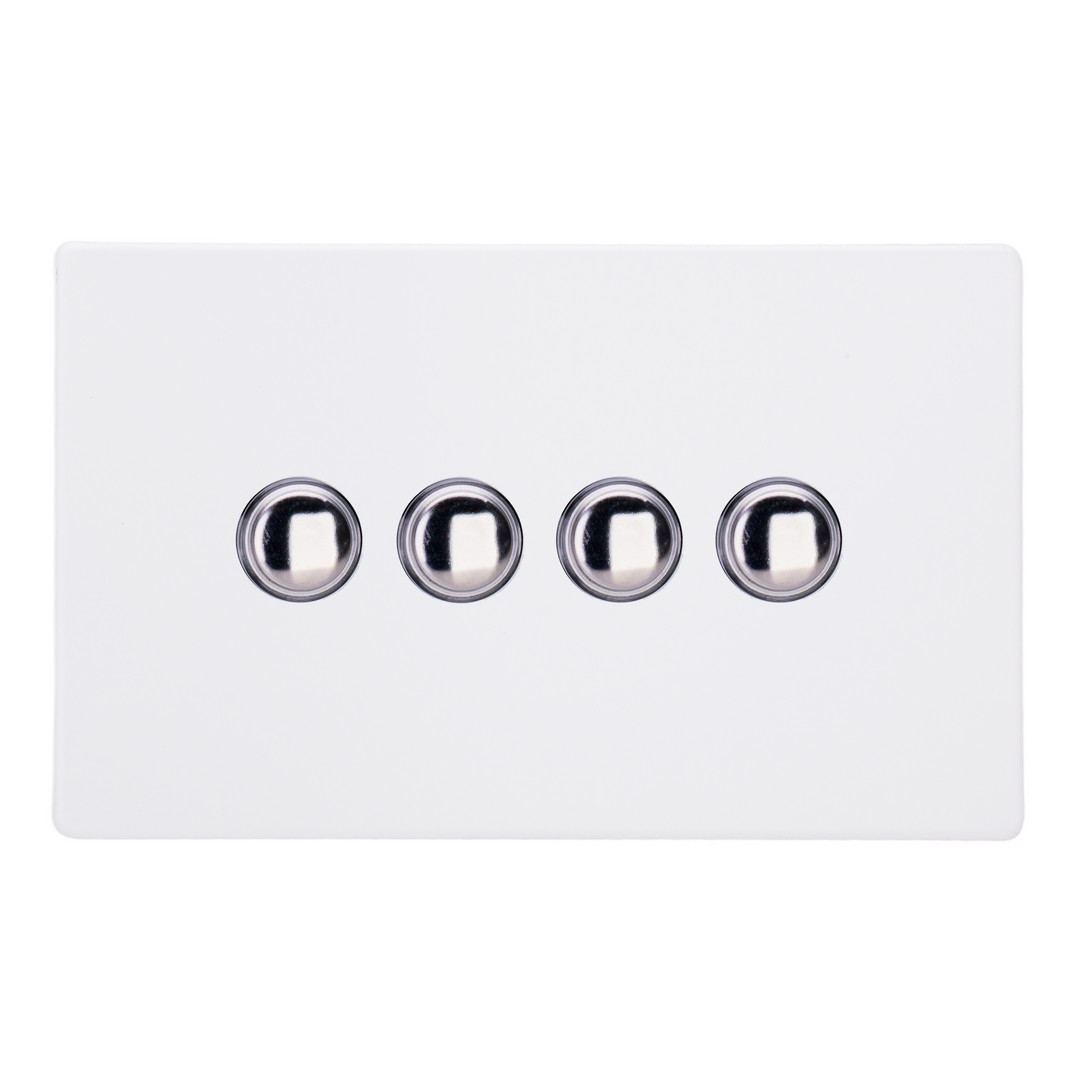

XDYP4S.PD 4-Gang 6A 1- or 2-Way Push On/Off Impulse Switch (Twin Plate)
Quad Impulse Light Switch 2-Way
Product features
- Press once for on, once for off, in 1- or 2-Way circuits
- Stylish round push button
- Suitable for controlling both mains and low voltage lighting
- 6A rated
- Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 25mm back box
Product
- Product code
- XDYP4S.PD
- Category
- Impulse Switches
- Range
- Screwless
- Finish
- Primed Paintable
- Insert / knob colour
- Chrome Buttons
- Barcode
- 5021575035070
Size and fitting

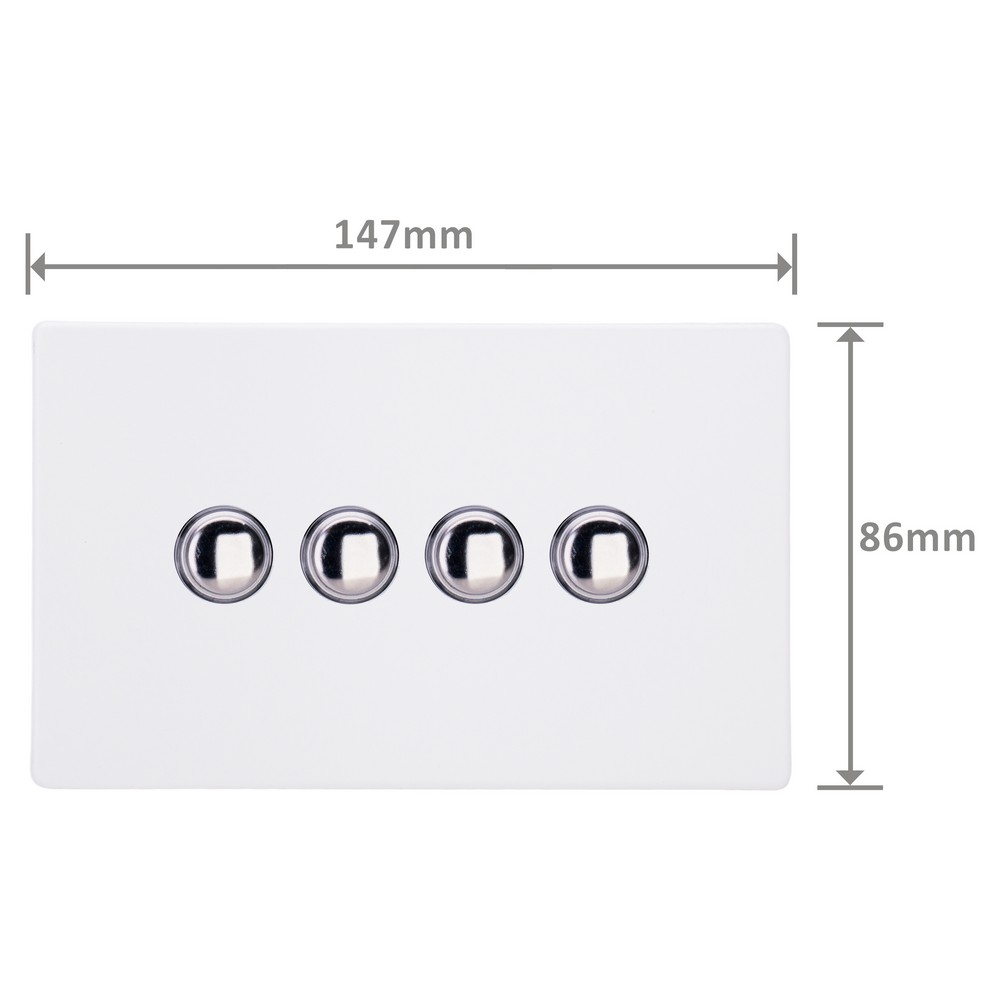

- Dimensions
- 86x147x23mm
- Faceplate depth
- 4mm
- Fixing centres
- 120.6mm
- Depth from mounting face
- 17mm
- Recommended back box depth
- 25mm
- Net weight
- 200g
- Gross weight
- 202g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- 6A
- Maximum current rating
- 6A
- Terminal (Live)
- 3mm, capacity 3 x 1.5mm²
- Terminal (Earth)
- 3.3mm, capacity 3 x 1.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Product Must Be Earthed.
- Applicable safety standard
- BS EN 60669-1
- Commodity code
- 85365007
Screwless collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.
Primed Paintable finish
Primed metal faceplates are supplied ready to paint, so that customers can choose colours to coordinate perfectly with their decor, creating a completely unique product that stands out from the crowd.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 17th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
