Data Sheet
Product Code: XDYFOS.PD

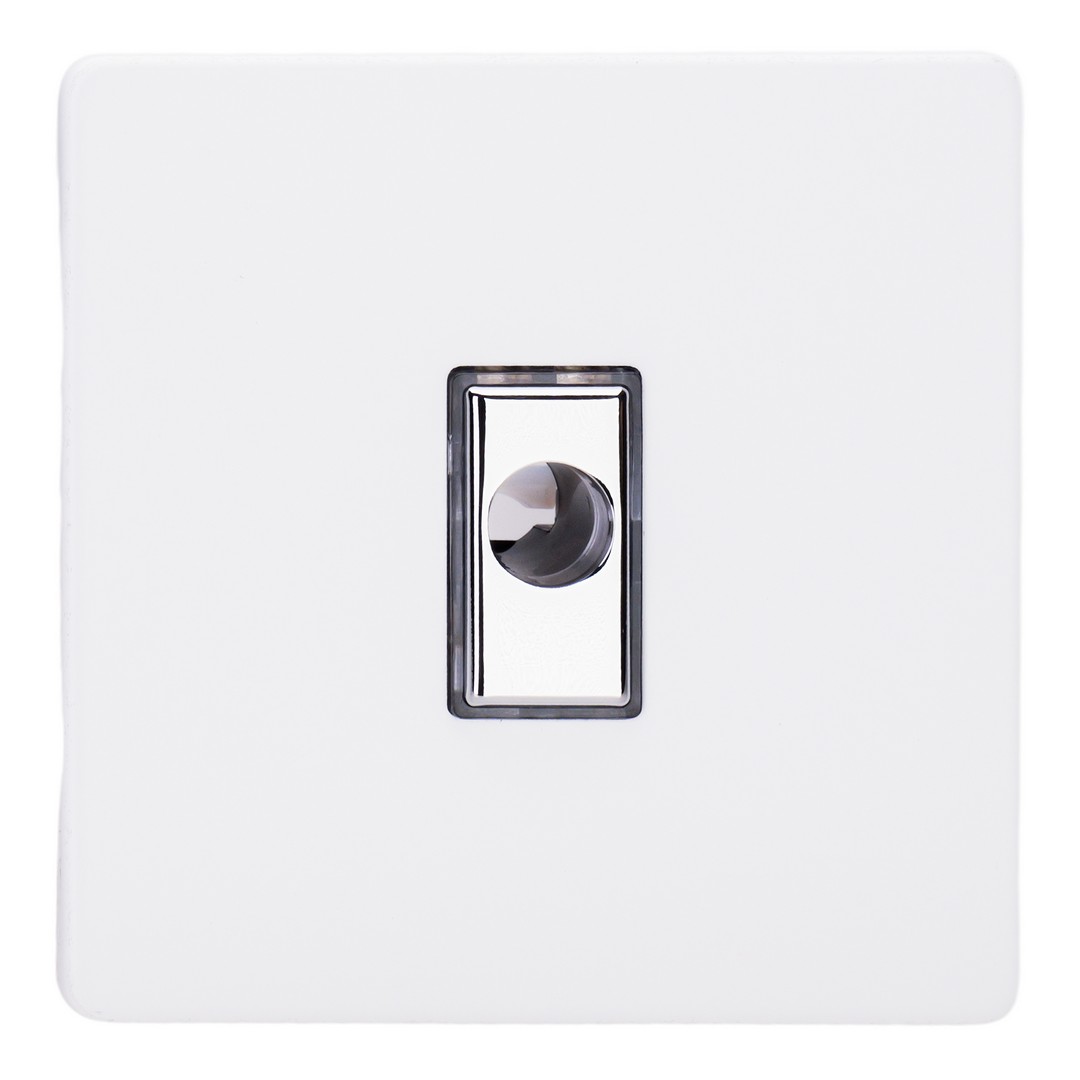

Product Description: 16A Flex Outlet Plate
Range: Screwless
Finish: Primed Paintable
Product Category: Other Items
Insert/Knob Colour: Chrome Insert
Barcode: 5021575034790

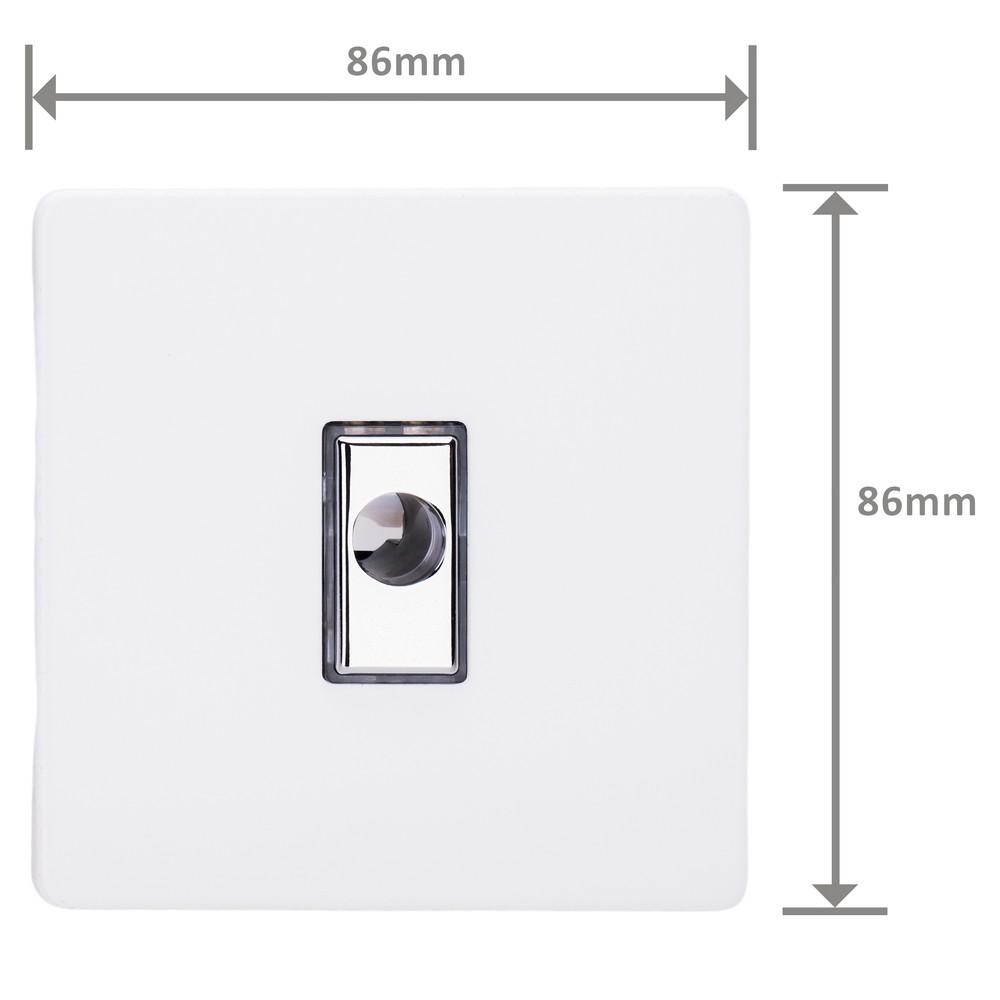

Dimensions: 86x86x34mm
Faceplate Depth: 4mm
Net Weight: 116g
Gross Weight: 118g
Fixing Centres: 60.3mm
Depth from Mounting Face: 30.4mm
Recommended Back Box Depth: 25mm
Operating Voltage: N/A
Maximum Load Rating: 16A
Maximum Current Rating: 16A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85389091
Product Features
Connects fixed appliances via a flex, with no plug in sight
Cable clamp keeps the flex secure
Ideal for boilers, heaters and cooker hoods
Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 25mm back box
Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.
Primed Paintable Finish
Primed metal faceplates are supplied ready to paint, so that customers can choose colours to coordinate perfectly with their decor, creating a completely unique product that stands out from the crowd.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
03rd October 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
