Data Sheet
Product Code: XYFOB.MB

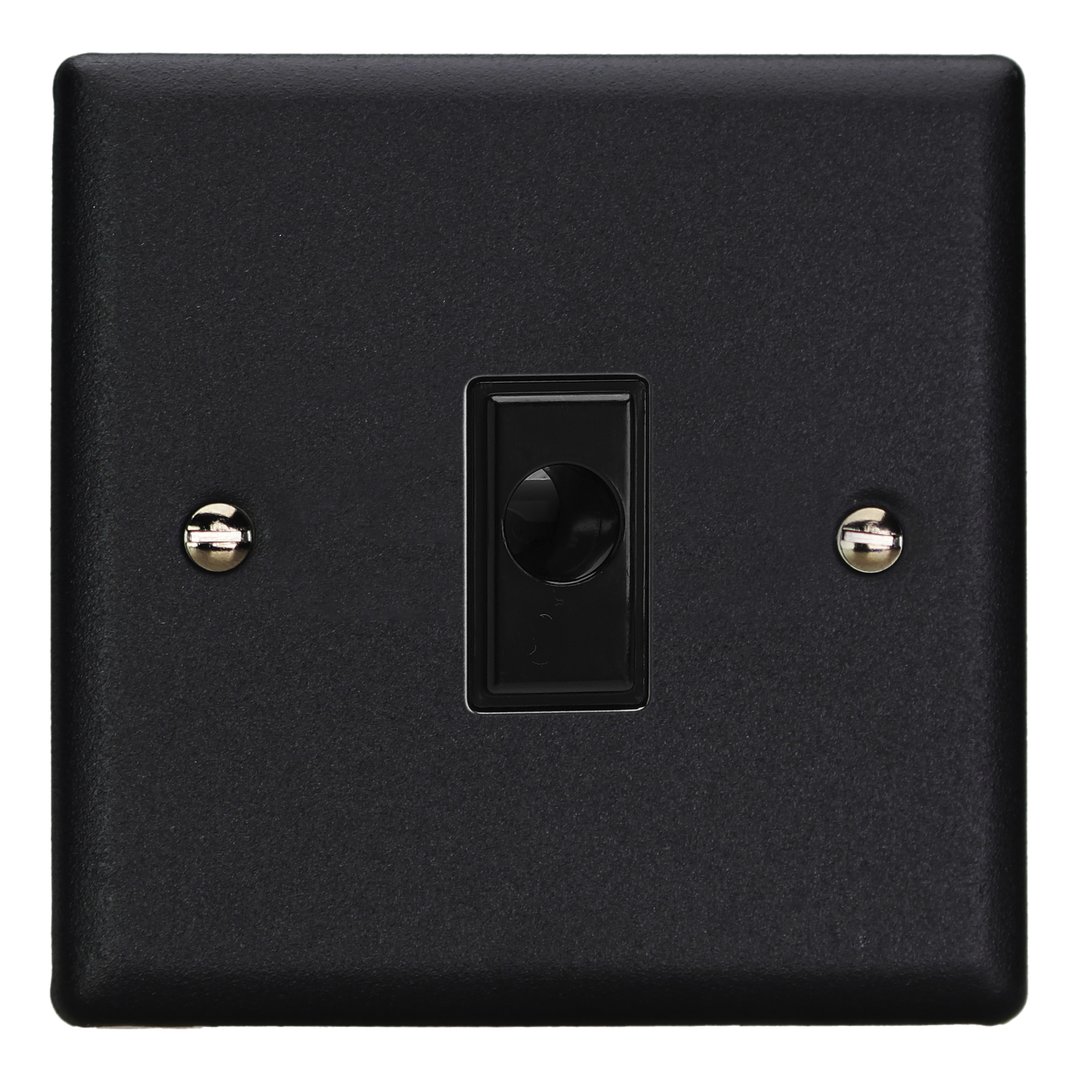

Product Description: 16A Flex Outlet Plate
Range: Urban/Vogue
Finish: Matt Black
Product Category: Other Items
Insert/Knob Colour: Black Insert
Barcode: 5021575031416

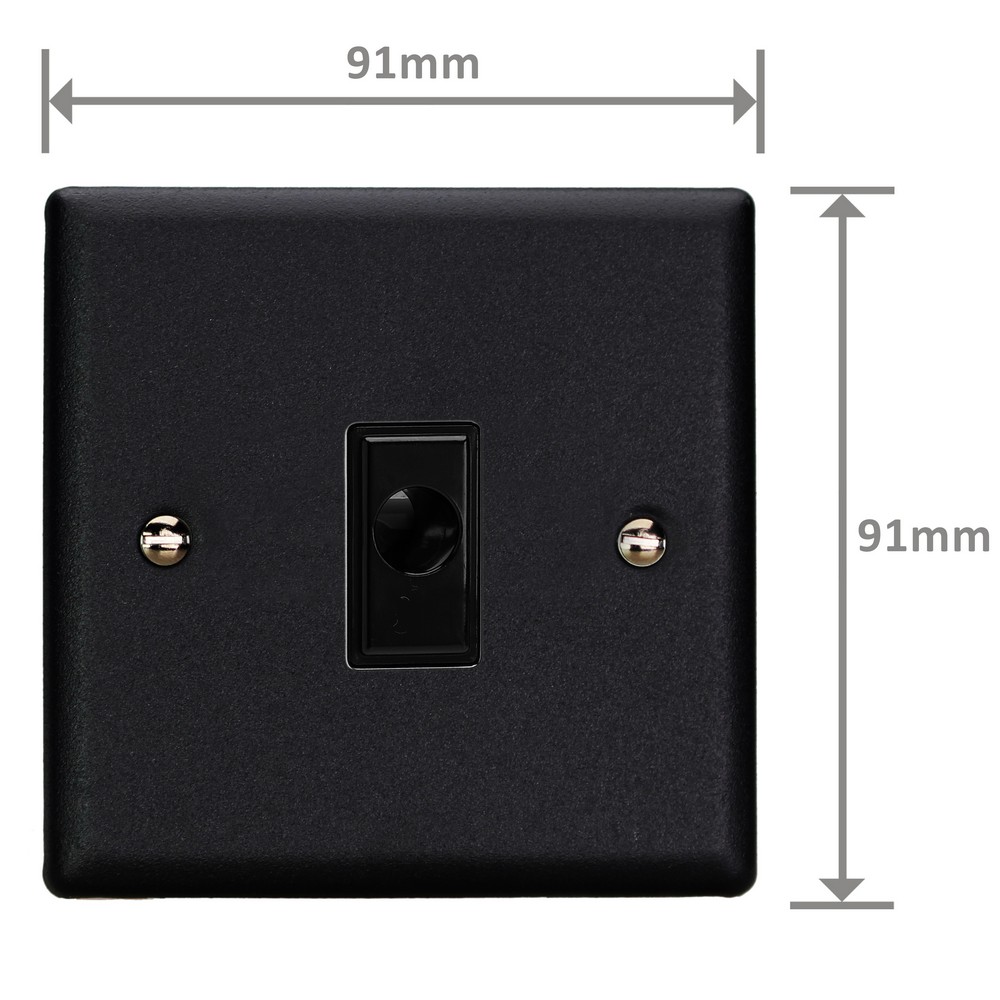

Dimensions: 91x91x34mm
Faceplate Depth: 8mm
Net Weight: 106g
Gross Weight: 108g
Fixing Centres: 60.3mm
Depth from Mounting Face: 17.2mm
Recommended Back Box Depth: 16mm
Operating Voltage: N/A
Maximum Load Rating: 16A
Maximum Current Rating: 16A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85389091
Product Features
Can be used in a number of different environments for many applications
Cable clamp
Bevelled edge faceplate
Comes with Iridium and Brass screws to suit Vogue and Urban collections
Urban/Vogue Collection
The Varilight Urban range is a premium collection, inspired by the latest trends in interior design, bringing an Urban edge to stylish spaces. Each finish is presented on a contemporary bevel-edge plate style, which is expertly manufactured in the UK to the highest standard. This product is also suitable to match with the Vogue Collection.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
