Data Sheet

Product Code: XDY5U2WS.JS

This product is made to order

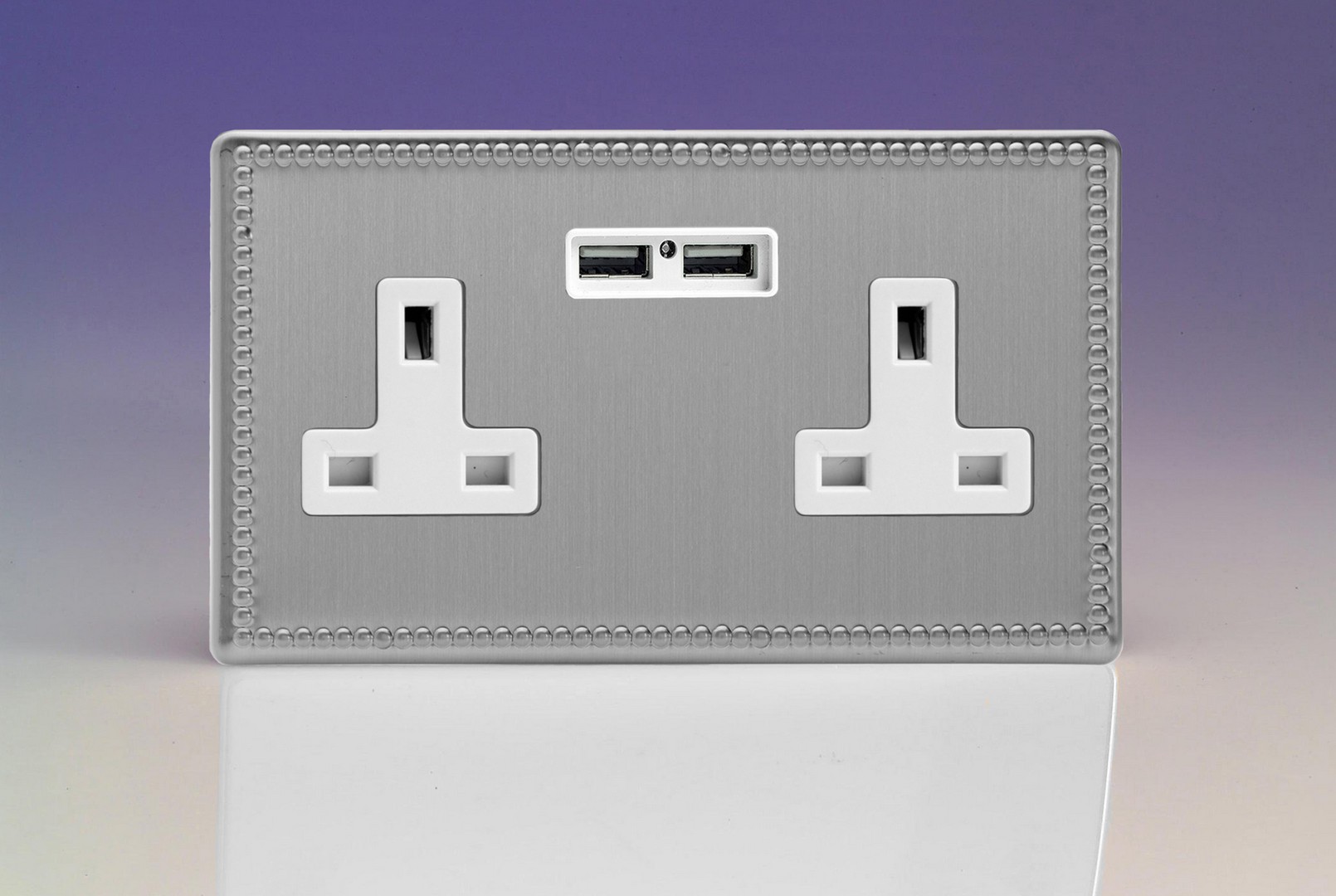

Product Description: 2-Gang 13A Unswitched Socket with 2 x 12W Shared USB A Charging Ports

Range: Jubilee

Finish: Brushed Steel

Product Category: Sockets with USB A Charging

Insert/Knob Colour: Brushed Steel/White Insert

Barcode: 5021575157420

Dimensions: 86x147x31mm

Faceplate Depth: 4mm

Net Weight: 220g

Gross Weight: 222g

Fixing Centres: 120.6mm

Depth from Mounting Face: 24mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 13A

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2

Commodity Code: 85366990

Declaration of Conformity

Product Features

  Ideal for charging iPad, iPhone, tablets, mobiles and cameras

  Features Varilight Smart Port technology making it suitable for all types of devices.

  The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed.

  Sleek, low-profile screwless faceplate

  Featuring dual earth terminals

Jubilee Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.

Brushed Steel Finish
The Jubilee Brushed Steel is a modern take on a classic style. Decorated with a beaded edge, it captures the charm and grace of neo-classical design with a contemporary twist.
