Data Sheet

Product Code: XK5U2AW

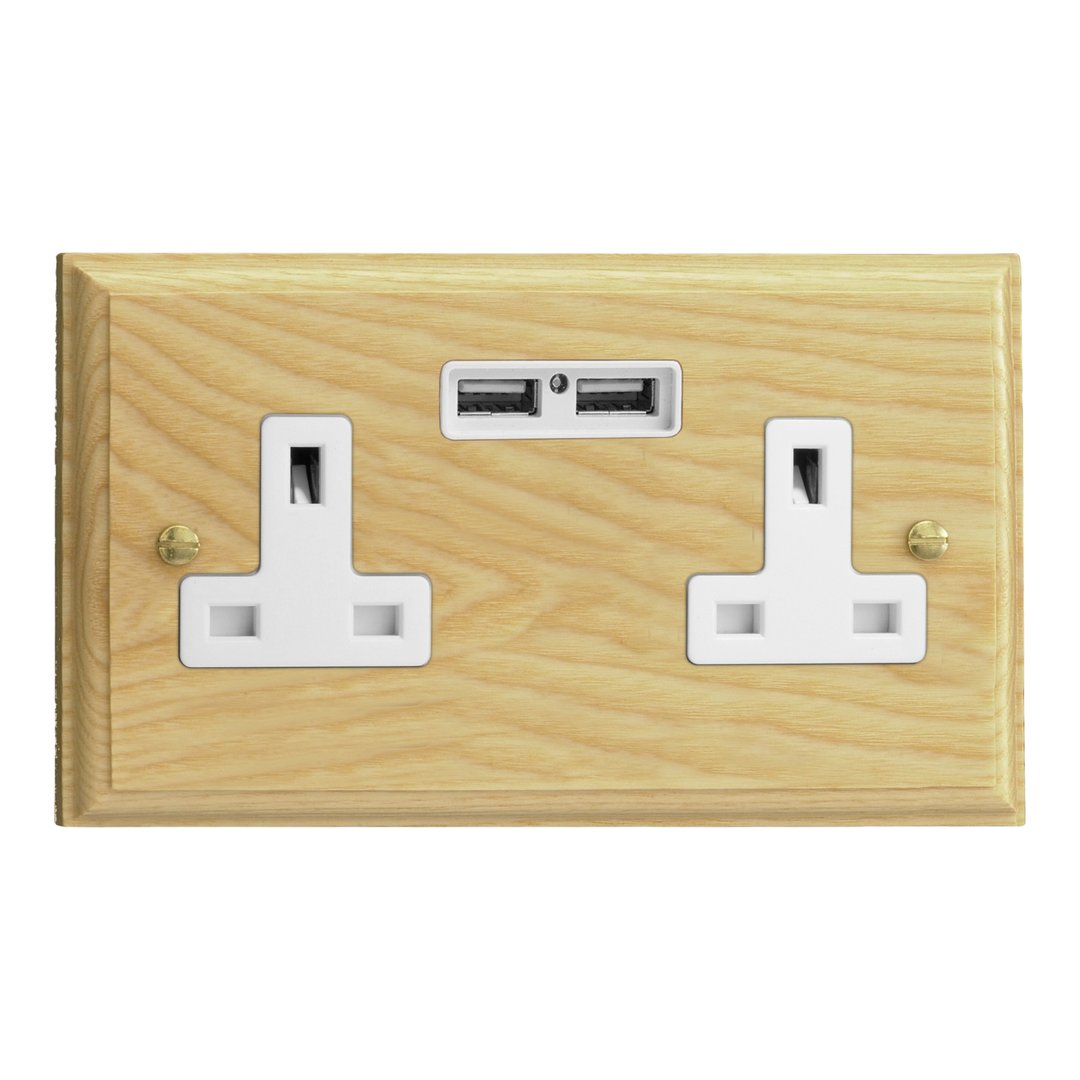

Product Description: 2-Gang 13A Unswitched Socket with 2 x 12W Shared USB A Charging Ports

Range: Kilnwood

Finish: Ash

Product Category: Sockets with USB A Charging

Insert/Knob Colour: White Insert

Barcode: 5021575966800

Dimensions: 96x156x28mm

Faceplate Depth: 15mm

Net Weight: 200g

Gross Weight: 202g

Fixing Centres: 120.6mm

Depth from Mounting Face:

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 13A

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2

Commodity Code: 85366990

Declaration of Conformity

Product Features

  2 x 12W shared USB-A charging ports

  Charges phones, tablets, cameras and more, no plug adaptor needed

  Both sockets stay free for other appliances

  Unswitched, for appliances that should never be switched off by mistake

  Dual earth terminals for a secure earth connection

  Solid timber faceplate, 15mm deep, fits a 25mm back box

Kilnwood Collection
The beautifully hand finished Kilnwood switches will give a unique distinctive style to any interior. All of the timber used in the Kilnwood range is sourced from the most eco-friendly and well managed forests, ensuring quality coupled with sustainability.

Ash Finish
The natural grain of the Ash finish means that each product features its own distinct patterns and textures, contributing to a completely unique look. Its light finish and natural tones make it easy to match with any contemporary interior.
