Data Sheet

Product Code: XDE45N.BS

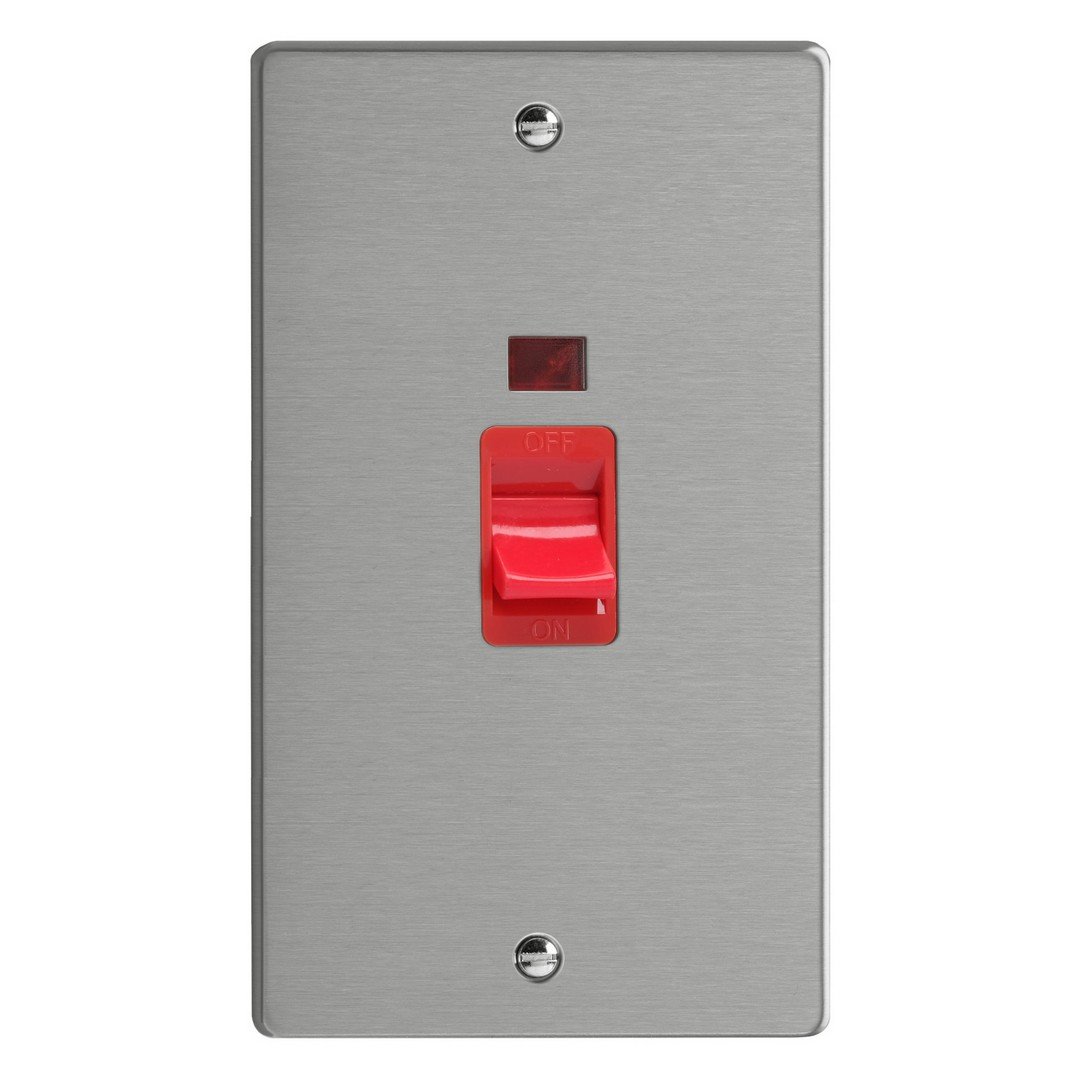

Product Description: 45A Cooker Switch with Neon (Vertical Twin Plate/ Red Rocker)

Range: Essential

Finish: Brushed Steel

Product Category: Cooker Switches

Insert/Knob Colour: Red Insert

Barcode: 5021575025491

Dimensions: 147x86x35mm

Faceplate Depth: 4mm

Net Weight: 226g

Gross Weight: 228g

Fixing Centres: 120.6mm

Depth from Mounting Face: 24.8mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Cooker Switch: 45A

Maximum Current Rating: 45A

Terminal (Live) Diameter: 6.4mm; Capacity: 2 x 10mm²

Terminal (Neutral) Diameter: 6.4mm; Capacity: 2 x 10mm²

Terminal (Earth) Diameter: 5.4mm; Capacity: 2 x 10mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85389091

Declaration of Conformity

Product Features

  Double pole switching

  Neon indicator light

  Double sized vertical plate

  Sleek, low-profile faceplate

Essential Collection
The Essential Collection is the go-to range for unbeatable value. Its sleek, low-profile faceplate features clean lines that add a modern, refined touch to any space, while the visible fixing screws create a simple yet practical aesthetic. The Essential Collection delivers on both affordability and quality, making it the perfect solution for any interior.

Brushed Steel Finish
The stunning Brushed Steel is perennially popular with interior designers and all those wanting accessories with timeless appeal. It is offered with Black or White inserts and matching steel fixing screws. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
