Data Sheet

Product Code: XDC5VSWS

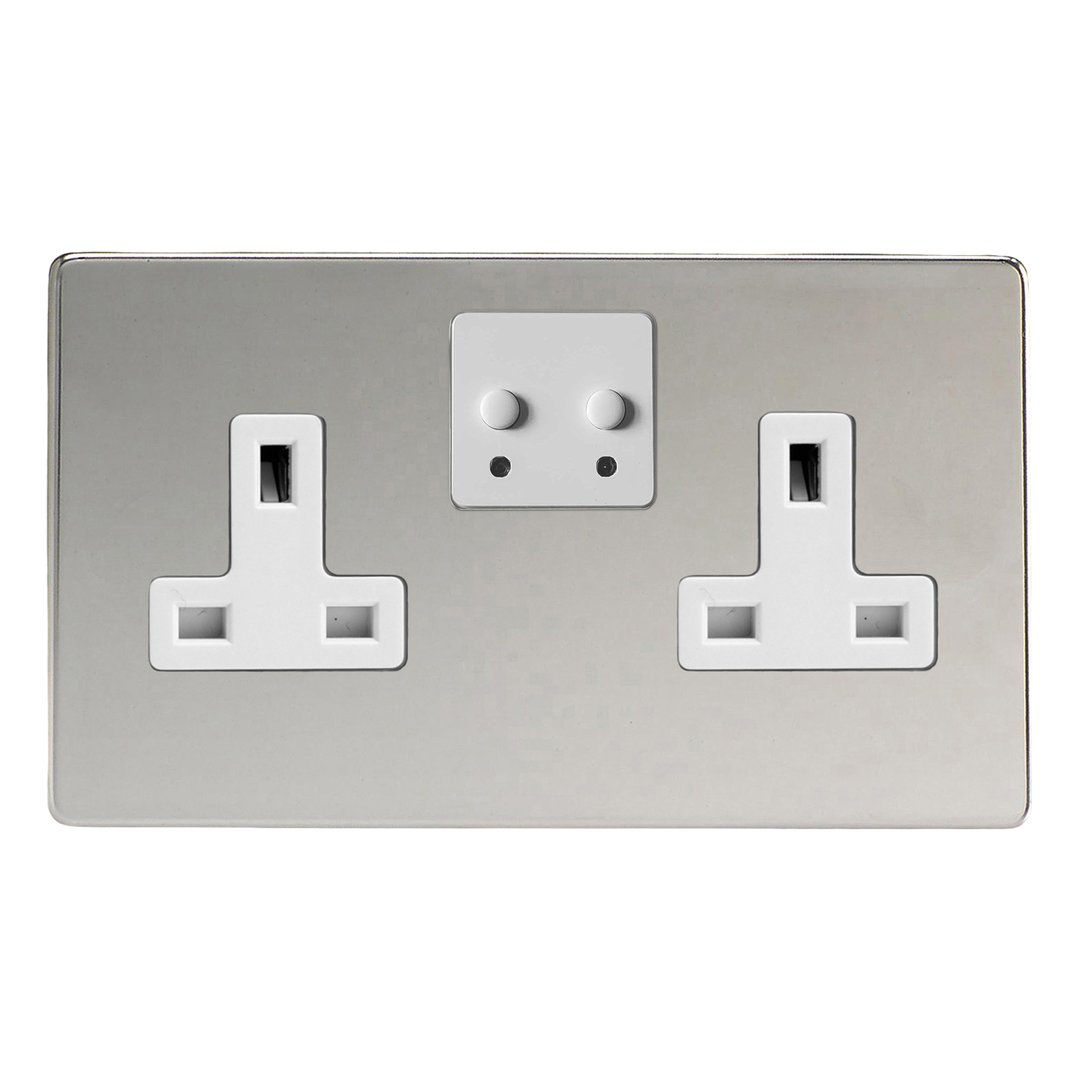

Product Description: 2-Gang 13A Wi-Fi Switched Socket for V-Pro Smart Supla

Range: Screwless

Finish: Polished Chrome

Product Category: Smart Sockets

Insert/Knob Colour: White Insert

Barcode: 5021575019643

Dimensions: 86x147x31mm

Faceplate Depth: 4mm

Net Weight: 220g

Gross Weight: 222g

Fixing Centres: 120.6mm

Depth from Mounting Face: 23.1mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 13A

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2

Commodity Code: 85366990

Declaration of Conformity

Product Features

  Controlled from the free Supla app on your phone or tablet

  Switch lamps and appliances remotely or on a timer, no more reaching behind the furniture

  Works with Alexa and Google Home

  Set schedules to save energy or make the house look occupied while you're away

  No hub or subscription required

  Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 35mm back box

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.

Polished Chrome Finish
Polished Chrome brings a bright, clean finish to any room. Choose from black or white inserts, supplied with matching polished chrome rockers.
