Data Sheet
Product Code: XDM5VSBS

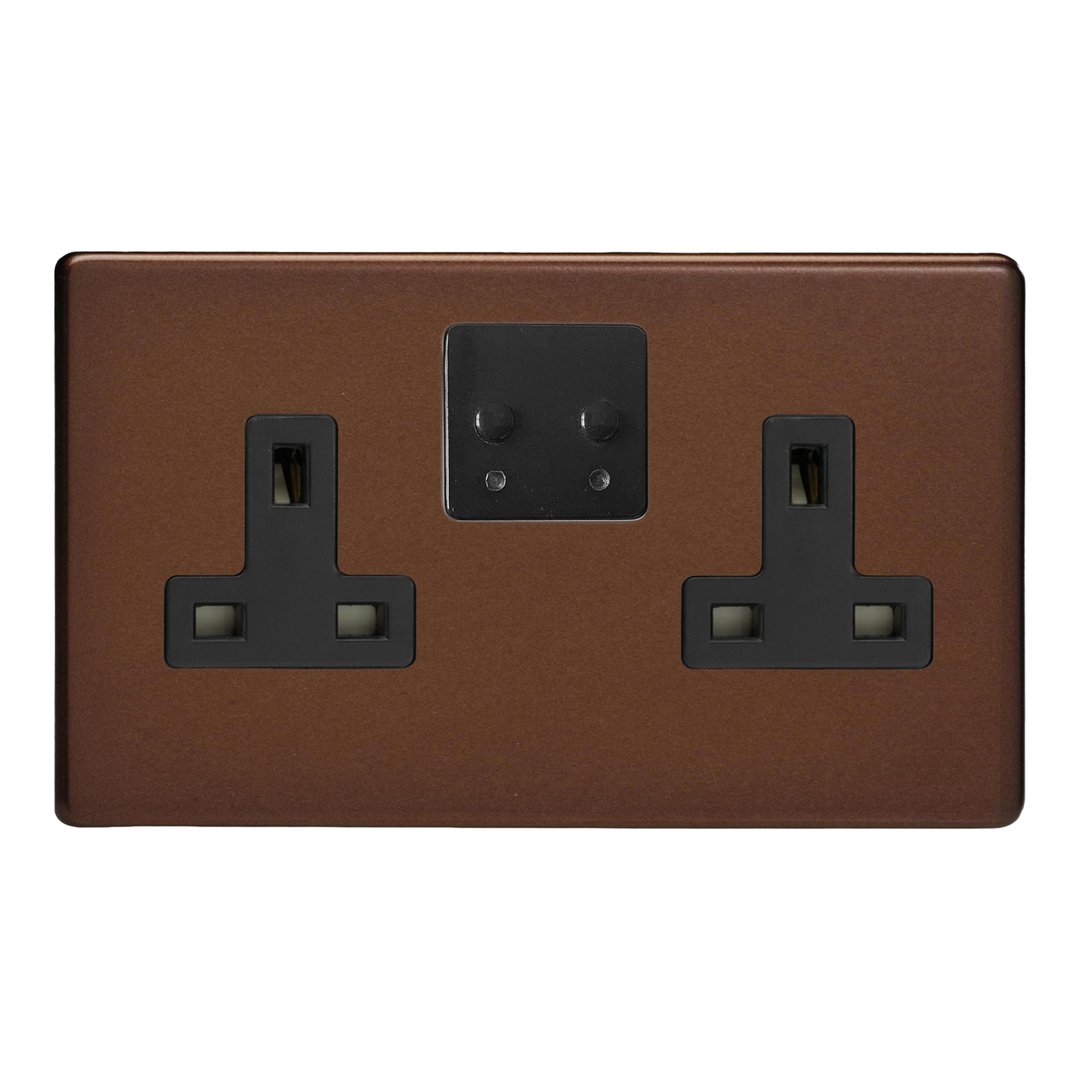

Product Description: 2-Gang 13A Wi-Fi Switched Socket for V-Pro Smart Supla
Range: Screwless
Finish: Mocha
Product Category: Smart Sockets
Insert/Knob Colour: Black Insert
Barcode: 5021575019674
Dimensions: 86x147x31mm
Faceplate Depth: 4mm
Net Weight: 220g
Gross Weight: 222g
Fixing Centres: 120.6mm
Depth from Mounting Face: 23.1mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 13A
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-2
Commodity Code: 85366990
Product Features
Controlled from the free Supla app on your phone or tablet
Switch lamps and appliances remotely or on a timer, no more reaching behind the furniture
Works with Alexa and Google Home
Set schedules to save energy or make the house look occupied while you're away
No hub or subscription required
Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 35mm back box
Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.
Mocha Finish
Offering a warm, cosy feel, the Mocha finish is paired with black inserts and iridium rockers, bringing added sophistication.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
09th October 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
