Data Sheet

Product Code: JYP252.DB

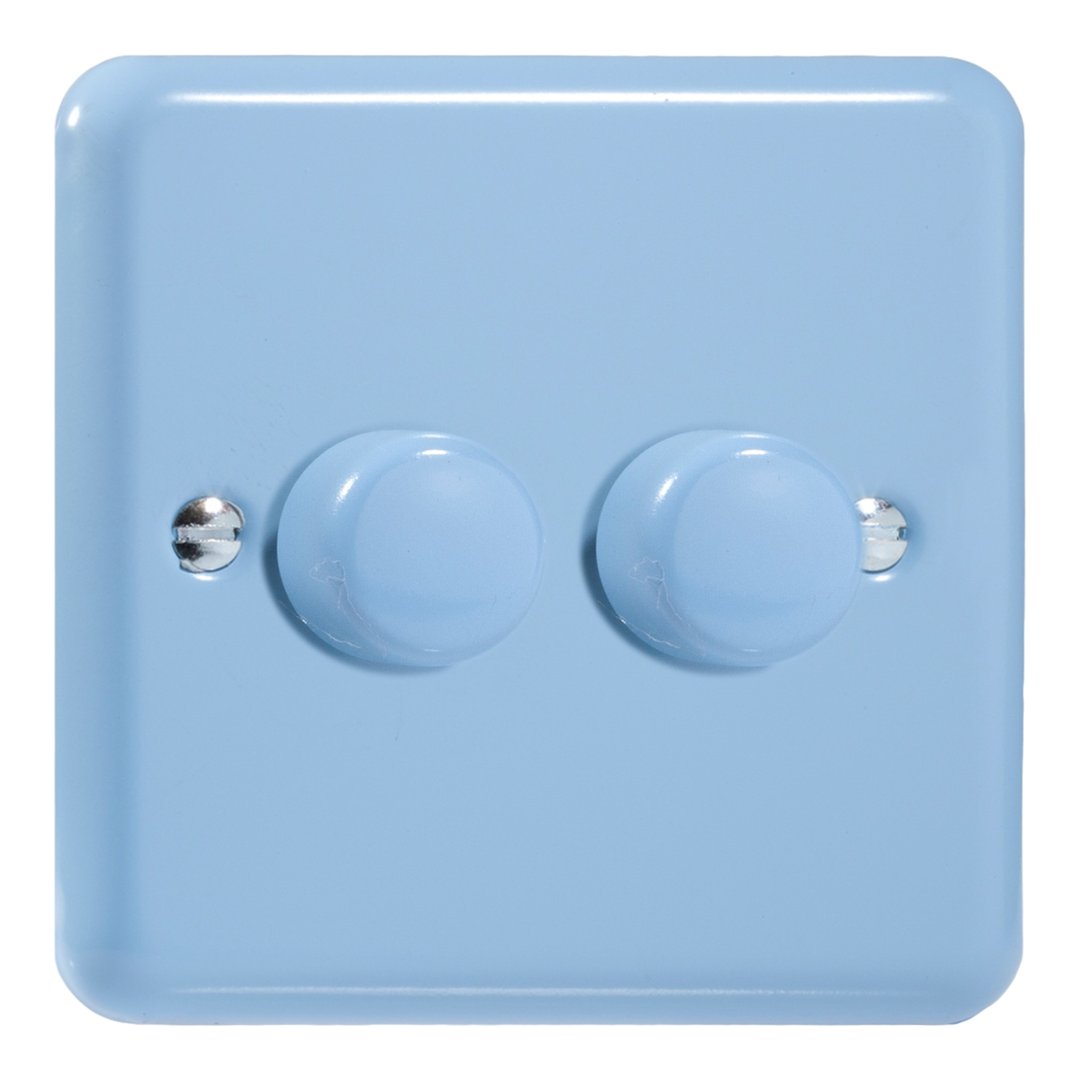

Product Description: 2-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 2 x 0-120W

Range: Lily

Finish: Duck Egg Blue

Product Category: LED Dimmers

Insert/Knob Colour: Duck Egg Blue Knobs

Barcode: 5021575316025

Dimensions: 86x86x47mm

Faceplate Depth: 7mm

Net Weight: 176g

Gross Weight: 178g

Fixing Centres: 60.3mm

Depth from Mounting Face: 17.7mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: LED: 120W

Maximum Current Rating: 0A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required.. Do not overload. Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-2-1

Commodity Code: 85365005

Declaration of Conformity

Product Features

  V-Pro intelligent dimming, the industry standard for LED

  Dims 0-120W of lighting per circuit with no minimum load and no maximum number of lamps

  Optimised for dimmable LEDs, no buzzing, no flickering

  Silent trailing edge dimming that is gentle on the load

  Soft start brings the lights up gently, with intelligent overload protection

  Adjustable minimum brightness and a choice of driving modes to get the best from any LED

  Push on/off, rotate to dim; settings are saved even after a power cut

  Rounded-edge faceplate, 7mm deep with chrome screws, fits a 25mm back box

Lily Collection
Add a splash of colour with The Lily range to brighten up any interior. The soft rounded edge of the metal faceplate, combined with a pastel or primary colour, presents a modern take on a retro style.

Duck Egg Blue Finish
Cool and calming, Duck Egg Blue is the pastel that never dates, perfect for bedrooms, bathrooms and coastal-style kitchens. Paired with white inserts and chrome screws.
