Click below to print the data sheet for JSP252
Further information:
Data Sheet
Product Code: JSP252
This product can also be made using our Matrix System, using the products WS2 + MJP120 x 2
Product Description: 2-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 2 x 0-120W
Range: Value
Finish: Matt Chrome
Product Category: LED Dimmers
Insert/Knob Colour: Brushed Steel Knob
Barcode: 5021575591026

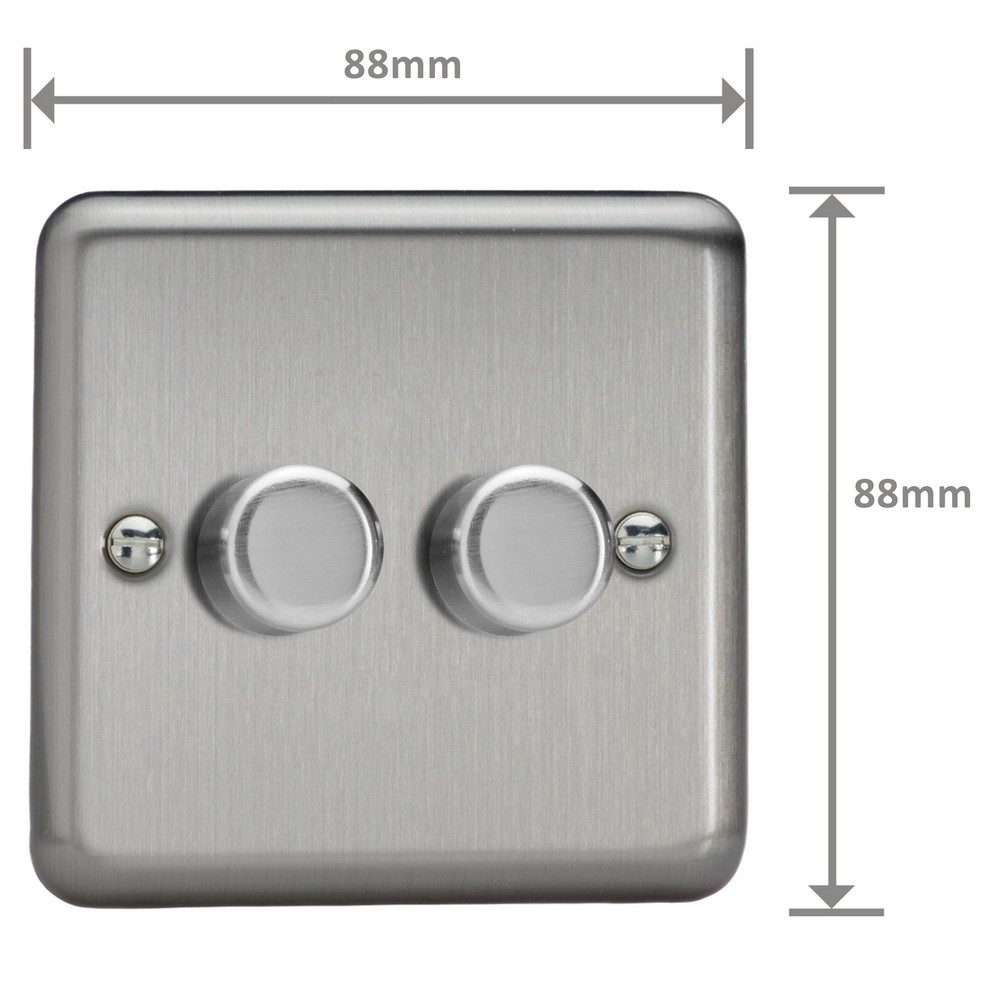

Dimensions: 88x88x47mm
Faceplate Depth: 7mm
Net Weight: 176g
Gross Weight: 178g
Fixing Centres: 60.3mm
Depth from Mounting Face: 17.7mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED: 120W
Maximum Current Rating: 0.9A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs. Do not use masking tape on any Decorative products, or install on damp plaster.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required.. Do not overload. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
Product Features
V-Pro intelligent dimming technology
Soft start feature and intelligent overload protection
Adjustable minimum brightness setting and choice of driving modes
Curved edge faceplate
Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.
Matt Chrome Finish
Matt Chrome offers unbeatable value for those seeking a beautiful Decorative finish at a great price point. Choose between black, white or matching metal rockers. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
18th February 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
