Data Sheet
Product Code: JYDP254.CU
This product can also be made using our Matrix Syst

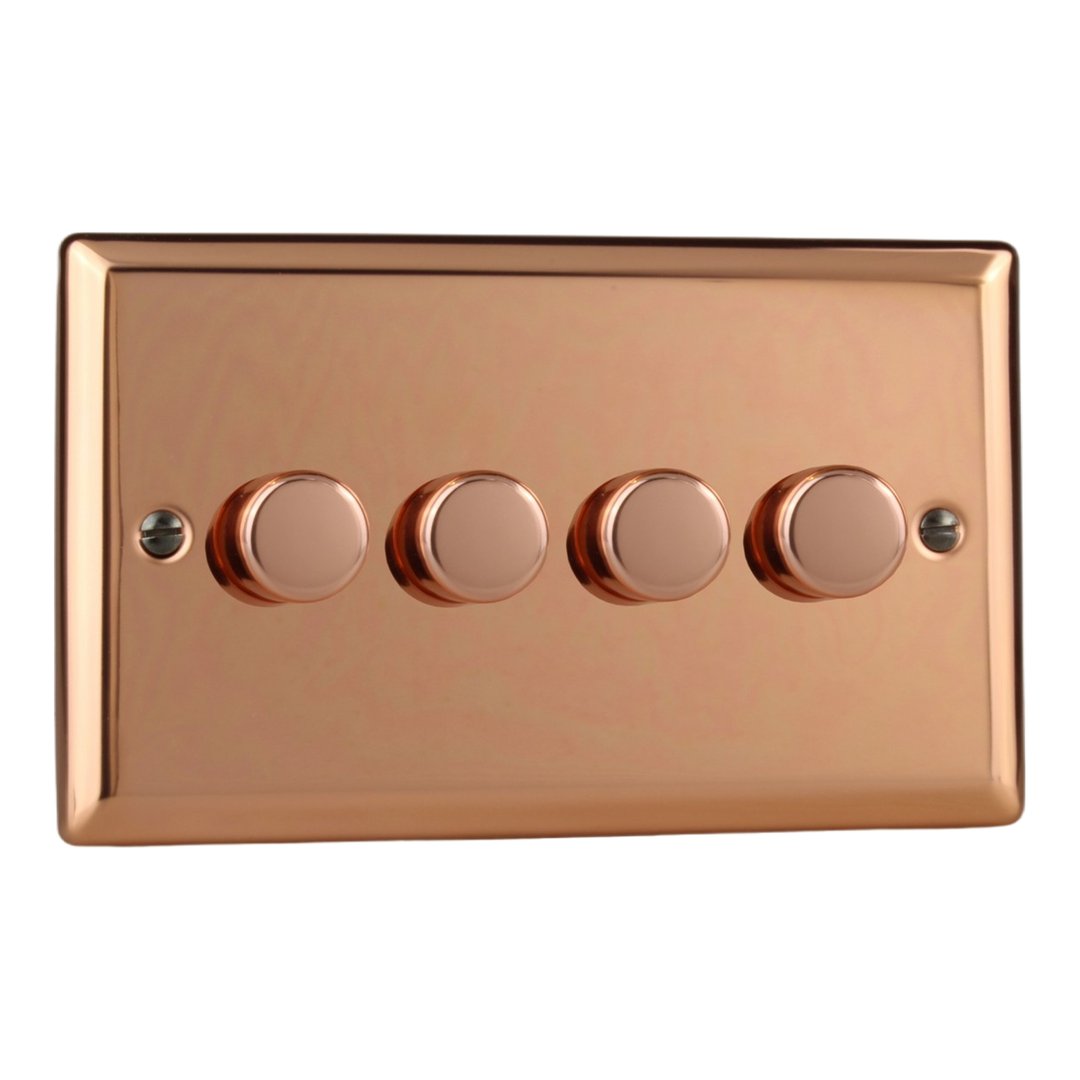

Product Description: 4-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 4 x 0-120W (Twin Plate)
Range: Urban
Finish: Polished Copper
Product Category: LED Dimmers
Insert/Knob Colour: Copper Knob
Barcode: 5021575002614
Dimensions: 91x150x47mm
Faceplate Depth: 8mm
Net Weight: 340g
Gross Weight: 342g
Fixing Centres: 120.6mm
Depth from Mounting Face: 18.1mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED: 120W
Maximum Current Rating: 0A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required.. Do not overload. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
Product Features
V-Pro intelligent dimming, the industry standard for LED
Dims 0-120W of lighting per circuit with no minimum load and no maximum number of lamps
Optimised for dimmable LEDs, no buzzing, no flickering
Silent trailing edge dimming that is gentle on the load
Soft start brings the lights up gently, with intelligent overload protection
Adjustable minimum brightness and a choice of driving modes to get the best from any LED
Push on/off, rotate to dim; settings are saved even after a power cut
Bevel-edge faceplate, 8mm deep with iridium screws, fits a 25mm back box
Urban Collection
The Varilight Urban range is a premium collection, inspired by the latest trends in interior design, bringing an Urban edge to stylish spaces. Each finish is presented on a contemporary bevel-edge plate style.
Polished Copper Finish
Bring an elegant warmth to any room with Polished Copper accessories. A choice of black or white inserts makes this finish a versatile choice.
Rear View:
