Data sheet: JBDP254
Data sheet
JBDP254 4-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 4 x 0-120W (Twin Plate)
Quad V-Pro Rotary 2-Way LED Dimmer 4 x 0-120W
Product features
- V-Pro intelligent dimming, the industry standard for LED
- Dims 0-120W of lighting per circuit with no minimum load and no maximum number of lamps
- Optimised for dimmable LEDs, no buzzing, no flickering
- Silent trailing edge dimming that is gentle on the load
- Soft start brings the lights up gently, with intelligent overload protection
- Adjustable minimum brightness and a choice of driving modes to get the best from any LED
- Push on/off, rotate to dim; settings are saved even after a power cut
- Bevel-edge faceplate, 8mm deep with brass screws, fits a 25mm back box
Product
- Product code
- JBDP254
- Category
- LED Dimmers
- Range
- Classic
- Finish
- Brushed Brass
- Insert / knob colour
- Brass Knob
- Barcode
- 5021575011319
Size and fitting

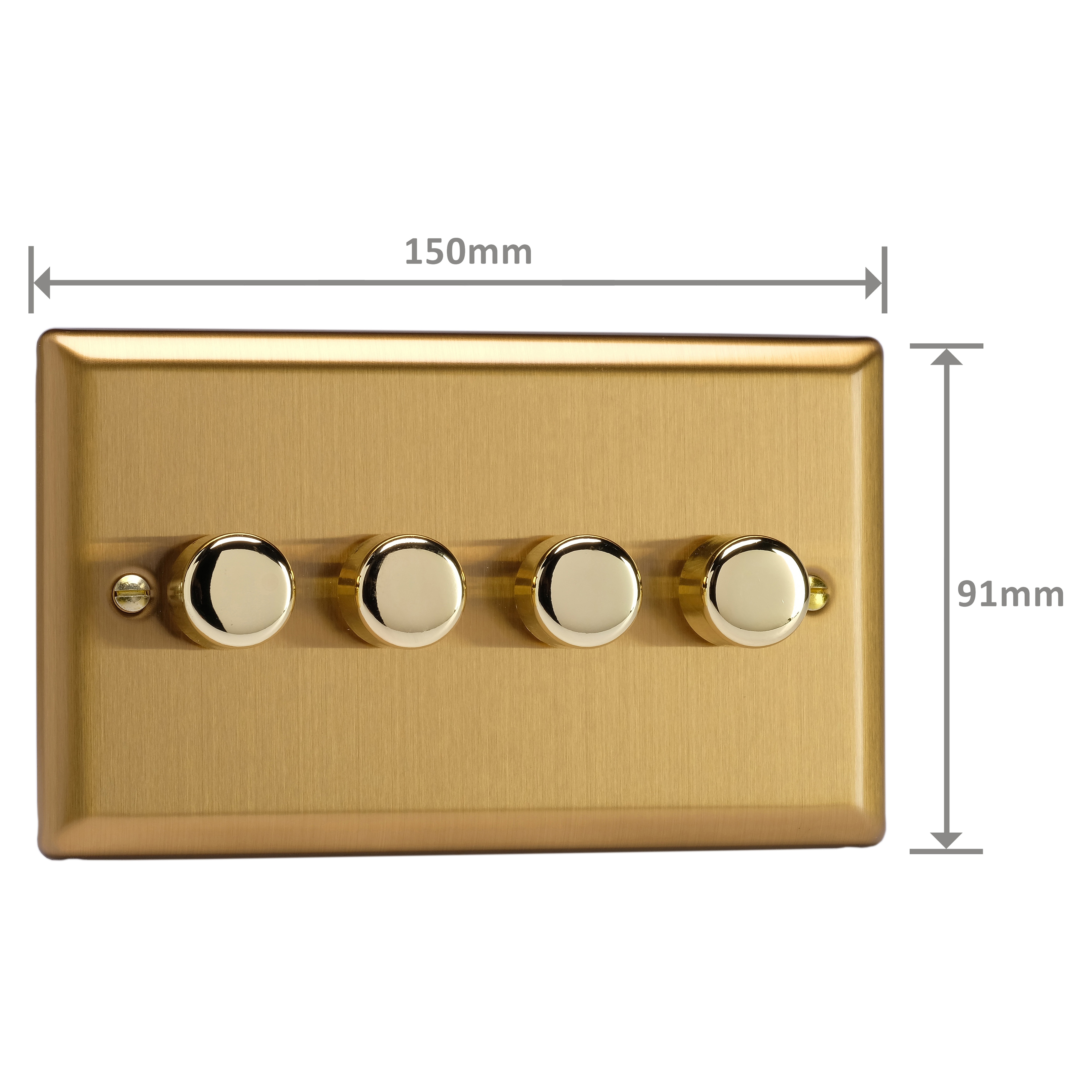

- Dimensions
- 91x150x47mm
- Faceplate depth
- 8mm
- Fixing centres
- 120.6mm
- Depth from mounting face
- 18.1mm
- Recommended back box depth
- 25mm
- Net weight
- 340g
- Gross weight
- 342g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- LED: 120W
- Terminal (Live)
- 3.2mm, capacity 3 x 1.5mm²
- Terminal (Earth)
- 3.3mm, capacity 3 x 1.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic lighting circuits including many dimmable LEDs. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required. Do not overload. Product Must Be Earthed.
- Applicable safety standard
- BS EN 60669-2-1
- Commodity code
- 85365005
Classic collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Brushed Brass finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts and rockers are available, or choose polished brass rockers for an added touch of class.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 18th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
