Data Sheet
Product Code: JGE101
Product Description: 1-Gang 1-Way V-Pro Multi-Point Remote/Tactile Touch Control Master LED Dimmer 1 x 0-100W
Range: Classic
Finish: Georgian Brass
Product Category: LED Dimmers
Insert/Knob Colour: Brass Button
Barcode: 5021575542127

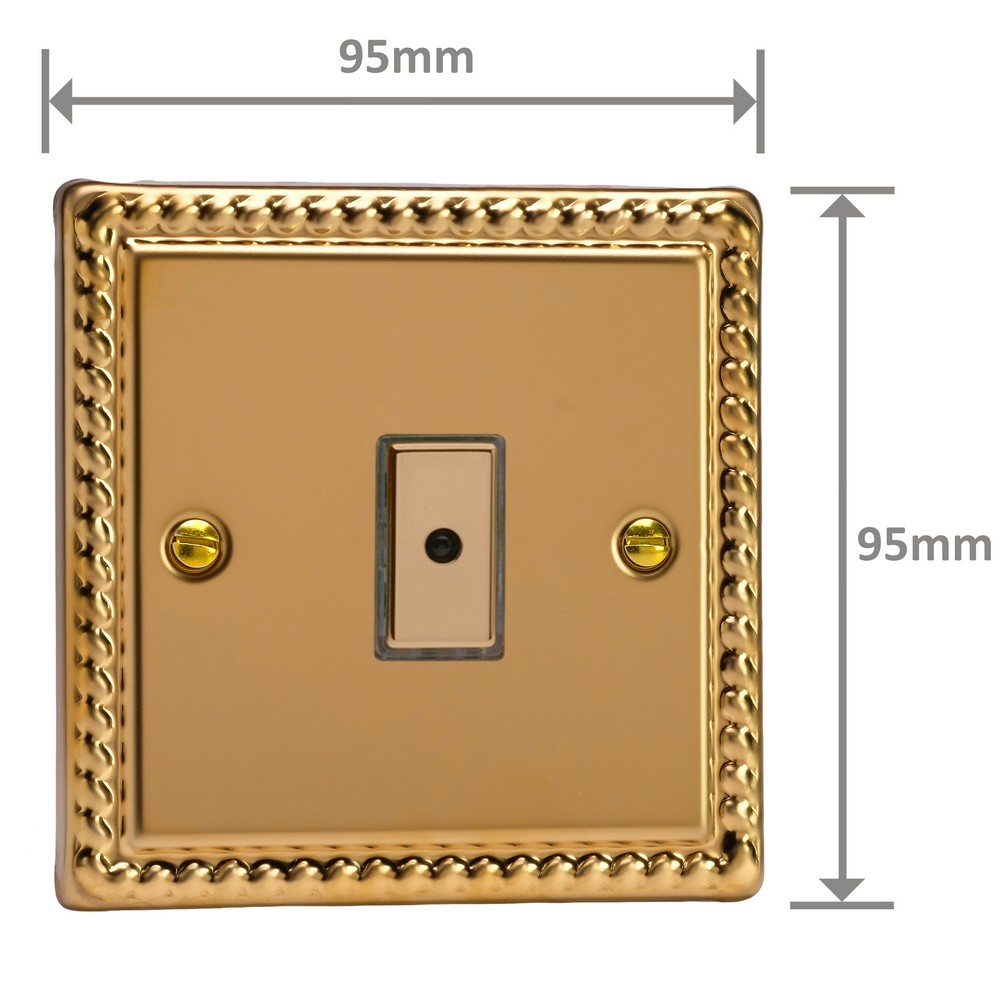

Dimensions: 95x95x27mm
Faceplate Depth: 7mm
Net Weight: 136g
Gross Weight: 138g
Fixing Centres: 60.3mm
Depth from Mounting Face: 15.4mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED; 100W
Maximum Current Rating: 1.1A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
V-Pro intelligent dimming technology
Tactile touch control or remote control from dedicated handset or spare button on an existing handset (e.g. TV remote)
Soft start feature and intelligent overload protection
1-Way or multi-Way when used with Multi-Point dimming Companion Controller unit(s)

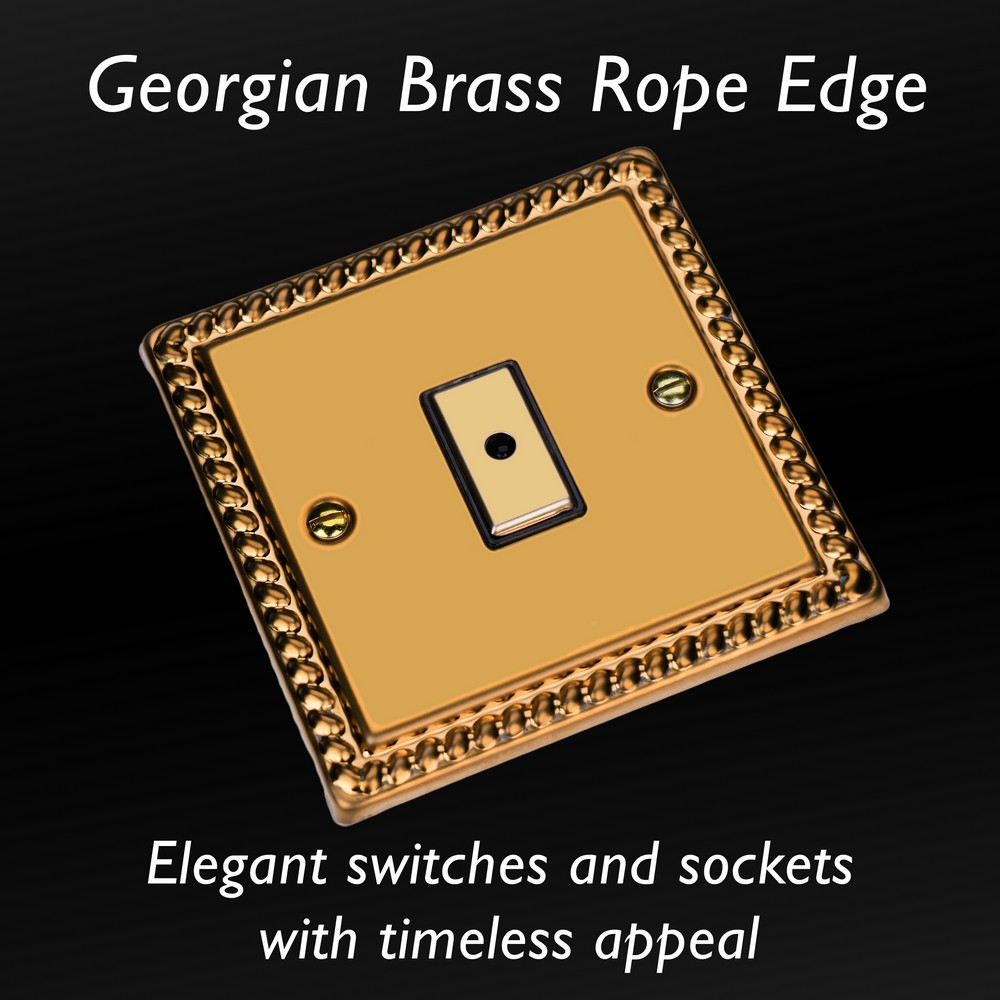

Roped edge faceplate
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.Georgian Brass Finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Note: Some LED lamps are not designed for electronic dimmer switches and may remain illuminated even when a dimmer switch is turned off. This can be corrected using one Varilight LEDFix load regulator per circuit (part number YAGF-P).
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 10th December 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
