Data sheet: JDYDP254IS.PD
Data sheet

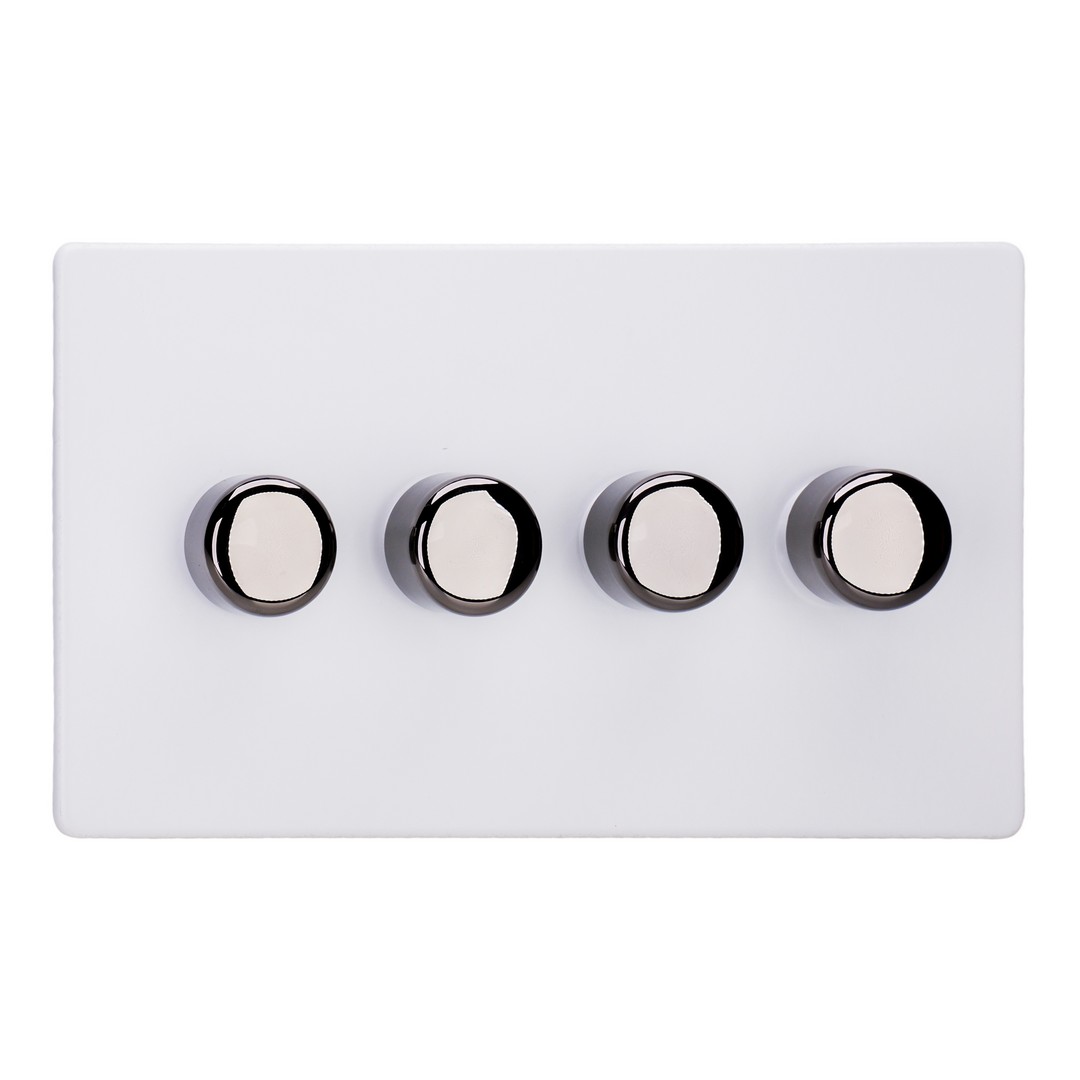

JDYDP254IS.PD 4-Gang 2-Way V-Pro Push On/Off Rotary LED Dimmer 4 x 0-120W (Twin Plate)
Quad V-Pro Rotary 2-Way LED Dimmer 4 x 0-120W
Product features
- V-Pro intelligent dimming, the industry standard for LED
- Dims 0-120W of lighting per circuit with no minimum load and no maximum number of lamps
- Optimised for dimmable LEDs, no buzzing, no flickering
- Silent trailing edge dimming that is gentle on the load
- Soft start brings the lights up gently, with intelligent overload protection
- Adjustable minimum brightness and a choice of driving modes to get the best from any LED
- Push on/off, rotate to dim; settings are saved even after a power cut
- Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 35mm back box
Product
- Product code
- JDYDP254IS.PD
- Category
- LED Dimmers
- Range
- Screwless
- Finish
- Primed Paintable
- Insert / knob colour
- Iridium Knobs
- Barcode
- 5021575034349
Size and fitting
- Dimensions
- 86x147x48mm
- Faceplate depth
- 4mm
- Fixing centres
- 120.6mm
- Recommended back box depth
- 35mm
- Net weight
- 410g
- Gross weight
- 412g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- LED: 120W
- Maximum current rating
- 0.9A
- Terminal (Live)
- 3.2mm, capacity 3 x 1.5mm²
- Terminal (Earth)
- 3.3mm, capacity 3 x 1.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic lighting circuits including many dimmable LEDs. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.
- Applicable safety standard
- BS EN 60669-2-1
- Commodity code
- 85365005
Screwless collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.
Primed Paintable finish
Primed metal faceplates are supplied ready to paint, so that customers can choose colours to coordinate perfectly with their decor, creating a completely unique product that stands out from the crowd.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 18th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
