Product Description: 3-Gang Tactile Touch Control Dimming Companion Controller for use with Multi-Point Master on 2-Way Circuits (Twin Plate)
Range: Screwless
Finish: Brushed Steel
Product Category: LED Dimmers
Insert/Knob Colour: Steel Buttons
Barcode: 5021575162257

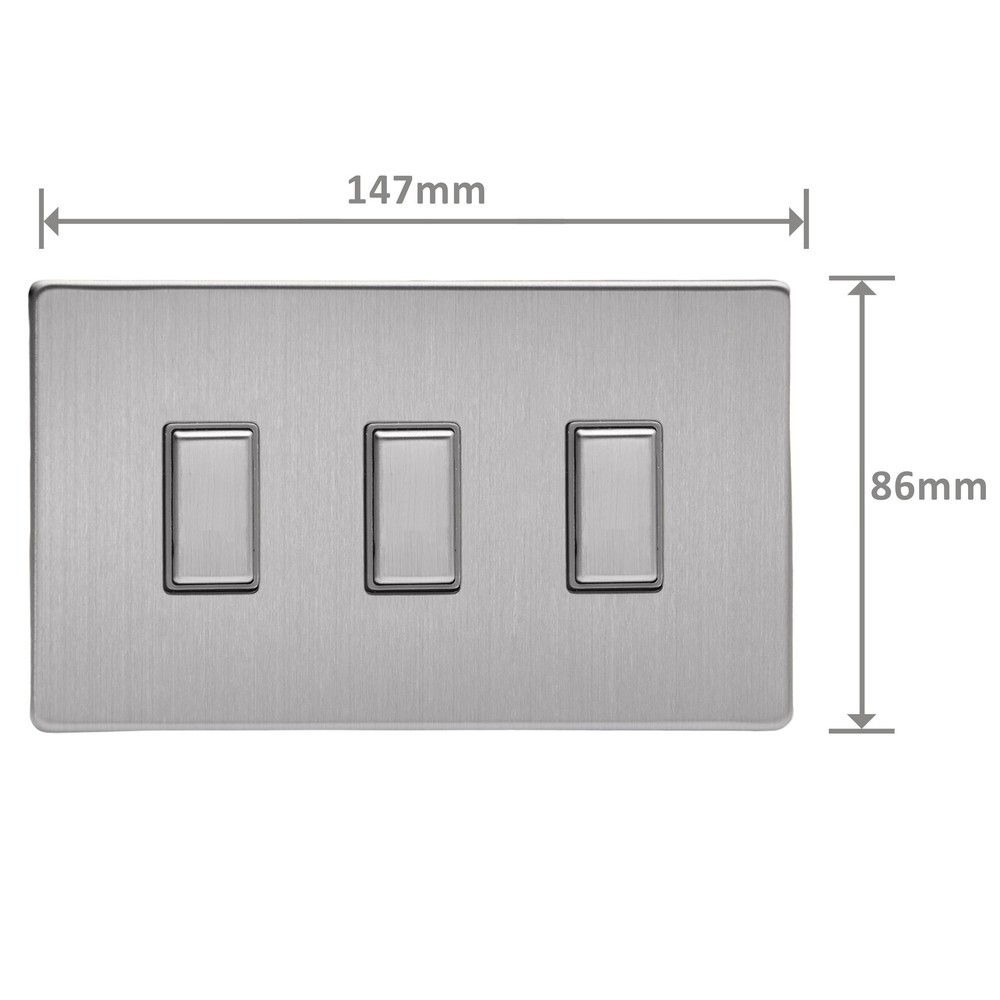

Dimensions: 86x147x27mm
Faceplate Depth: 4mm
Net Weight: 199g
Gross Weight: 202g
Fixing Centres: 120.6mm
Depth from Mounting Face: 21.6mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Refer to Master Dimmer
Maximum Current Rating: Refer to Master Dimmer
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
V-Pro intelligent dimming technology
Soft start feature and intelligent overload protection
Use with touch & remote master Multi-Point dimmers in multi-Way circuits
Sleek, low-profile screwless faceplate
Screwless Collection
Each finish is presented on low profile screwless faceplate, with hidden fixings contributing to an understated aesthetic. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.Brushed Steel Finish

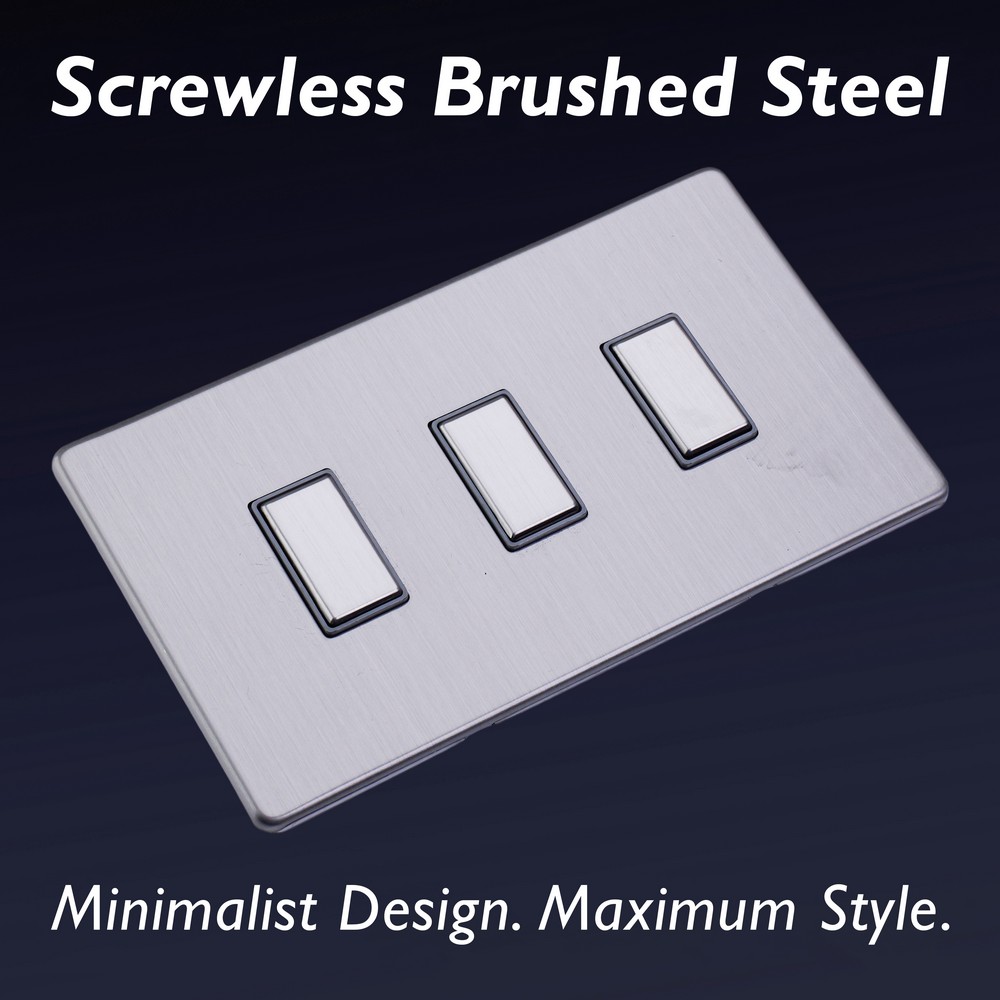

Stunning Brushed Steel is perennially popular with interior designers and all those wanting accessories with timeless appeal. Paired with black or white inserts and matching brushed steel rockers. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic lighting circuits including many dimmable LEDs.
Note: Some LED lamps are not designed for electronic dimmer switches and may remain illuminated even when a dimmer switch is turned off. This can be corrected using one Varilight LEDFix load regulator per circuit (part number YAGF-P).
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, TRIAC dimmable loads, wire-wound or toroidal transformers or electric motors. Do not overload. Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
