Data Sheet
Product Code: HQ44W

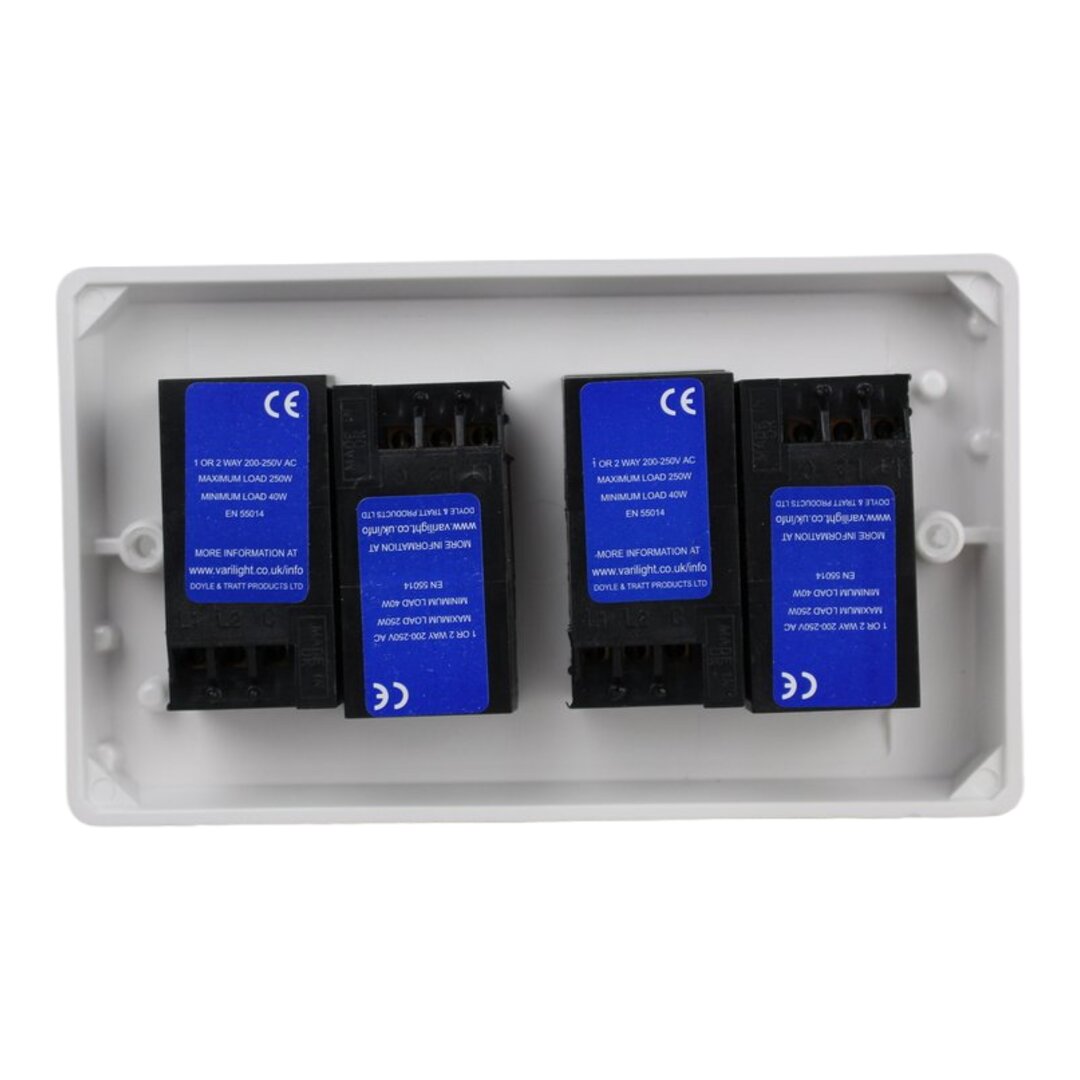

Product Description: 4-Gang 2-Way V-Dim Push On/Off Rotary Dimmer 4 x 40-250W (Twin Plate)
Range: White
Finish: White Plastic
Product Category: Halogen Dimmers
Insert/Knob Colour: White Knob
Barcode: 5021575400502
Dimensions: 85x145x46mm
Faceplate Depth: 15mm
Net Weight: 319.87g
Gross Weight: 320g
Fixing Centres: 120.6mm
Depth from Mounting Face: 15.5mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Halogen; 250W
Maximum Current Rating: 1.1A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Product Features
V-Dim dimming technology
Ideal for incandescent lighting including mains and low voltage halogen
Durable white plastic
Intended Applications: Indoor Use Only. Domestic lighting circuits.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload.
Applicable Safety Standard: BS 5518
Commodity Code: 85365007
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 10th December 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
